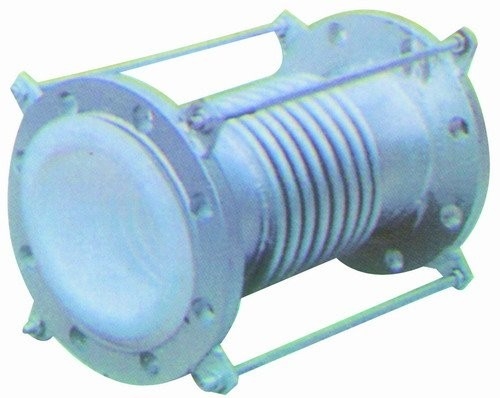

sales widely flexible rubber pipe compensator

Large Image : sales widely flexible rubber pipe compensator Get Best Price

Product Details:

Certification:	ISO
Material:	Carbon Steel
Technics:	Forged
Type:	flange
Connection:	Flange
Shape:	Equal
Head Code:	round
name:	rubber pipe compensator
rubber material:	NR/EPDM/NBR
flange material:	carbon steel/cast steel
standard:	DIN/JIS/ANSI
payment:	T/T,L/C,and so on
color:	black
packing:	plastic bags,cartoon box,wooden box
pressure:	PN10/16/25
temperature:	-15---115
service:	customed

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	Paypal,T/T, L/C
Supply Ability:	1000 Set/Sets per Week

Contact Now

Detailed Product Description

rubber pipe compensator
competitive price
Working pressure:0.6Mpa/1.0Mpa/1.6Mpa/2.5Mpa

rubber pipe compensator

is used widely in key project of chemical industry, construction, water supply, drainage, petroleum, light and heavy industry, refrigeration, health, water heating, fireproof and power etc.

Functions:

It can made horizontal, axial and angular displacement when being installed. It can’t be restricted by the obstruction of pipe and the non-parallel of flange.
It can reduce noise passed through structure when it works and has strong shock absorption.

Technical conditions:

type Item	WTX-1	WTX-11	WTX-111
Working pressure Mpa ( Kg.f/cm²)	1.0(10)	0.6(6)	1.special requirement for working temperature 2.make note before order
Vacuum KPa(mmHg)	86.7(650)	53.3(400)
Applicable temperatures	-15~115
Applicable media	Water, seawater, steam, oil, acid etc.

Main connection dimension:

DN big*small	Length	Axial displacement		Horizontal displacement	DN big*small	Length	Axial displacement		Horizontal displacement
DN big*small	Length	extension	compression	Horizontal displacement	DN big*small	Length	extension	compression	Horizontal displacement
80*40	180	20	30	45	200*100	200	22	30	40
80*50	180	20	30	45	200*150	200	22	30	40
RO*65	180	20	30	45	200*125	220	25	35	40
100*50	180	20	30	45	250*200	220	25	35	40
100*65	180	20	30	45	300*200	220	25	35	40
100*80	180	20	30	45	300*250	220	25	35	40
125*65	180	20	30	45	350*200	220	25	35	40
150*50	190	20	30	45	350*300	220	25	38	35
150*80	190	20	30	45	400*350	120	25	38	35
125*80	200	23	30	45	500*400	230	28	38	35
115*100	200	23	30	45	600*400	240	28	38	35
150*100	200	23	30	45	600*500	240	28	38	35
