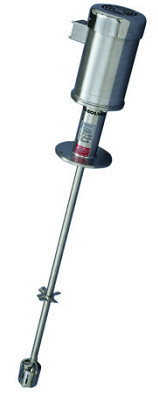

High strength 220V, 230V 30KW DL4-30 / 150 liquid mixing top entry agitator for Paint

Large Image : High strength 220V, 230V 30KW DL4-30 / 150 liquid mixing top entry agitator for Paint Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	GEP
Certification:	ISO
Model Number:	DL4-30/150
packing:	plastic inside, wooden case outside
certificate:	ISO9001:2008 SGS AAA
material quality:	SUS304, SUS316, SUS316L, etc.
weight:	350kg
impeller diameter:	460mm
shaft diameter:	80mm
speed:	150rpm
power:	30KW
Warranty:	one year
Weight:	350kg
Power(W):	30KW
Voltage:	220V, 230V, 380V, 410V, etc.
Max. Loading Capacity:	0~5000L
Additional Capabilities:	milling, granulating, coating,adhesive, etc.
Application:	liquid,liquid with suspended solid,viscous fluid
Product Type:	Paint
Mixer Type:	Agitator
Condition:	New

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	Paypal,T/T, L/C

Contact Now

Detailed Product Description

High Light:

top entry mixer

industrial mixing equipment

High strength 220V, 230V 30KW DL4-30 / 150 liquid mixing top entry agitator for Paint

1.top entry liquid mixing agitator
2. ISO9001:2008 SGS AAA

3.gear drive

Feature:

This series DL4-30/150 top entry liquid mixing agitator adopts high strength and hard-toothed surface of gear to transmit, having the feature of stable and reliable operation, compact appearance, long service life and so on.

Main Technical Standards:

Series	Speed (rpm)	Power (KW)	Installation Size
			A	B	N-Φz	D	D1	D2	S	h
DL1	150(4P)	0.55	582	300	8-Φ18	285	240	185	35	20
		0.75
	100(6P)	0.55
		0.75
DL2	150(4P)	1.1	622	345	8-Φ18	340	295	240	50	24
		1.5
		2.2
		3
		4
	100(6P)	1.1
		1.5
		2.2
DL3	150(4P)	5.5	681	400	12-Φ18	435	400	325	65	30
		7.5
		11
		15
