6KW-9KW Lightweight Portable Marine Diesel Generator Set 1500r/m - 1800r/m
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | portable marine generator,3 phase diesel generator |
||
|---|---|---|---|

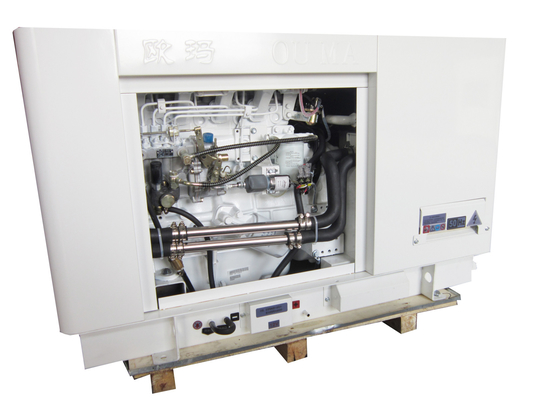

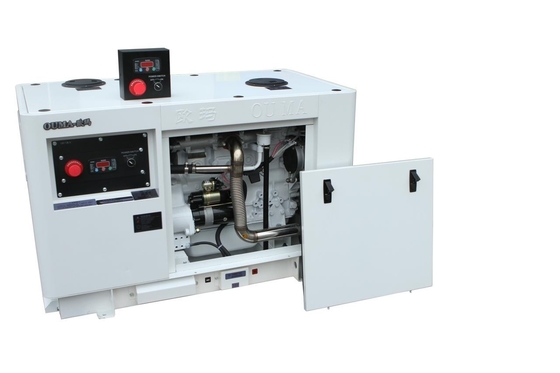

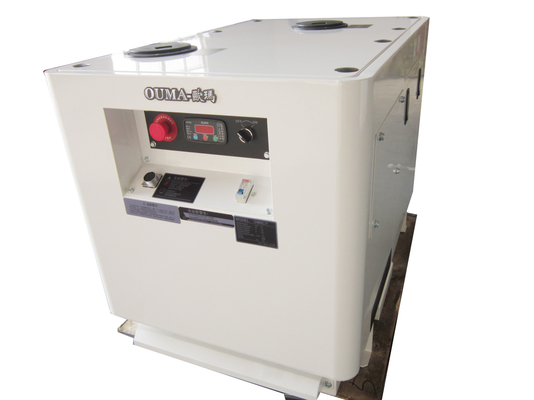

Lightweight Portable Marine Diesel Generator Set 1500r/m - 1800r/m 9KW Diesel Engine
Quick Detail:
| Product name: |
Marine Diesel Generator
|
Brand Name: |
OUMA
|
Model Number: |
OM6CYZ3
|
| Output Type: |
AC Three Phase
|
Speed: |
1500/1800rpm
|
Frequency: |
50/60hz
|
| Rated Power: |
6KW-9KW
|
Rated Voltage: |
400V/230V 416V/240V
|
Rated Current: |
10.8A-16.2A
|
Description:
Excellent power rating 6KW generators with Chinese first top FAWDE engine. This engine manufacturer is engine supplier of China First Auto Works who are producing popular automobile models such as Auti.
This generator is standard configured with sea water filter, water-cooled silencer, wire remote controller, heat exchanger, sea water pump, which ensure its smooth and reliable operation in the boat or ship.
The features of sinewave output, little vibration, low noise and low emission run all the electric applicances in the boat/ship without worrying of possible damages.
Specifications:
| Generator Set | Model | OM6CYZ3 |
| Brand | OUMA | |
| Rated power(KW) | 6 9 | |
| Rated voltage(V) | 400/230 416/240 | |
| Rated current(A) | 10.8 16.2 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension (L×W×H)(mm) |
≤ 1070x680x750 | |
| Overall weight(kg) | ≤480 | |
| Fuel tank capacity(L) | None | |
| Diesel Engine | Model | OM380 |
| Brand | OUMA | |
| Power output(KW) | 10 12 | |
| Type | 3 cylinder, direct injection, four stroke | |
| Displacement(L) | 1.2 | |
| Bore×Stroke(mm) | 85×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | External cycling sea water or river water | |
| Exhaust muffler | Water cooled | |
| Heat exchanger(L) | 9 | |
| Sea water pump suction(M) | 1 | |
| Sea water filter | Available | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM164CZ3 |
| Brand | OUMA | |
| Rated power(KW) | 8.5 10 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Three phase,four wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 | |

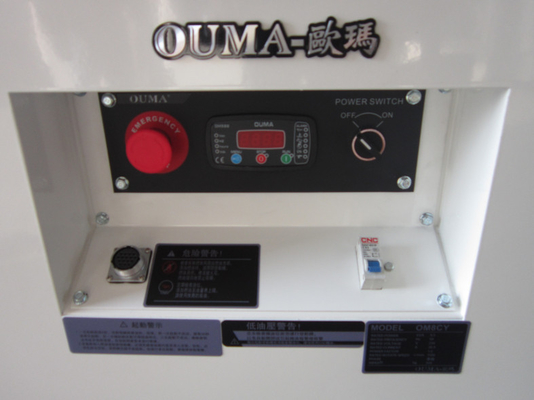

| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built and remote cable connected | |
| Remote conrol w/ cable(M) | 12 | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
- Easy installation and connection.
- Low noise running within 62dBA at 7meters.
- Stable and reliable output.
- Removable service doors.
- Smallest size compared with counterparts of the same capacity.
- Compact and attractive aesthetic outlooking.
- ISO and CE certificated.
