Heavy - duty Gear Hobbing Machine for mass production and machines management
YB3120K Heavy-duty gear hobbing machine with suitable for mass production and machines management. greatly raise efficiency.

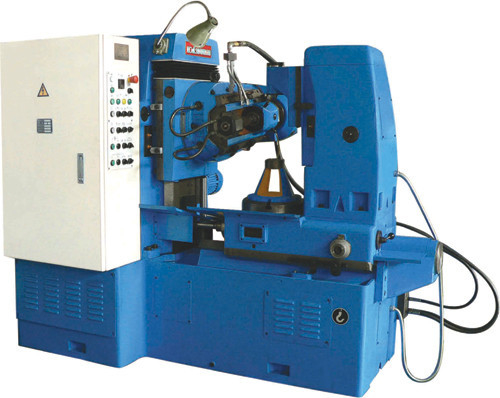

YB3120K Heavy-duty gear hobbing machine
Features:
- This machine is Heavy-duty gear hobbing machine.
- This machine has owned good rigidity and extremely small thermal deformation. The machine can work under the condition of heavy-duty and high speed. The cutting speed for a coated hob can be reach 120m/min.
- The machine has a square working semiautomatic cycle function. Suitable for mass production and machines management. greatly raise efficiency.
- The machine has owned function of automatic hob shifting reduces tool’s wear and increases tool’s service life.
- The machine tool is convenient for adjustment with auto stop mechanism ,as well as reliable safe mechanism and auto lubrication system.
1.
1.
Quick Details:
| Condition: |
New
|
Place of Origin: |
Liaoning,China (Mainland)
|
Brand Name: |
GUANHUA
|
| Model Number: |
YB3120K
|
Type: |
Horizontal
|
CNC or Not: |
Not
|
| Voltage: |
380V,
|
Power(KW): |
7.5KW
|
Dimension(L*W*H): |
2260×1800×1720 (mm)
|
| Weight: |
3500kg
|
Certification: |
ISO9001:2000,
|
Warranty: |
one year
|
Model: YB3120K Heavy-duty gear hobbing machine
Main parameter:
1．Range of processing
| Max. workpiece diameter/width | 200mm/170mm |
| Max. module | 6mm |
| Tooth number for processing | 8～64(12×50)* |
| Helical angle of workpiece | ±45° |
*Promise process tooth in bracket,can process tooth in no including in bracket.
2．Tool post
| Max. travel of tool post(Vertical) | 170mm |
| Vertical move speed of tool post | 0.55m/min |
| Min. reading of swivel angle of tool post | 6′ |
| Range of feed(vertical) | 0.6～5mm/RPM |
3．Worktable
| Work table diameter | 300mm |
| Work table bore diameter | 65mm |
| Min. Feeding speed of worktable | 4mm /min |
| Movement per revolution Horizontal(manual) | 1mm |
| Min. reading move horizontal | 0.01mm |
| Radial movement of worktable | 4～30mm/min(Hydraulic) |
| T-slot size of worktable | 18 mm |
| Indexing worm wheel Pitch diameter | 256.956mm |
| Distance between hob axis and worktable surface | 310-510mm |
4．Hobbing spindle
| Max. hob diameter/lengthen | 140mm/140mm |
| Tie rod threading diameter | M20 |
| Taper of hob arbor fitting | M.T.5 |
| Max. hob axial movement | 95mm |
| Distance between hob axis and worktable surface | 260-430mm |
| Distance between hob and worktable center | 30-175mm |
| Range of spindle speed | 79～498rpm |
| Step of spindle | 9step |
5．Motor and machine weight
| Motor power/speed | 7.5 kw/1500 rpm |
| Axial fast motor(Vertical)/speed | 1.1 kw/1500 rpm |
| Radial fast motor/speed | 0.09 kw1500 rpm |
| Motor of hydraulic pump | 1.5 kw/1000rpm |
| Coolant pump | 0.75 kw/1500 rpm |
| Weight | 3500 kg |
| Overall(L×W×H) | 2260×1800×1720 (mm) |
6,Others:
①Diameter of hob arbor:φ22mm,φ27mm,φ32mm,φ40mm
②Arbor diameter:φ30mm
Advantage:
1. Professional maker.
2. Popular in the world.
3. Good quality and competitive.
