Single Phase Portable Silent Diesel Generator Set Perfect for Residential and Commercial 20KW - 23KW
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | super silent diesel generator,portable silent generator |
||
|---|---|---|---|

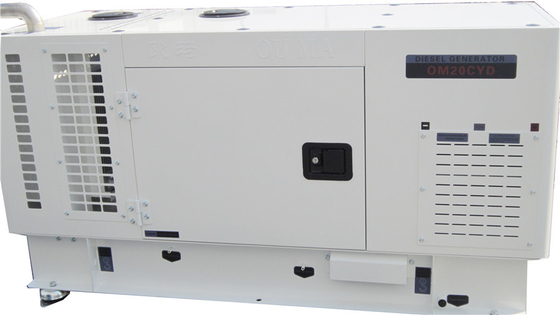

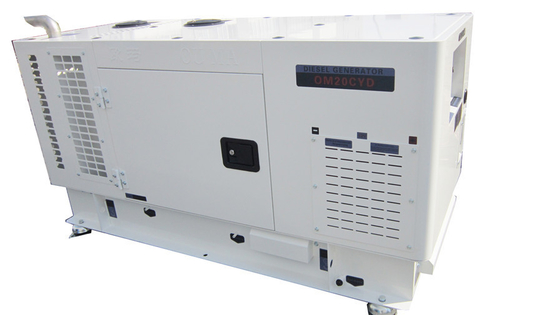

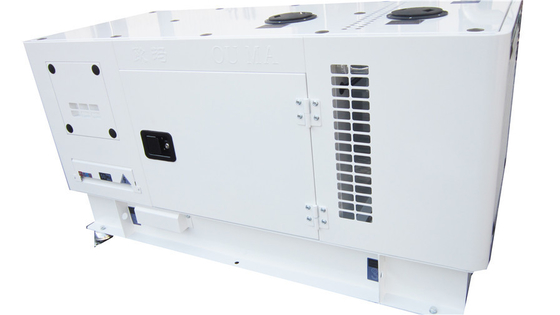

Single Phase Portable Silent Diesel Generator Set Perfect for Residential and Commercial Use 20KW - 23KW
Quick Detail:
- Single phase Silent Diesel Generator Set
- 20KW/ 50Hz, 23KW/ 60Hz. Single or dual AC voltage
- Driven by powerful 4 cylinder, 25kw/35HP 1500rpm, 30kw/40HP 1800rpm diesel engine.
- Rated voltage: 115V/230V 120V/240V
- Rated current: 173A/86.9A 191A/95.8A
Description:
60℃ radiator, no overheat would happen in high temperature weather condition. To enhance cooling effect, engine oil cooler may be equipped. For chilly conditions, engine oil heater and water heat jacket would be used.
62 dbA noise level, quiet enough to leave the users and neighbourhood a good living environment. We continue improving noise level to below 60dbA.
Four-cavity design of genset housing. i.e. engine and alternator cavity, silencer cavity, radiator and electronic fan cavity, battery cavity, the genset can run at very low noise and genset size is quite small. Internal temperature of the genset housing is kept 40-50℃, safety is ensured while performance of the genset is maximized. This design is patent protected to OUMA.
Central AC type cooling fan: 20,000 hours service life, much more than 500 hours as most genset factories use. The cooling fan connection mode is patent protected to OUMA.
8 mounting pads, minimize vibration to a perfect level.
Specifications:
| Generator set | Model | OM20CYD |
| Brand | OUMA | |
| Rated power(KW) | 20 23 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated current(A) | 173/86.9 191/95.8 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave,distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | 60 | |
| Overall dimension (L×W×H)(mm) |
≤1750×750×853 | |
| Overall weight(kg) | ≤780 | |
| Fuel tank capacity(L) | 70 | |
| Continuous running(h) | 9 | |
| Diesel engine | Model | OM495 |
| Brand | OUMA | |
| Power output(KW) | 25 30 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 2.6 | |
| Bore×Stroke(mm) | 95×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Upward exhaust | |
| Radiator size(L) | 9 | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM184C |
| Brand | OUMA | |
| Rated power(KW) | 20 23 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Single phase, three wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | 22 | |
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminals | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
- Easy installation and connection.
- Low noise running within 62dBA at 7meters.
- Stable and reliable output.
- Big openable service doors with keys.
- Smallest size compared with counterparts of the same capacity.
- Compact and attractive aesthetic outlooking.
- Best seller model in 2014.
