Energy Saving Silent Diesel Generator Set Single Phase Three Wire for Commerical 8.5KW / 10KW
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | silent diesel generators,portable silent generator |
||
|---|---|---|---|
Energy Saving Silent Diesel Generator Set Single Phase Three Wire for Commerical 8.5KW / 10KW
Quick Detail:
- Single phase ultra silent generator set.
- 8.5KW/ 50Hz, 10KW/ 60Hz. Power factor 1.0.
- Driven by three cylinder, 10kw/1500rpm, 12kw/1800rpm diesel engine.
- 70L fuel tank, 15 hours continuous running.
- 60℃ radiator,62dBA noise level.
Description:

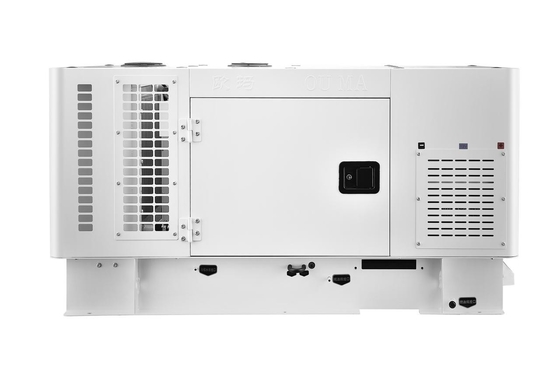

Compact structure withou overal dimension 1670×750×853, less width ad height.

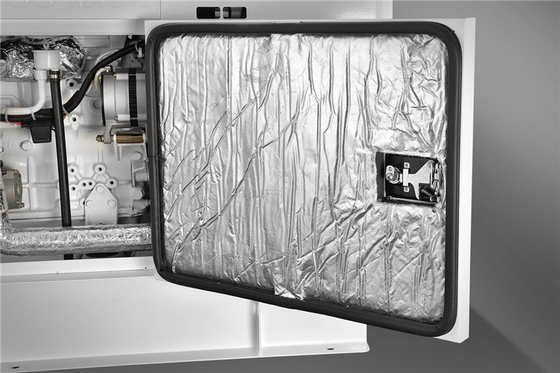

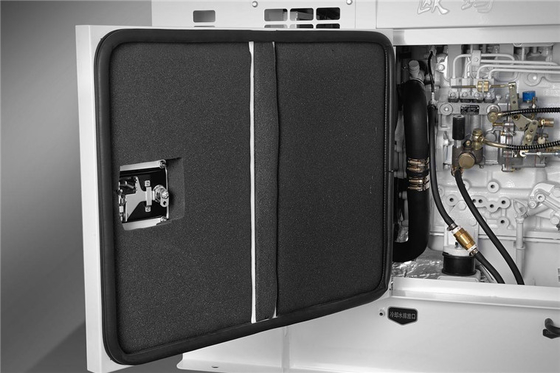

Four-cavity design of housing, excellent ventilation and noise reduction
Internal temperature of the genset housing is kept low, safety is ensured while performance of the genset can be maximized.
60℃ radiator adopted, normal use in hot areas without power loss or overheat of the genset.
Sinewave output with distortion ≤5%.
Brushless, self-excitation;auto voltage regulation.125℃ temperature rise, H grade insulation, IP 22.
TIF＜50,THF＜2%.
Complete protections and parameter digital display.
2.0mm cold-rolled steel for the genset canopy, rigid and corrosion resistant.
Painting is by electrostatic spraying, no color difference or fading within 5 years.
Relay, fuse and AVR are in one box for easy maintenance or repair.
Applications:
Ideal choice of power generating set for residential,commerical use. Low running noise leaves you a peace of mind and enjoyable life. Low rotation speed is suitable for continuous running as prime power. This is far more enough to take a backup or prime power for your family.
Specifications:
| Generator set | Model | OM8CYD |
| Brand | OUMA | |
| Rated power(KW) | 8.5 10 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated current(A) | 73.9/36.9 83.3/41.6 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave,distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | 60 | |
| Overall dimension (L×W×H)(mm) |
≤1670×750×853 | |
| Overall weight(kg) | ≤580 | |
| Fuel tank capacity(L) | 70 | |
| Continuous running(h) | 15 | |
| Diesel engine | Model | OM385 |
| Brand | OUMA FAWDE | |
| Power output(KW) | 10 12 | |
| Type | Three cylinder, direct injection, four stroke | |
| Displacement(L) | 1.2 | |
| Bore×Stroke(mm) | 85×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Upward exhaust | |
| Radiator size(L) | 9 | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM164C |
| Brand | OUMA | |
| Rated power(KW) | 8.5 10 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Single phase, three wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | 22 | |
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminals | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
- 60℃ radiator .
- Four cavity housing.
- Low noise, little vibration.
- Quick delivery
- Double layer package. Plastic film and veneer case.
- Availability of genuine spare parts.
-
15 months or 1200 running hours warranty, whichever comes first
