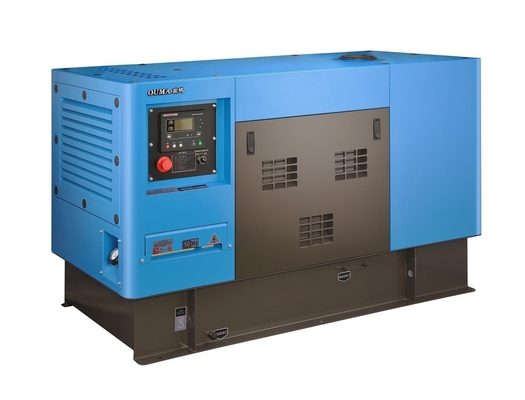

3 Phase 4 Wire 20KW - 24KW Kubota Portable Diesel Generator for Luxury RVs

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  3 Phase 4 Wire 20KW - 24KW Kubota Portable Diesel Generator for Luxury RVs Get Best Price

Product Details:
Place of Origin: China
Brand Name: OUMA
Certification: ISO,CE,EPA
Model Number: OM20CYJ3
Contact Now
Detailed Product Description
High Light:

kubota rv diesel generator

,

kubota portable generator

3 Phase 4 Wire Kubota Portable Diesel Generator for Hotel / School / Military 1500rpm & 1800rpm

Quick Detail:


  1. Product name:Kubota RV Generator set
  2. Diesel Engine: Four cylinder, direct injection, four stroke
  3. Output range:  20Kw - 24KW
  4. Frequency: 50 & 60Hz
  5. 3 Phase 4 Wire
  6. Speed: 1500rpm & 1800rpm
  7. Three Phase Voltage Available: 208V / 220V / 230V / 240V / 380V / 390V / 400V / 415V


Description:

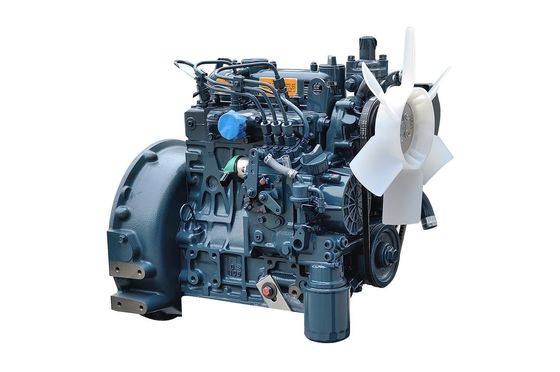

  • Powerful and compact Kubota V3300 engine 3.318L displacement, EPA certified.
  • Original Stamford alternator PI144E to best match.
  • Sinewave output with distortion ≤5%.
  • Four cylinder, direct injection, four stroke water-cooled diesel engine
  • 12V DC electric starting.
  • Dry air filter, fuel filter, oil filter
  • Mechanical governing.
  • Enclosed water cooling.
  • Bottom air inlet and exhaust muffler.
  • Brushless, self-excitation;auto voltage regulation.
  • 125℃ temperature rise, H grade insulation, IP 23.
  • TIF＜50,THF＜2%.
  • Complete protections and parameter digital display.


Applications:

Vehicle applications such as recreational vehicles, buses, mobile medical vehicles, broadcast or LED media vehicles, catering trucks, communication vans, command vans, homeland defense units.

Specifications:


Generator SetModelOM20CYJ3
BrandOUMA
Rated power(KW)20          24
Rated voltage(V)400/230    416/240
Rated current(A)36          41.6
Rated frequency(Hz)50              60
Waveform distortion Sinewave, distortion ≤5%
Noise level(dB@7m)57
Battery(12V-Ah)None
Overall dimension
(L×W×H)(mm)		≤ 1400x730x820
Overall weight(kg)≤690
Fuel tank capacity(L)None
Diesel EngineModelV3300
BrandKUBOTA
Power output(KW)29   34.8
TypeFour cylinder, direct injection, four stroke
Displacement(L)3.318
Bore×Stroke(mm)987×110
Rotation speed(r/m)1500   1800
Governor systemMechanical
Starting mode12V DC
Filter systemDry air filter, fuel filter, oil filter
Cooling typeWater-cooled
Radiator installationIndependent built-out
Radiator dimension
(L×W×H)(mm)		620x510x340
Muffler installationIndependent built-out
Water tank capacity(L)9
Fuel consumption(g/kw.h)≤220
Oil capacity(L)7.6
AlternatorModelPI144E
BrandStamford
Rated power(KW)20   24
Excitation modeBrushless, self-excitation
Voltage regulationAuto regulation
Number of phaseThree phase, four wire
Number of pole4
Rotation speed(R/M)1500    1800
Temperature rise(℃)125
Insulation grade(stator/rotor)H/H
Voltage regulation range w/o load≥95%～105%
Steady-state voltage deviationLess ±1%
Interference factorTIF＜50,THF＜2%
IP gradeIP22
Control panelModelOM588
ManufacturerOUMA
Power outputTerminal post
InstallationIn-built and remote cable connected
Remote conrol w/ cable(M)12
ManufacturerOUMA
Auto function

Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm

Parameter display

AC voltage, frequency, running hour,
charging voltage


Competitive Advantage:


  1. Easy installation and connection.
  2. International warray by Kubota and Stamford.
  3. Stable and reliable output.
  4. Removable service doors.
  5. Smallest size compared with counterparts of the same capacity.
  6. Compact and attractive aesthetic outlooking.
  7. Above 85% market share in LED media vehicle use in China.
