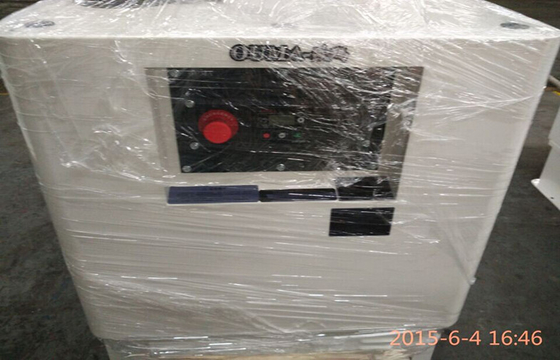

Three Phase Portable RV Generator 60℃ Radiator Cooling System 10KW / 12.5KVA

Large Image : Three Phase Portable RV Generator 60℃ Radiator Cooling System 10KW / 12.5KVA Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	OUMA
Certification:	ISO,CE, SONCAP
Model Number:	OM10CY3

Payment & Shipping Terms:

Minimum Order Quantity:	5 units
Price:	To be negotiated
Packaging Details:	Plastic film and veneer case
Delivery Time:	50 working days
Payment Terms:	T/T or L/C at sight
Supply Ability:	50 units / day

Contact Now

Detailed Product Description

Genset Rated Power(KW):	10KW / 12.5KVA 12KW / 15KVA	Rated Voltage(V):	400/230 416/240
Noise Level(dB@7m):	62	Engine Power Output(KW):	15 17.6
Engine Brand:	FAWDE	Alternator Insulation Grade(stator/rotor):	H/H
High Light:	RV diesel generators , silent diesel generator

Three Phase Portable RV Generator 60℃ Radiator Cooling System 10KW / 12.5KVA

Our biggest features are low noise(62 dbA at 7 meters), samallest size and perfect cooling system, which are always the aim for genset manufacturers to achieve.

Description:

Forklift slots can be standard for us without extra charge to you, other factories are optional with additional charge.
Remote control with cable in driving cab.
We are using 8 antivibration dampers, not most factories are using 4.
Battery switch, so as to keep battery not loosing power while in genset is long time no use.
Complete display of main parameters and protections on the control panel.
We have equipped with fuel retainer valve to make sure of easy startups after long time of no use the genset.

Warranty:

Our warranty is 15 months or 1200 running hours, while most of factories is 12 months or 1000 hours.

Applications:

OUMA RV generator mainly used in recreational vehicle, LED broadcasting truck...

Specification:

Generator Set	Model	OM10CY3
	Brand	OUMA
	Rated power(KW)	10 12
	Rated voltage(V)	400/230 416/240
	Rated current(A)	18 20.8
	Rated frequency(Hz)	50 60
	Waveform distortion	Sinewave, distortion ≤5%
	Noise level(dB@7m)	62
	Battery(12V-Ah)	None
	Overall dimension(L×W×H)(mm)	≤ 1410x780x950
	Overall weight(kg)	≤480
	Fuel tank capacity(L)	None
Diesel Engine	Model	OM490
	Brand	OUMA FAWDE
	Power output(KW)	15 17.6
	Type	Four cylinder, direct injection, four stroke
	Displacement(L)	1.5
	Bore×Stroke(mm)	90×95
	Rotation speed(r/m)	1500 1800
	Governor system	Mechanical
	Starting mode	12V DC
	Filter system	Dry air filter, fuel filter, oil filter
	Cooling type	Enclosed water-cooled
	Exhaust muffler	Downward
	Air inlet	Bottom
	Fuel consumption(g/kw.h)	≤220
	Oil capacity(L)	8.3
Alternator	Model	OM164C3
	Brand	OUMA
	Rated power(KW)	10 12
	Excitation mode	Brushless, self-excitation
	Voltage regulation	Auto regulation
	Number of phase	Three phase four wire
	Number of pole	4
	Rotation speed(R/M)	1500 1800
	Temperature rise(℃)	125
	Insulation grade(stator/rotor)	H/H
	Voltage regulation range w/o load	≥95%～105%
	Steady-state voltage deviation	Less ±1%
	Interference factor	TIF＜50,THF＜2%
	IP grade	IP22
Control panel	Model	OM588
	Manufacturer	OUMA
	Power output	Terminal post
	Installation	In-built
	Manufacturer	OUMA
	Auto function	Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm
	Parameter display	AC voltage, frequency, running hour, charging voltage

Competitive Advantage:

1. Low noise(62 dbA at 7 meters)
2. Design the appearance form according to customers’ request
3. Central AC type cooling fan: 20,000 hours service life

4. 15 months or 1200 running hours warranty, whichever comes first.

5. 2.0mm cold-rolled steel soundproof canopy

6. ISO and CE certificated.
