12000 Watt 3 Phase Silent Power Generator for Recreational Vehicle Water-cooled
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Genset Rated Power(KW): | 13.6 15 | Overall Dimension (L×W×H)(mm): | ≤ 1410x780x950 |
|---|---|---|---|
| Noise Level(dB@7m): | 62 | Engine Power Output(KW): | 17 20.4 |
| Starting Mode: | 12V DC | Engine Oil Capacity(L): | 8.3 |
| High Light: | RV diesel generators,silent diesel generator |
||
12000 Watt 3 Phase Silent Power Generator for Recreational Vehicle Water-cooled
Low noise, small size, good cooling, the three most difficutl aspects for gensets manufacturers, we have made it and we are proud of it!
Description:
- Forklift slots can be standard for us without extra charge to you, other factories are optional with additional charge.
- Remote control with cable in driving cab.
- We are using 8 antivibration dampers, not most factories are using 4.
- 1200 ℃ high temperature resistant and fireproof speical high quality sponge, while others use common sponge, cost is more than double, which is safe .
- Our warranty is 15 months or 1200 running hours, while most of factories is 12 months or 1000 hours.
Warranty:
Our warranty is 15 months or 1200 running hours, while most of factories is 12 months or 1000 hours.
Applications:

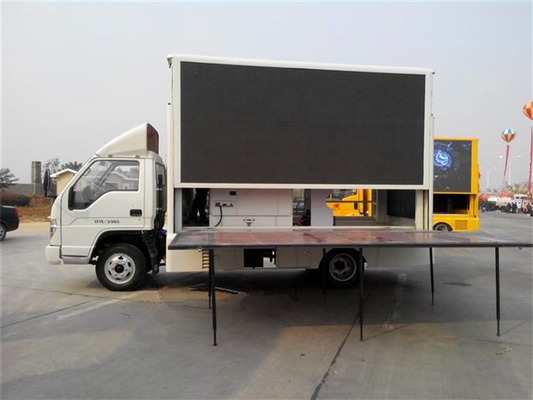

OUMA RV generator mainly used in recreational vehicle, LED broadcasting truck...
Specification:
| Generator Set | Model | OM12CY3 |
| Brand | OUMA | |
| Rated power(KW) | 13.6 15 | |
| Rated voltage(V) | 400/230 416/240 | |
| Rated current(A) | 24.5 27 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension (L×W×H)(mm) |
≤ 1410x780x950 | |
| Fuel tank capacity(L) | None | |
| Diesel Engine | Model | OM492 |
| Brand | OUMA FAWDE | |
| Power output(KW) | 17 20.4 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 1.8 | |
| Bore×Stroke(mm) | 92×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Downward | |
| Air inlet | Bottom | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM184 -3 |
| Brand | OUMA | |
| Rated power(KW) | 13.6 15 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Three phase four wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 | |
| Control Panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function | Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm | |
| Parameter display | AC voltage, frequency, running hour, charging voltage |
Competitive Advantage:
1. Low noise(62 dbA at 7 meters)
2. Design the appearance form according to customers’ request
3. Central AC type cooling fan: 20,000 hours service life
4. 2.0mm cold-rolled steel soundproof canopy
5. ISO, SONCAP and CE certificated.
