8KW - 11KW 3 phase generator All-in-one Type 15 Months / 1200 Running Hours
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Genset Waveform Distortion: | Sinewave, Distortion ≤5% | Engine Displacement(L): | 1.4 |
|---|---|---|---|
| Engine Cooling Type: | Enclosed Water-cooled | Fuel Consumption(g/kw.h): | ≤220 |
| Engine Oil Capacity(L): | 8.3 | Alternator Number Of Phase: | Single Phase,three Wire |
| High Light: | RV diesel generators,silent diesel generator |
||
8KW - 11KW 3 phase generator All-in-one Type 15 Months / 1200 Running Hours
OUMA FAWDE series RV generators ranging from 8kw to 300kw are powered by China first top engine FAWDE.
We are the No. 1 FAWDE engine user in genset application in China, second is Himoinsa who is a Spanish company with factory here in China.
Quick Detail:
| Model | Rated power(kw) | Diesel engine brand | Engine type | Engine starting mode | Alternator brand |
| OM8CY |
8kw / 50hz 8kw / 60hz |
FAWDE |
Three cylinder, direct injection, four stroke | 12V DC | Copy Stamford |
Description:
- 2.0mm cold-rolled steel for the genset canopy, rigid and corrosion resistant.Some factories may use 1.8 mm or hot-rolled steel
- Painting is by electrostatic spraying, no color difference or fading within 5 years.Some factories may use varnish painting, such painting may peel off after some time.
- Availability of manufacturer genuine spare parts for whole life of the gensets.
- Assembling bolts are hidden covered by corrosion-resistant rubber cover.
Warranty:
Our warranty is 15 months or 1200 running hours, while most of factories is 12 months or 1000 hours.
Applications:

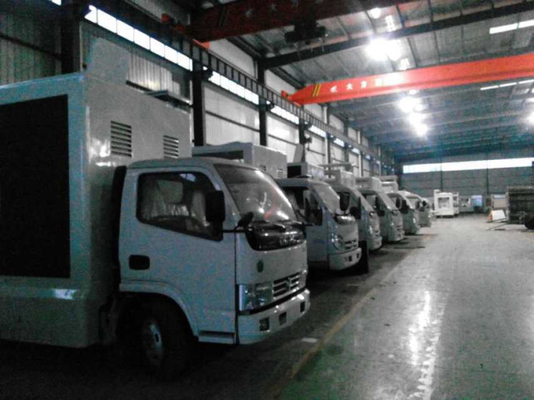

OUMA is the leader in the LED broadcasting vehicle industry with more than 90% market share.
Perfect power capacity for most common RV and special purpose vehicles. Reliable FAWDE engine ensure durable and reliable operation in all weather conditions.
Specification:
Ouma Generator Set
| Generator Set | Model | OM8CY |
| Brand | OUMA | |
| Rated power(KW) | 8 11 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated current(A) | 69.5/34.7 91.6/45.8 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension(L×W×H)(mm) | ≤ 1410x780x950 | |
| Overall weight(kg) | ≤480 | |
| Fuel tank capacity(L) | None |
Ouma Engine & Alternator
| Diesel Engine | Model | OM488 |
| Brand | OUMA | |
| Power output(KW) | 12 14 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 1.4 | |
| Bore×Stroke(mm) | 88×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Downward | |
| Air inlet | Bottom | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM164C |
| Brand | OUMA FAWDE | |
| Rated power(KW) | 8.5 11 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Single phase,three wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 |
Ouma Control Panel:
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
Small size, low noise, good cooling, all these most difficutl and final targets for all genset manufacturers, we have made it! You deservce such good products!
