OEM 1.5KW 24V Hydraulic DC Motor High Torque / Brushed DC Electric Motor

Large Image : OEM 1.5KW 24V Hydraulic DC Motor High Torque / Brushed DC Electric Motor Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	JINLE
Certification:	CE/ISO 9001:2000
Model Number:	W9405

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	negotiation
Packaging Details:	caroton seperator inside, strong export carton box outside, with pallet
Delivery Time:	Approx. 30 days depends on quantity
Payment Terms:	T/T, L/C, DA, DP, Western Union
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Hydraulic DC Motor	Application:	Boat, Car, Electric Bicycle, Fan, Home Applicance
Construction:	Series Wound	Commutation:	Brush
Speed:	2400RPM	Efficiency:	IE2
Insulation:	F	Protection Class:	IP44
Weight:	7.5KG	OEM Service:	Available
Cutomization:	Available	Warranty:	One Year
Voltage:	24V	Power:	1.5KW
Rotation:	CCW	O.D:	114MM
High Light:	dc motor generator , brush dc motor

JINLE OEM Service 24V Hydraulic DC Motor With Carbon Brush 1.5KW

Discription:

Type	W9405
Voltage	24V
Power	1.5KW
Speed	2400RPM
Rotation	CCW
O.D.	114mm
Operating Mode	S3
Effiency	IE2
Weight	7.5KG
Insulation	F
Protection Class	IP44

Our motor feature

* Precise long life motors

* High efficiency and high torque in a small diameter

* Sizes ranges from 16mm to 35mm diameter

* outpur power is from 1.0 to 90 watts

* coreless rotor means no cogging or preferred rotor position,no iron losses

* Low starting voltage,low rotor intertia,low starting voltage

* Custom systems available from design to production

* High precision gearboxes available in all sizes

* Controller available foe all brushless motor series

Technical Data

Type	Voltage	Power	Speed	Rotaion	O.D.
W5692	12V	1.6KW	2500RPM	CW	114mm
W6599	12V	1.7KW	2720RPM	CW	114mm
W9789	12V	1.6KW	2500RPM	CW	114mm
ZD4201	48V	2.0KW	2700RPM	CW	114mm
ZD1223	12V	2.0KW	2800RPM	CW	114mm
ZD293	24V	2.2KW	3000RPM	CW	114mm
ZD2930	24V	2.2KW	2700RPM	CW	114mm
ZD1221	12V	2.0KW	2900RPM	CW	114mm
ZD2931	24V	2.0KW	2600RPM	CW	114mm
ZD223A	24V	2.2KW	2700RPM	CW	114mm
ZDY211	24V	0.8KW	3650RPM	CW	80mm
ZDY212	24V	0.5KW	2800RPM	CW	80mm
ZDY112	12V	0.5KW	2300RPM	CW	80mm
ZDY113	12V	0.8KW	3500RPM	CW	80mm
ZD2973A	24V	3.0KW	3100RPM	CW	127mm
ZD2973A	24V	3.0KW	3100RPM	CW	127mm
ZD2373	24V	3.0KW	2850RPM	CW	125mm
XQD-3C	24V	4.0KW	3100RPM	CW	142mm

Type	Voltage	Power	Speed	Rotaion	O.D.
W8799	12V	1.5KW	2400RPM	CCW	114mm
W8935	12V	1.5KW	2460RPM	CCW	114mm
W8950	24V	2KW	2600RPM	CCW	114mm
W8999	12V	1.6KW	2500RPM	CCW	114mm
W9405	24V	1.5KW	2400RPM	CCW	114mm
ZD193A	12V	1.6KW	2500RPM	CCW	114mm
ZD223A	24V	2.2KW	2700RPM	CCW	114mm
ZD293A	24V	2.2KW	3000RPM	CCW	114mm

Type	Voltage	Power	Speed	Rotaion	O.D.
QZD2402	24V	2.2KW	1750RPM	BI-DIRECTIONAL	164mm
QZD2409	24V	0.9KW	2150RPM	BI-DIRECTIONAL	126mm
QZD2411	24V	1.1KW	2160RPM	BI-DIRECTIONAL	127mm
QZD2412	24V	2.2KW	1750RPM	BI-DIRECTIONAL	164mm
QZD2422	24V	2.2KW	1750RPM	BI-DIRECTIONAL	164mm
QZD2445	24V	4.5KW	1750RPM	BI-DIRECTIONAL	180mm
QZD4840	48V	4.8KW	1750RPM	BI-DIRECTIONAL	218mm
QZD4841	48V	4.0KW	2030RPM	BI-DIRECTIONAL	170mm
W8923	12V	1.4KW	2250RPM	BI-DIRECTIONAL	114mm
W8930B	12V	1.5KW	2380RPM	BI-DIRECTIONAL	114mm
W8941	12V	1.5KW	2400RPM	BI-DIRECTIONAL	114mm
W9144	12V	1.5KW	2150RPM	BI-DIRECTIONAL	114mm
W7923	12V	1.2KW	1700RPM	BI-DIRECTIONAL	114mm

Image:

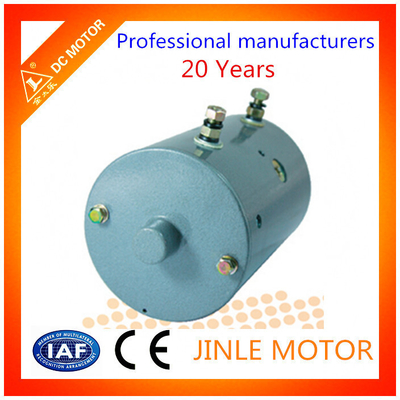

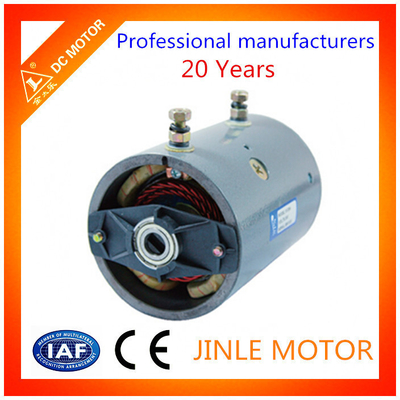

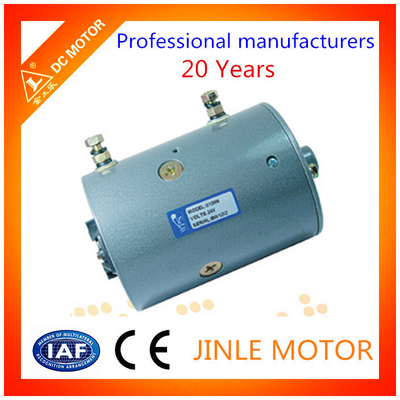

OEM 1.5KW 24V Hydraulic DC Motor High Torque / Brushed DC Electric Motor

Our factory was established in 1996, professional in forklift motors, hydraulic power unit motors.

We have nearly 20 years' manufacturing experience with a strong team of 30 engineers for development and research. The motors' annual output has been more than 200,000 sets.

So far, we are the only designated OEM hydraulic power unit motor supplier in China for US WAI Company, OEM forklift motor supplier for Korea SOOSUNG. Also, we cooperated Korea KOPACK and HELI in China.
