High Precision Shaft Mounted Speed Reducer TA 40 - 60 for Conveyor Belt
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Ratio: | 5-31(Usual 15/1 ) | Material: | Cast Iron For Housing |
|---|---|---|---|
| Color: | Blue, Grey | Input Speed: | Up To 2000RPM |
| Name: | Shaft Mounted Speed Reducer | Model: | TA30-125 |
| High Light: | motor speed reducer,shaft mounted gear reducer |
||

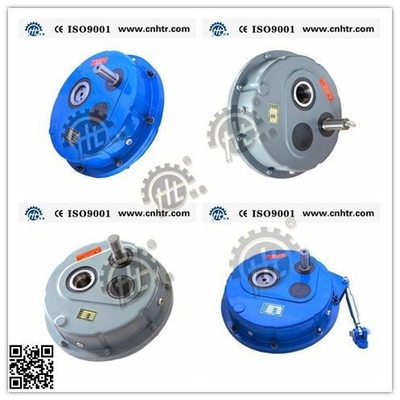

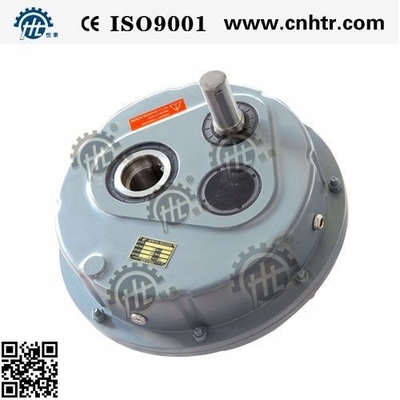

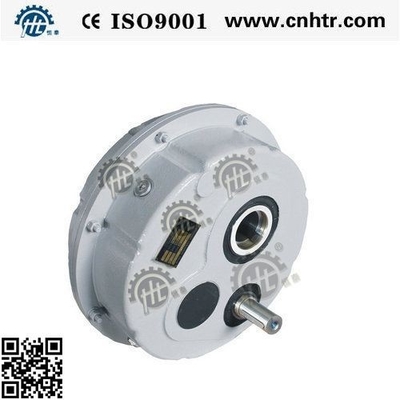

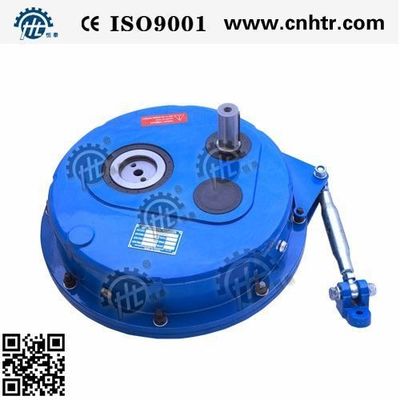

High Precision Shaft Mounted Speed Reducer TA 40 - 60 for Conveyor Belt
Model: TA30-35-40-45-50-60-80-100-125
Ratio: 5, 7.5, 10, 12.5, 15, 20, 25, 31
Rated Power: 1.6-193KW
Output torque: 180-17000N.m
Material of housing: Cast iron
Material of gear: 20CrMnTi with carburizing and quenching
Material of shaft: 40Cr with carburizing and quenching
Mounting: shaft mounted, torque arm
Input form: motor coupling
Color: Blue, grey or other.
Warranty: 13 months
FOB port: Ningbo / Shanghai
Delivery time: 5-30 days
Details:
| HXG shaft mounted reducer | Output shaft bore | Ratio(i) | Rated torque |
| HXG30 | Φ30 | 7, 10, 12.5 | 180Nm |
| HXG35 | Φ35 | 5,10,15,20,25 | 420Nm |
| HXG40 | Φ40 | 5,10,12.5,15,20,25 | 900Nm |
| Φ45 | |||
| HXG45 | Φ45 | 5,10,12.5,15,20,25 | 1400Nm |
| Φ50 | |||
| Φ55 | |||
| HXG50 | Φ50 | 5,10,12.5,15,20,25 | 2300Nm |
| Φ55 | |||
| Φ60 | |||
| HXG60 | Φ60 | 5,10,12.5,15,20,25 | 3600Nm |
| Φ70 | |||
| HXG70 | Φ70 | 5,10,12.5,15,20,25,31 | 5100Nm |
| Φ85 | |||
| HXG80 | Φ80 | 5,10,12.5,15,20,25,31 | 7000Nm |
| Φ100 | |||
| HXG100 | Φ100 | 5,10,12.5,15,20,25,31 | 11000Nm |
| Φ125 | |||
| HXG125 | Φ125 | 5,10,12.5,15,20,25,31 | 17000Nm |
| Φ135 |
