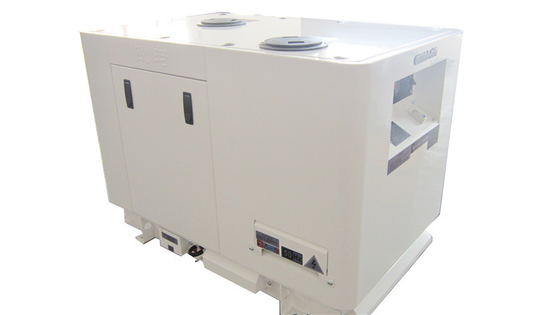

8KW - 11KW Three Phase Four Wire RV Diesel Generators for LED Media Vehicles Catering Trucks

Large Image : 8KW - 11KW Three Phase Four Wire RV Diesel Generators for LED Media Vehicles Catering Trucks Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	OUMA
Certification:	ISO,CE
Model Number:	OM8CY3

Payment & Shipping Terms:

Minimum Order Quantity:	5 units
Price:	To be negotiated
Packaging Details:	Plastic film and veneer case
Delivery Time:	15 working days
Payment Terms:	T/T or L/C at sight
Supply Ability:	50 units / day

Contact Now

Detailed Product Description

High Light:

portable diesel generator

diesel power generator

Three Phase Four Wire RV Diesel Generators for LED Media Vehicles , Catering Trucks

Quick Detail:

Three phase four wire connection.
8KW 50Hz and 11KW 60Hz.
Powered by four cylinder, 12kw/1500rpm, 14kw/1800rpm 1.4L diesel engine.
Share fuel tank with the vehicle.
Integrated one-in-all type, buy one and for all.

Description:

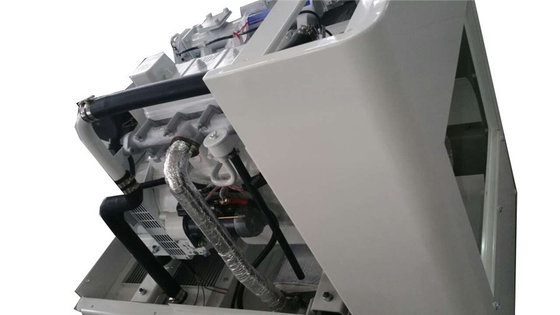

Engine: Four cylinder, direct injection, four stroke;Enclosed water-cooled;Mechanical governing system and 12V DC starting; Bottom air inlet and downward exhaust muffler; Less than 220g/kw.h fuel consumption and 8.3L oil tank.
Alternator: Brushless, self-excitation,auto voltage regulation;125 degree temperature rise;Less than 1%steady-state voltage deviation; TIF＜50,THF＜2%.
Control panel: Turkey made OEM for OUMA control panel with complete protections and digital display of main paramters.

Applications:

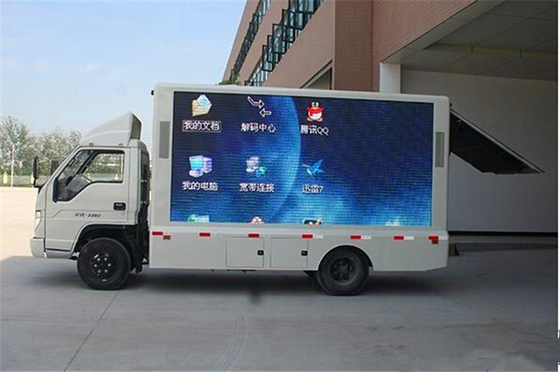

Vehicle applications such as recreational vehicles, buses, mobile medical vehicles, broadcast or LED media vehicles, catering trucks, communication vans, command vans, homeland defense units.

Specifications:

Generator Set	Model	OM8CY3
	Brand	OUMA
	Rated power(KW)	8 11
	Rated voltage(V)	400/230 416/240
	Rated current(A)	14.4 19
	Rated frequency(Hz)	50 60
	Waveform distortion	Sinewave, distortion ≤5%
	Noise level(dB@7m)	62
	Battery(12V-Ah)	None
	Overall dimension(L×W×H)(mm)	≤ 1410x780x950
	Overall weight(kg)	≤480
	Fuel tank capacity(L)	None
Diesel Engine	Model	OM488
	Brand	OUMA
	Power output(KW)	12 14
	Type	Four cylinder, direct injection, four stroke
	Displacement(L)	1.4
	Bore×Stroke(mm)	88×95
	Rotation speed(r/m)	1500 1800
	Governor system	Mechanical
	Starting mode	12V DC
	Filter system	Dry air filter, fuel filter, oil filter
	Cooling type	Enclosed water-cooled
	Exhaust muffler	Downward
	Air inlet	Bottom
	Fuel consumption(g/kw.h)	≤220
	Oil capacity(L)	8.3
Alternator	Model	OM164C3
	Brand	OUMA FAWDE
	Rated power(KW)	8.5 11
	Excitation mode	Brushless, self-excitation
	Voltage regulation	Auto regulation
	Number of phase	Three phase four wire
	Number of pole	4
	Rotation speed(R/M)	1500 1800
	Temperature rise(℃)	125
	Insulation grade(stator/rotor)	H/H
	Voltage regulation range w/o load	≥95%～105%
	Steady-state voltage deviation	Less ±1%
	Interference factor	TIF＜50,THF＜2%
	IP grade	IP22
Control panel	Model	OM588
	Manufacturer	OUMA
	Power output	Terminal post
	Installation	In-built
	Manufacturer	OUMA
	Auto function	Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm
	Parameter display	AC voltage, frequency, running hour, charging voltage

Competitive Advantage:

Above 90% market share in LED media vehicle use in China.
Low noise running within 62dBA at 7meters.
Availability of genuine spare parts.
Free training in factory or at customer side.
ISO and CE certificate.
Long service life, reliable and durable.
15 months or 1200 running hours warranty, whichever comes first.
Smallest size and most compact structure, maximum loading and installation space.
