Professional Silent Recreational Vehicle Generators Powerful and Durable 18KW - 20KW
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | RV generators,generator for rv |
||
|---|---|---|---|

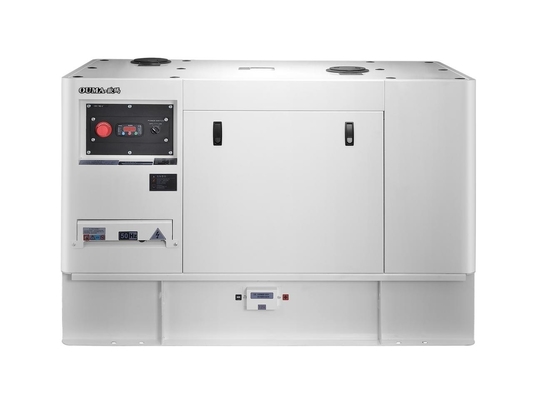

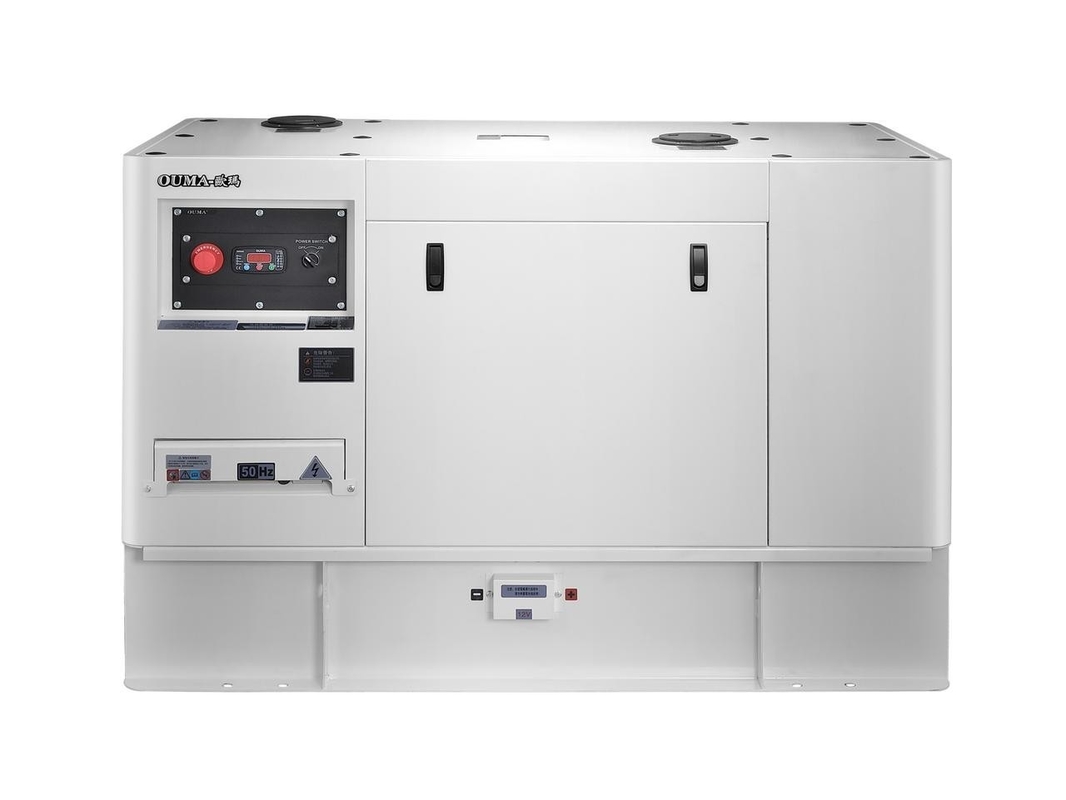

Professional Silent Recreational Vehicle Generators Powerful and Durable 18KW - 20KW
Quick Detail:
- Single phase Recreation Vehicle Generator.
- 18KW/ 50Hz, 20KW/ 60Hz. Single or dual AC voltage
- Driven by powerful 40HP diesel engine.
- Shared fuel tank with the vehicle.
- Integrated one-in-all type, easy connection and installation
Description:
Compact structure, light weight
Electrostatic painting, no color difference or fading within 5 years
Sinewave output with distortion ≤5%.
Three cylinder 1.2L water-cooled diesel engine
12V DC electric starting.
Dry air filter, fuel filter, oil filter
Mechanical governing.
Enclosed water cooling.
Bottom air inlet and exhaust muffler.
Brushless, self-excitation;auto voltage regulation.
125℃ temperature rise, H grade insulation, IP 22.
TIF＜50,THF＜2%.
Complete protections and parameter digital display.
Applications:
Vehicle applications such as recreational vehicles, buses, mobile medical vehicles, broadcast or LED media vehicles, catering trucks, communication vans, command vans, homeland defense units.
Specifications:
| Generator Set | Model | OM18CY |
| Brand | OUMA | |
| Rated power(KW) | 18 20 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated current(A) | 156/78.2 166/83 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension (L×W×H)(mm) |
≤ 1550x780x950 | |
| Fuel tank capacity(L) | None | |
| Diesel Engine | Model | OM498 |
| Brand | OUMA FAWDE | |
| Power output(KW) | 25 30 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 2.6 | |
| Bore×Stroke(mm) | 98×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Downward | |
| Air inlet | Bottom | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 10 | |
| Alternator | Model | OM183C |
| Brand | OUMA | |
| Rated power(KW) | 18 20 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Single phase,three wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 | |
| Control Panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
- Easy installation and connection.
- Low noise running within 62dBA at 7meters.
- Stable and reliable output.

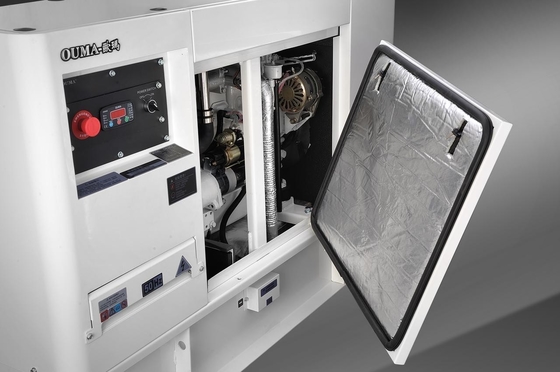

- Removable service doors.
- Smallest size compared with counterparts of the same capacity.
- Compact and attractive aesthetic outlooking.
- Above 90% market share in LED media vehicle use in China.
