62dbA Single Phase 15KW - 17KW Super Silent Recreational Vehicle Generators for Mobile Media Vehicle
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | RV generators,generator for rv |
||
|---|---|---|---|

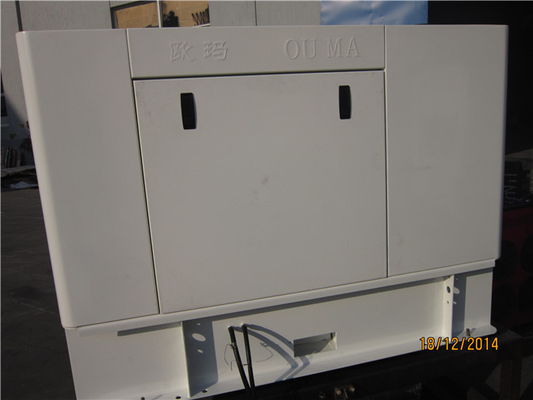

Super Silent Diesel Generator for Mobile Media Vehicle 62dbA at 7 Meters Single Phase
Quick Detail:
- Single phase Diesel RV Generator.
- 15KW/ 50Hz, 17KW/ 60Hz. Single or dual AC voltage
- Powerful four cylinder, 21kw/1500rpm, 25kw/1800rpm diesel engine.
- Shared fuel tank with the vehicle.
- Integrated one-in-all type, easy connection and installation
Description:
15KW power output, meet electricitiy requirement of the whole unit RV.
Less than 5% sinewave distortion output safe to run your sensitive electronic equipments.
Less than 62dBA noise level keep a quiet environment.
Compact structure small size reduce installation space requirement.
Powerful four cylinder engine bring sufficient power drive with extra.
Brushless, self-excitation, auto voltage regulation deliver stable electricity.
Complete protection and parameter display let you feel at ease.
Applications:

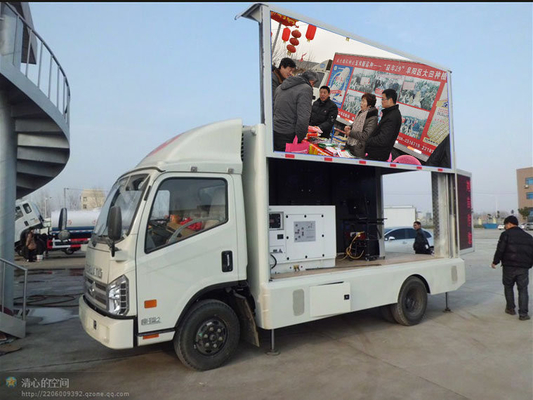

Recreational vehicles, buses, mobile medical vehicles, broadcast or LED media vehicles, catering trucks, communication vans, command vans, homeland defense units.
Specifications:

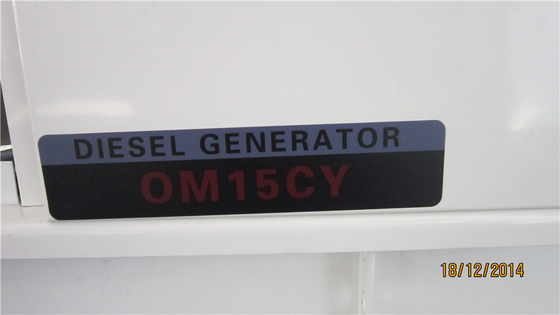

| Generator Set | Model | OM15CY |
| Brand | OUMA | |
| Rated power(KW) | 15 17 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated current(A) | 130/65.2 141/70.8 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension (L×W×H)(mm) |
≤1410x780x950 | |
| Fuel tank capacity(L) | None | |
| Diesel Engine | Model | OM495 |
| Brand | OUMA FAWDE | |
| Power output(KW) | 21 25 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 2.2 | |
| Bore×Stroke(mm) | 95×105 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Downward | |
| Air inlet | Bottom | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 9 | |
| Alternator | Model | OM184 |
| Brand | OUMA | |
| Rated power(KW) | 15 17 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Single phase,three wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 | |
| Control Panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
- Easy installation and connection.
- Low noise running within 62dBA at 7meters.
- Stable and reliable output.
- Removable service doors.
- Custom design,manufacturing and installation.
- Best seller in the market with excellent performance and positive customer feedback.
