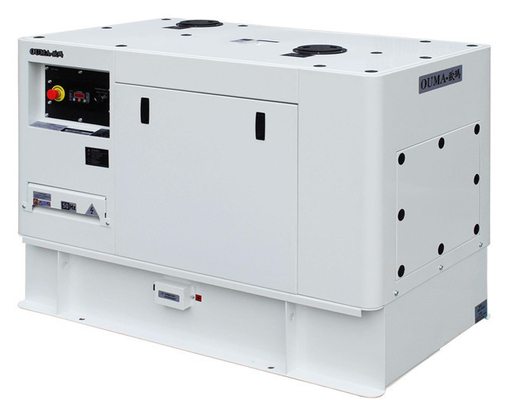

20KW / 24KW Single Phase Powerful Diesel Recreational Vehicle Generators for Big Vehicles
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | RV generators,generator for rv |
||
|---|---|---|---|
20KW / 24KW High Power Diesel Recreational Vehicle Generators for Broadcast Vehicles
Quick Detail:
- Brand: OUMA
- Rated power: 20KW / 24KW
- Phase: Single phase
- Overall dimension: ≤ 1550x780x950
- Feature: Driven by powerful four cylinder, 25kw/1500rpm, 30kw/1800rpm diesel engine.Shared fuel tank with the vehicle.Integrated one-in-all type, easy connection and installation
Description:
- Compact structure, light weight
- Sinewave output with distortion ≤5%.
- 12V DC electric starting.
- Dry air filter, fuel filter, oil filter
- Mechanical governing.
- Enclosed water cooling.
- Bottom air inlet and exhaust muffler.
- Brushless, self-excitation;auto voltage regulation.
- 125℃ temperature rise, H grade insulation, IP 22.
- TIF＜50,THF＜2%.
- Complete protections and parameter digital display.

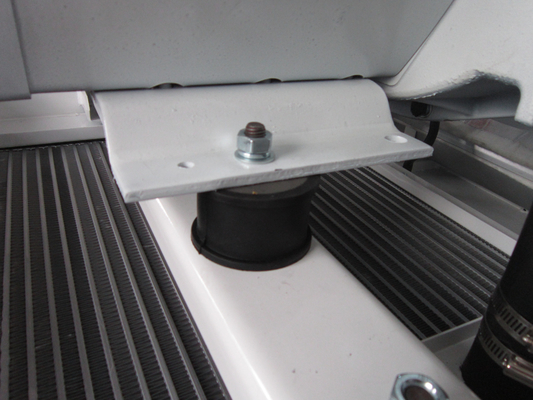

- Damping pads minimize vibration
- At least one hour pre-delivery running test.
Applications:
This powerful RV generator is big enough to run all possible electric equipment in your vehicles.One-in-all type or split type with separately installed muffler and radiator are available for your option. 12M remote control in the driving chamber enhance operation convenience.
Specifications:
| Generator Set | Model | OM20CY |
| Brand | OUMA | |
| Rated power(KW) | 20 24 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated current(A) | 173/86.9 200/100 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension (L×W×H)(mm) |
≤ 1550x780x950 | |
| Fuel tank capacity(L) | None | |
| Diesel Engine | Model | OM498 |
| Brand | OUMA FAWDE | |
| Power output(KW) | 25 30 | |
| Type | Four cylinder, direct injection, four stroke | |
| Displacement(L) | 2.6 | |
| Bore×Stroke(mm) | 98×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | Enclosed water-cooled | |
| Exhaust muffler | Downward | |
| Air inlet | Bottom | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 10 | |
| Alternator | Model | OM184C |
| Brand | OUMA | |
| Rated power(KW) | 20 24 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Single phase,three wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 | |
| Control Panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built | |
| Manufacturer | OUMA | |
| Auto function | Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm | |
| Parameter display |
AC voltage, frequency, running hour, |
Manufacturer advantages:
* OEM supply acceptable.
* Could change the color of the strap as your requirement
* Different designs for your choice
* To develop and make new products according to your samples or designs
* To introduce our latest designs or products to you
* Fast delivery
