High strength belt drive CP5-18.5 / 230 Side entry chemicals liquid mixer agitator

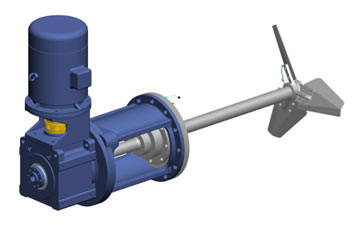

Large Image : High strength belt drive CP5-18.5 / 230 Side entry chemicals liquid mixer agitator Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	GEP
Certification:	ISO
Model Number:	CP5-18.5/230
Shaft Diameter:	85mm
Power:	18.5kw
Speed:	230rpm
Additional Capabilities:	milling,granulating,chemicals, pigment, adhesive
Application:	liquid, solid, liquid with suspended solid, viscous fluid
Mixer Type:	Agitator

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	Paypal,T/T, L/C

Contact Now

Detailed Product Description

High Light:

side entry mixers

industrial agitators

High strength belt drive CP5-18.5 / 230 Side entry chemicals liquid mixer agitator

1.asphalt and methane mixer agitator
2.ISO9001:2000 SGS AAA

3.high strength belt drive

Feature:

1.Convenient to use
2.High mixing efficiency
3.Low power consumption

Description:

1.This CP5-18.5/230 side entry chemicals mixing machine adopts high strength belt transmission, it’s not necessary to remove motor and the materials in emptying jar .

2.The seal types are mechanical seal and packing seal.

Advantage:

Side-in mixer can reach the highest efficiency when consuming power and power consumption is only center mixer 1/3—2/3 .

Attention:

customers need to mark out using temperature and pressure, whether having the feature of solid particles and corrosion.

Main Technical Standards:

Series	Series (rpm)	Power (KW)	D	D1	D2	N-Φz	F	S	H	A	B	C	Weight (KG)
CP1	350(4P)	0.75	Φ315	Φ285	Φ240	8-Φ14	3	40	580	420	200	550	58
		1.1											62
		1.5											70
	230(6P)	0.55											64
		0.75											67
		1.1											75
CP2	350(4P)	2.2	Φ360	Φ320	Φ260	12-Φ18	3	50	600	450	220	650	94
		3											98
		4											105
	230(6P)	1.5											98
		2.2											110
		3											125
CP3	350(4P)	5.5	Φ400	Φ355	Φ295	12-Φ23	3	60	650	470	250	750	158
		7.5											171
		11											215
	230(6P)	4											170
		5.5											185
		7.5											225
CP4	350(4P)	15	Φ460	Φ415	Φ360	16-Φ23	5	75	880	650	350	950	264
		18.5											300
		22											340
	230(6P)	11											310
		15											360
CP5	350(4P)	30	Φ560	Φ510	Φ450	16-Φ27	5	85	964	745	420	1100	480
	230(6P)	18.5											420
		22											450
