High transmission efficiency stable side entry chemical mixing agitator, high shear mixer

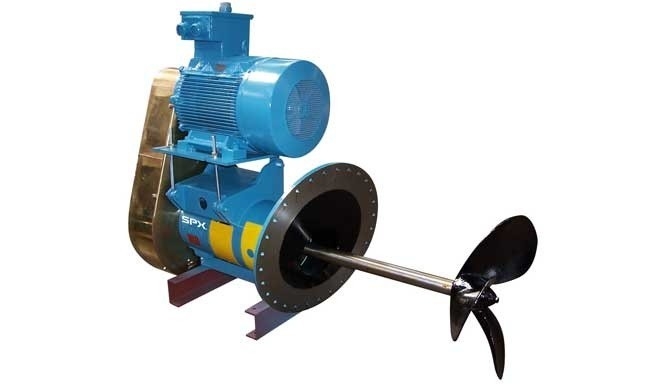

Large Image : High transmission efficiency stable side entry chemical mixing agitator, high shear mixer Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	GEP
Certification:	ISO
Model Number:	CR1-2.2/325
Packing:	plastic inside, wooden case outside
Certificate:	ISO9001:2008 AAA SGS
Color:	blue
Impeller diameter:	100~350mm
Weight:	266kg
Rotate speed:	325rpm
Power:	2.2KW
Additional Capabilities:	milling, coating,adhesive, pigment
Application:	liquid, viscous fluid, liquid with suspended solids
Mixer Type:	Agitator

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	Paypal,T/T, L/C

Contact Now

Detailed Product Description

High Light:

side entry mixers

side entry agitators

High transmission efficiency stable side entry chemical mixing agitator, high shear mixer

1.CR side entry chemical mixing agitator
2.delivery within 30 days
3.long service life

According to user's requirement and working condition, design and manufacture suitable agitator

Product Description:

1.This CR1-2.2/325 side entry chemical mixing agitator adopts Gleason gear transmission with the feature of high transmission efficiency, no slip error, accurate, stable and energy-saving and so on.

2.Its seal types are mechanical seal and packing seal.

Advantage:

Side-in mixer can reach the highest efficiency when consuming power and power consumption is only center mixer 1/3—2/3 .

Attention:

customers need to mark out using temperature and pressure, whether having the feature of solid particles and corrosion.

Main Technical Standards:

Series	Speed	Power	A	B	L	D	D1	D2	f	K	N-Φz	DJ	Weight
CR1	325(4P)	2.2	600	683	Designed by customer	360	320	260	3	650	12-Φ18	100-350	266
		3
		4
	215(6P)	1.5
		2.2
		3
CR2	325(4P)	5.5	850	683		490	445	413	3	750	16-Φ22	300-450	533
		7.5
	215(6P)	4
		5.5
CR3	318(4P)	11	1050	819		595	555	518	5	950	22-Φ26	400-550	895
		15
	210(6P)	7.5
		11
CR4	303(4P)	18.5	1380	1023		750	705	667	5	1100	24-Φ26	500-700	1238
		2
	200(6P)	15
		18.5
CR5	303(4P)	30	1580	1220		860	810	772	5	1500	24-Φ26	500-700	1455
