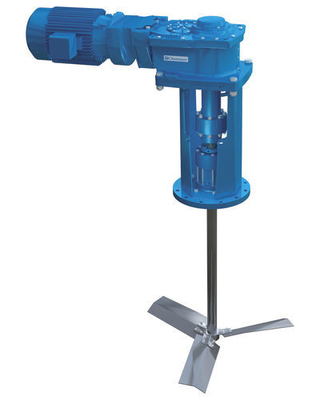

18.5KW 75mm customized Long life service stainless steel side entry liquid mixing agitator

Large Image : 18.5KW 75mm customized Long life service stainless steel side entry liquid mixing agitator Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	GEP
Certification:	ISO
Model Number:	CP4-18.5
packing:	plastic inside, wooden case outside
certificate:	ISO9001:2008 SGS AAA
shaft diameter:	75mm
weight:	300kg
speed:	350rpm
power:	18.5KW
Additional Capabilities:	chemicals, coating, pigment, adhesive, dyestuff
Application:	liquid, solids, viscous fluid, suspended solids
Mixer Type:	Agitator

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	Paypal,T/T, L/C

Contact Now

Detailed Product Description

High Light:

side entry mixers

industrial agitators

18.5KW 75mm customized Long life service stainless steel side entry liquid mixing agitator

1.side entry liquid mixing agitator
2.belt drive
3.ISO9001:2008 SGS AAA

Feature:

Convenient to use
High mixing efficiency
Low power consumption

Description:

1.This CP4-18.5 side entry liquid mixing agitator adopts high strength belt transmission, it's not necessary to remove motor and the materials in emptying jar. The seal types are mechanical seal and packing seal.

Advantage:

Side-in mixer can reach the highest efficiency when consuming power and power consumption is only center mixer 1/3—2/3.

Attention:

customers need to mark out using temperature and pressure, whether having the feature of solid particles and corrosion.

Main Technical Standards:

Series	Series (rpm)	Power (KW)	D	D1	D2	N-Φ Z	F	S	H	A	B	C	Weight (KG)
CP1	350(4P)	0.75	Φ315	Φ285	Φ240	8-Φ14	3	40	580	420	200	550	58
		1.1											62
		1.5											70
	230(6P)	0.55											64
		0.75											67
		1.1											75
CP2	350(4P)	2.2	Φ360	Φ320	Φ260	12-Φ18	3	50	600	450	220	650	94
		3											98
		4											105
	230(6P)	1.5											98
		2.2											110
		3											125
CP3	350(4P)	5.5	Φ400	Φ355	Φ295	12-Φ23	3	60	650	470	250	750	158
		7.5											171
		11											215
	230(6P)	4											170
		5.5											185
		7.5											225
CP4	350(4P)	15	Φ460	Φ415	Φ360	16-Φ23	5	75	880	650	350	950	264
		18.5											300
		22											340
	230(6P)	11											310
		15											360
CP5	350(4P)	30	Φ560	Φ510	Φ450	16-Φ27	5	85	964	745	420	1100	480
