DL1 Series stainless steel chemicals mixing top entry agitators for chemical industry

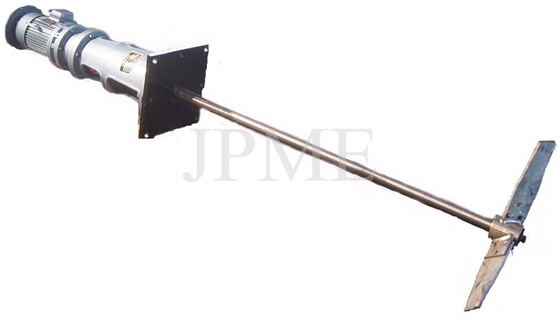

Large Image : DL1 Series stainless steel chemicals mixing top entry agitators for chemical industry Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	GEP
Certification:	ISO
Model Number:	DL2-1.5/100
packing:	plastic inside, wooden case outside
certificate:	ISO9001:2008 SGS AAA
impeller diameter:	according to mixing type
material quality:	SUS304, SUS316, SUS316L, etc
weight:	200kg
shaft dia:	50mm
speed:	100rpm
power:	1.5KW
Additional Capabilities:	milling, granulating, coating,adhesive, etc.
Application:	liquid,liquid with suspended solid,viscous fluid
Mixer Type:	Agitator

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	Paypal,T/T, L/C

Contact Now

Detailed Product Description

High Light:

top entry mixer

industrial mixing equipment

DL1 Series stainless steel chemicals mixing top entry agitators for chemical industry

1.top entry chemicals mixing agitator
2.be used in chemical industry, medicine, etc.

Description:

This DL2-1.5/100 top entry chemicals mixing agitator adopts high strength and hard-toothed surface of gear to transmit, having the feature of stable and reliable operation, compact appearance, long service life and so on.

Main Technical Standards:

Series	Speed (rpm)	Power (KW)	Installation Size
			A	B	N-Φz	D	D1	D2	S	h
DL1	150(4P)	0.55	582	300	8-Φ18	285	240	185	35	20
		0.75
	100(6P)	0.55
		0.75
DL2	150(4P)	1.1	622	345	8-Φ18	340	295	240	50	24
		1.5
		2.2
		3
		4
	100(6P)	1.1
		1.5
		2.2
DL3	150(4P)	5.5	681	400	12-Φ18	435	400	325	65	30
		7.5
		11
		15
	100(6P)	3
		4
		5.5
		7.5
DL4	150(4P)	18.5	868	465	12-Φ18	460	420	350	80	32
		22
		30
	100(6P)	11
		15
		18.5
DL5	150(4P)	37	990	520	12-Φ23	555	510	430	100	36
		45
		55
	100(6P)	22
		30
		37
