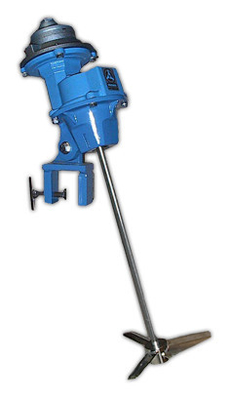

High strength top entry liquid mixing agitator, mechanical agitators with compact structure

Large Image : High strength top entry liquid mixing agitator, mechanical agitators with compact structure Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	GEP
Certification:	ISO
Model Number:	DP4-22/350
packing:	plastic inside, wooden case outside
certificate:	AAA ISO9001:2008 SGS
impeller diameter:	according to mixing type
material quality:	SUS304, SUS316, SUS316L, etc
weight:	340kg
shaft diameter:	75mm
speed:	350rpm
power:	22KW
Additional Capabilities:	milling, granulating, coating,adhesive
Application:	liquid,solid,liquid with suspended solid,viscous fluid
Mixer Type:	Agitator

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	Paypal,T/T, L/C

Contact Now

Detailed Product Description

High Light:

top entry mixer

industrial mixing equipment

High strength top entry liquid mixing agitator, mechanical agitators with compact structure

1.top entry liquid mixing agitator
2.ISO9001:2008 SGS AAA
3.adopt high strength belt drive

Feature:

1.smooth running

2.compact structure

3.long service life

Description:

This DP4-22/350 top entry liquid mixing agitator adopts high strength belt transmission with the feature of stable and reliable operation, compact appearance, long service life and so on.

Main Technical Standards:

Series	Speed (rpm)	Power (KW)	D	D1	D2	f	N-Φz	F	S	E	L	H	A	B	Weight
DP1	350(4P)	0.75	Φ315	Φ285	Φ240	3	8-Φ14	40	40	110	200	580	420	200	58
		1.1													62
		1.5													70
	230(6P)	0.55													64
		0.75													67
		1.1													75
DP2	350(4P)	2.2	Φ360	Φ320	Φ260	3	12-Φ18	50	50	130	200	600	450	220	94
		3													98
		4													105
	230(6P)	1.5													98
		2.2													110
		3													125
DP3	350(4P)	5.5	Φ400	Φ355	Φ295	3	12-Φ23	60	60	145	200	650	470	250	158
		7.5													171
		11													215
	230(6P)	4													170
		5.5													185
		7.5													225
DP4	350(4P)	15	Φ460	Φ415	Φ360	5	16-Φ23	75	75	185	200	880	650	350	264
		18.5													300
		22													340
	230(6P)	11													310
		15													360
DP5	350(4P)	30	Φ460	Φ510	Φ450	5	16-Φ27	85	85	195	250	964	745	420	480
	230(6P)	18.5													420
		22													450
