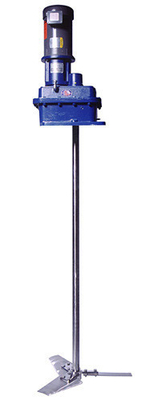

Customize 11KW liquid mixing top entry agitators, high shear mixers for chemical, medicine

Large Image : Customize 11KW liquid mixing top entry agitators, high shear mixers for chemical, medicine Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	GEP
Certification:	ISO
Model Number:	TFJ4-11/100
packing:	plastic inside, wooden case outside
certificate:	ISO9001:2008 AAA SGS
impeller diameter:	according to mixing type
material quality:	SUS304, SUS316, SUS316l, etc
weight:	520kg
shaft diameter:	65mm
speed:	100rpm
power:	11KW
Additional Capabilities:	milling, granulating, coating, pigment, adhesive, etc.
Application:	liquid, liquid with suspended solid, viscous fluid
Mixer Type:	Agitator

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	Paypal,T/T, L/C

Contact Now

Detailed Product Description

High Light:

side entry mixers

industrial mixing equipment

Customize 11KW liquid mixing top entry agitators, high shear mixers for chemical, medicine

1.top entry liquid mixing agitator
2.ISO9001:2008 SGS AAA

3.delivery within 30 days

Feature:

1.The reducer in this TFJ4-11/100 top entry liquid mixing agitator adopts hard-toothed surface cylindrical gear and circle-arc taper cone gear to reduce the speed.

2.Its lubricating type is splash lubrication , it has special structure to prevent lubrication oil from leaking, this series adopts the square box building block.

3.It has convenient assemblage, various models.

Main Technical Standards:

Series	Speed (rpm)	Power (KW)	S	D2	D1	D	N-ΦZ	F	B	A (max)	Weight (kg)
TFJ1	100(4P)	0.55	30	245	295	340	8-Φ18	6	385	830	188
		0.75
		1.1
	65(6P)	0.55
		0.75
TFJ2	100(4P)	1.5	40	290	350	395	12-Φ18	6	385	830	250
		2.2
		3
	65(6P)	1.5
		2.2
		3
TFJ3	100(4P)	4	50	320	400	445	12-Φ22	6	475	1033	350
		5.5
	65(6P)	3
		4
TFJ4	100(4P)	7.5	65	415	515	565	16-Φ22	8	555	1280	520
		11
	65(6P)	5.5
		7.5
TFJ5	100(4P)	15	80	520	620	670	16-Φ27	8	580	1382	750
		18.5
	65(6P)	11
TFJ6	100(4P)	22	95	670	780	830	16-Φ30	8	650	1594	1000
		30
	65(6P)	15
		18.5
TFJ7	100(4P)	37	110	730	830	900	16-Φ30	12	970	2105	1400
		45
	65(6P)	22
		30
