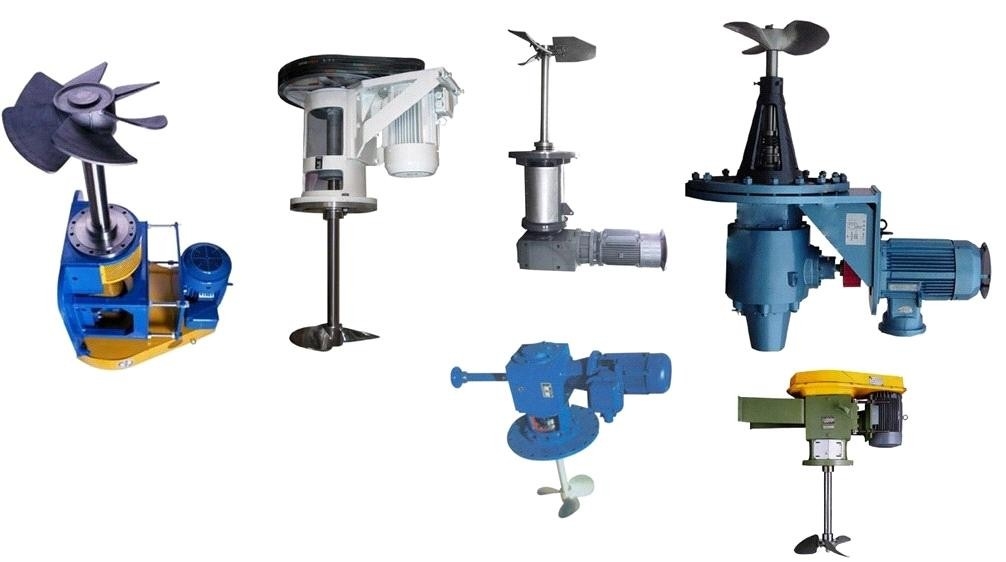

CMC1200/15 side-in magnetic transmission agitator

Large Image : CMC1200/15 side-in magnetic transmission agitator Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	GEP
Certification:	ISO
Mixer Type:	Agitator
Application:	liquid, liquid with suspended solid, viscous fluid
Additional Capabilities:	milling,granulating,coating,pigment,adhesive
type:	side entry
power:	15KW
speed:	0~500rpm
weight:	1238kg
impeller diameter:	500~700mm
certificate:	ISO9001:2000 SGS AAA
packing:	plastic inside, wooden case outside

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	Paypal,T/T, L/C
Supply Ability:	5000 Set/Sets per Year

Contact Now

Detailed Product Description

High Light:

side entry agitators

industrial agitators

1.side-in magnetic transmission agitator
2.long service life
3.delivery within 30 days
4.ISO9001:2000 SGS AAA

Feature:

1.No leaking in any time
2.Low power consumption
3.High mixing efficiency

Description:

1.This CMC1200/15 side-in magnetic transmission agitator adopts seal structure of segregation and static set and uses magnetic field lf strong magnetic to transmit torque without contact, so zero leakage can be ensured.

2. This series are commonly used in flammable, explosive, high pressure and toxic medium and other place.

Advantage:

the side-in mixer can reach the highest efficiency when consuming power and power consumption is only center mixer 1/3—2/3 .

Attention:

customers need to mark out using temperature and pressure, whether having the feature of solid particles and corrosion.

Main Technical Standards:

Series	Speed(rpm)	Power	A	B	D	D1	D2	f	n-do	DJ	Weight
CMC100	0-500	2.2	800	863	360	320	260	2	12-φ18	100-350	266
CMC100	0-500	3	800	863	360	320	260	2	12-φ18	100-350	266
CMC200	0-500	4	850	783	490	445	413	3	16-φ22	300-450	533
CMC200	0-500	5.5	850	783	490	445	413	3	16-φ22	300-450	533
CMC600	0-500	7.5	1050	819	595	555	518	3	20-φ26	400-550	795
CMC800	0-500	11	1380	1023	750	705	667	5	20-φ26	500-600	1050
CMC1200	0-500	15	1380	1023	860	810	772	5	24-φ26	500-700	1238
