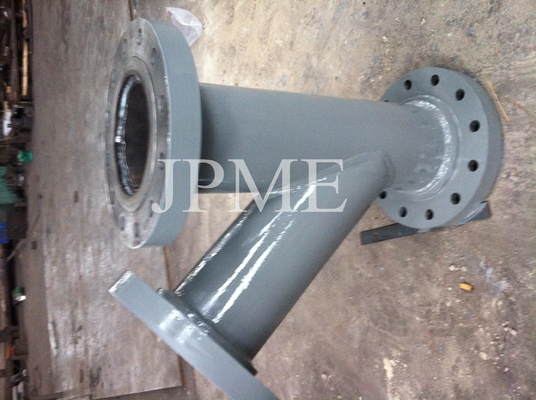

Filter

Pipeline transmission media filter is indispensable on a device, usually installed in the valve, pressure relief valves, water

valves or other devices given the import side, the medium used to remove impurities, to protect the valves and equipment

normal use. When the fluid enters the home of a certain size filter cartridge, its impurities are blocked, and clean filtrate from

the filter outlet discharge, when the need to clean, simply remove the removable cartridge, re-processed into the can,

therefore, maintenance is extremely easy to use.

Connection: flange

The filter is indispensable in the transmission medium pipe a device, usually installed in the inlet of the pressure reducing valve, relief valve, set the water level valve or other device used to eliminate impurities in the medium, in order to protect the valves and equipment normal use. When the fluid into the cartridge equipped with a filter of a certain size, its impurities are blocked, and clean filtrate from the filter outlet discharge need to be cleaned, as long as the removable cartridge removed after treatment reload, can, therefore, extremely easy to use and maintenance.

Water filters to be processed by the inlet into the body of impurities in the water deposited on a stainless steel mesh, the resulting pressure differential. Monitoring of the pressure switch in and out of the outlet pressure changes when the pressure reaches the set value, the electrical controls for the hydraulic control valve, drive motor signals and trigger the following actions: motor driven brush rotation, cleaning the filter, while the control valve open sewage, the entire cleaning process takes tens of seconds, when the cleaning is finished, close the control valve, the motor stopped turning the system back to its initial state, began to enter a filtering process. Equipment installation technicians to debug, set the filtration time and cleaning conversion time to be processed into the body of water from the inlet, the filter work properly when reaches the preset cleaning time, the electrical controls for the hydraulic control valve , the motor drive signal, causing the following: motor driven brush rotation and cleaning filter, while the control valve to open sewage, the entire cleaning process takes tens of seconds, when the cleaning is finished, close the control valve, motor stops rotating the system back to its initial state, began to enter a filtering process. Filter inside the shell is mainly composed of coarse filter, fine filter, sewage suction pipe, stainless steel brushes or stainless steel nozzle, seals, anti-corrosion coating, the axis of rotation and so on.
