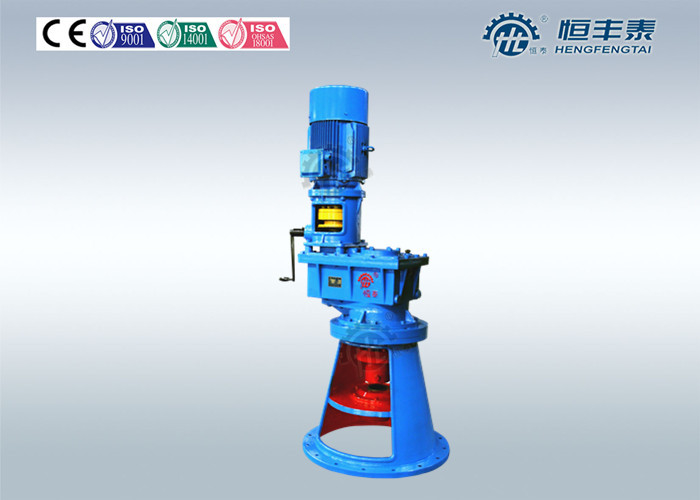

Side Entry Agitator with parallel shaft , Parallel Agitator gearbox

Quick Details:

·                                      Gearing Arrangement: Helical

·                                 Output Torque:550~32000N.m

·                                 Rated Power: 0.55~360KW

·                                 Input Speed: 4P~8P motor

·                                 Output Speed: 34~300RPM

·                                 Place of Origin: Zhejiang, China (Mainland)

·                                 Model Number:LPY series

·                                 Brand Name: HENGTAI

·                                 Color: According to customer

·                                 Ratio: 5~22

·                                 Mounting position: Vertical Flange mounted

·                                 Material for box: Cast Iron

·                                 Packing: Standard Fumigation Wooden

Other name:

Parallel Agitator gearbox

Aluminium application vertical agitator

Shaft mounted Metallurgy Blender

Description:

LPY series Industrial Mixer Blender is vertical helical hardened gear reducers with parallel axia

two stage,both has medium and low revolution with big torque for extended agitator shaft under high

efficiency and heavy load.

Your benefits:

1.     Larger bearing interval on the output shaft

2.     Combined with Oil cyling and Cooling system

3.     Connected by flaxible coupling for smooth running

4.     Low Noise

5.     Easy Disassembling

6.     Automatically coming away when handwork is stopping and not affecting opening mechanical by

        electricity.

WARRANTY:

HFT guarantees the products sold for one year from the date of delivery.

Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained

defect of material or manufacture. The parts replaced remain our property. All other compensation is

excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack

of use of the goods purchased.

Applications:

Widely used for Metallurgy,Mine,Construction,Chemical industry,Light industry etc.

For example:

                     PHOTO:LPY series applied for Aluminium Industry

Specifications:

Competitive Advantage:

      1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi

      Industry Zone,  covering area 50000 square meters and 350 staff so far.

2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are more

than 40 professional technical engineers. We had 49 items patents including 7 items of invention

patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent

and 5 items which are accepted by National SIPO wait for approval

3.   According to the globalization strategy, we have established pre-sale,after-sale and whole-process

selling network. Relying on high quality products and perfect service, our products have been

successfully applied by more than 5000 customers.
