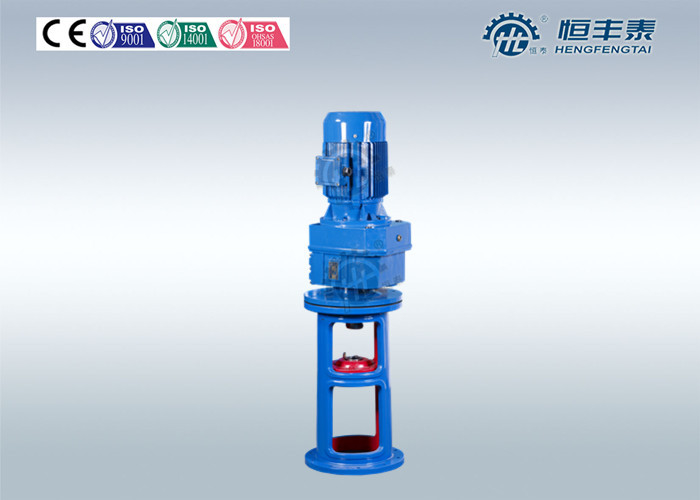

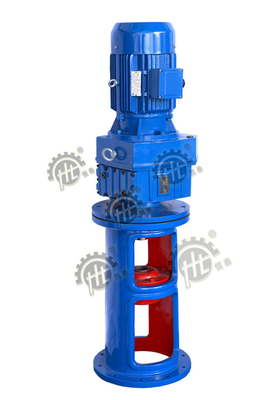

Helical Gear motor Side Entry Agitator reducer , flange mounted

Helical Gear motor Industrial Mixer agitator reducer , flange mounted

Quick Details:

·                        Gearing Arrangement:helical

·                                 Output Torque:110~15300N.m

·                                 Rated Power: 0.12~160KW

·                                 Input Speed: Accordingly

·                                 Output Speed: 10.2~330RPM

·                                 Place of Origin: Zhejiang, China (Mainland)

·                                 Model Number:HR series Mixer agitator reducer

·                                 Brand Name: HENGTAI

·                                 Color: According to customer

·                                 Ratio: 3.4~280.6

·                                 Mounting position: Horizontol foot-mounted,Vertical flange-mounted

·                                 Material for box: Cast Iron

.                                 Packing: Standard Fumigation Wooden

Other name:

Helical gearbox with wide ratio

R series agitator reducer

Agitating applications gearbox

Descriptions:

HR series Industrial Mixer Blender can be single-stage or multi-stage with both mounting ways foot-mounted

and flange-mounted.For high output speeds,the exclusively single-stage gear units HRX57-HRX107 offer

compact solutions for your system design.As for the two-stage and three-stage,our complete range of

helical gearmotors provides the optimum size and power solution for every drive task.

Your benefits:

1.     High power density

2.     Long service life

3.     Strong capacity of being overloaded.

4.     Precise division and wide selection range for transmission ratio.

Warranty:

HFT guarantees the products sold for one year from the date of delivery.

Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained

defect of material or manufacture. The parts replaced remain our property. All other compensation is

excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack

of use of the goods purchased.

Applications:

Agitating applications,metallurgy industry,pharmacy industry etc.

Such as:

Photo:HR series Industrial Mixer Blender applied for Metallurgy Industry

Specification:

HR series Industrial Mixer Blender single-stage:

HR series Industrial Mixer Blender Multi-stage:

Competitive Advantage:

       1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in

       Binghai& Sanxi Industry Zone, covering area 50000 square meters and 350 staff so far.

  2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are more

than 40 professional technical engineers. We had 49 items patents including 7 items of invention

patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent

and 5 items which are accepted by National SIPO wait for approval.

  3.  According to the globalization strategy, we have established pre-sale,after-sale and whole-process

selling network. Relying on high quality products and perfect service, our products have been

successfully applied by more than 5000 customers.
