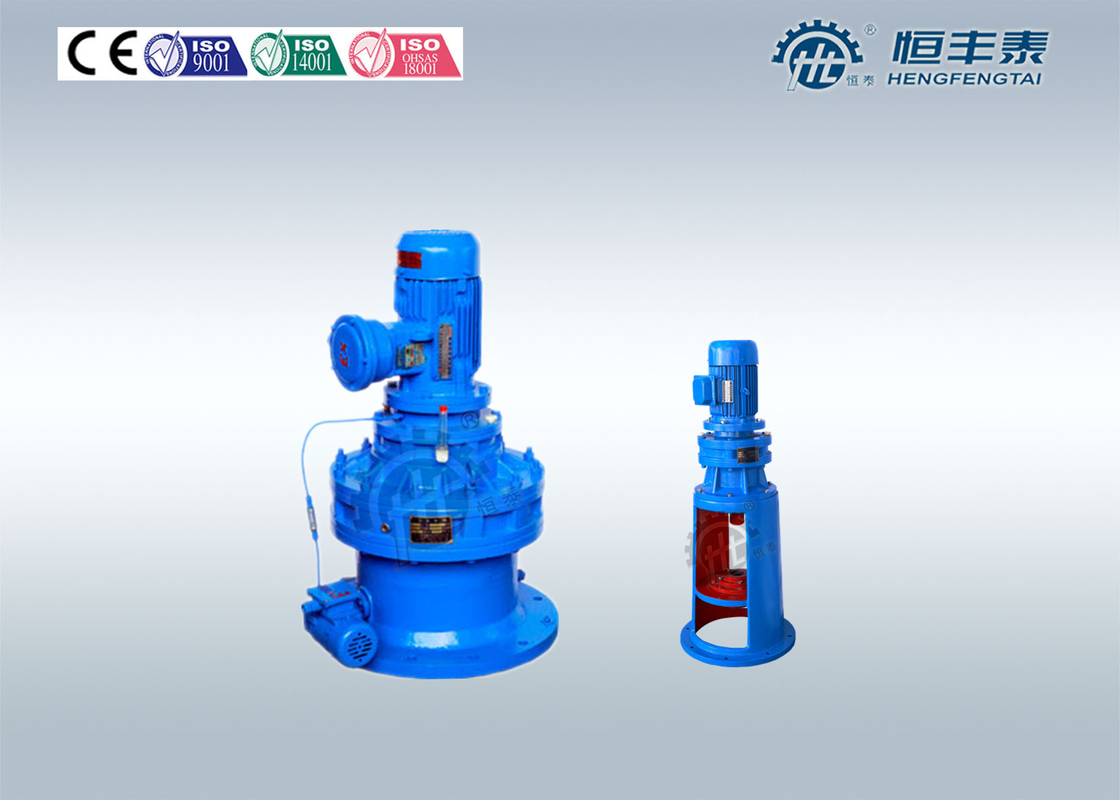

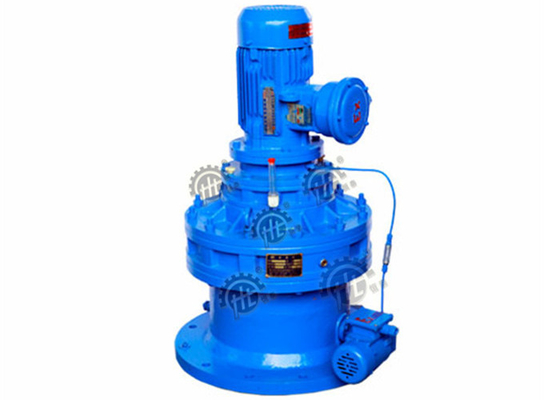

Flange Mounted Inline Cycloidal Gear Reducer , High Speed Reduction Gear Boxes

Flange Mounted Inline Cycloidal Gear Reducer , High Speed Reduction Gear Boxes





Quick Details:





 ·                                           Gearing Arrangement: Cycloid



·                                 Output Torque: 70Nm-20000 N.m



·                                 Rated Power: 0.37-55KW



·                                 Input Speed: 960-1500 rpm



·                                 Output Speed: 11-167RPM



·                                 Place of Origin: Zhejiang, China (Mainland)



·                                 Model Number: HXL1-HXL11



·                                 Brand Name: HENGTAI



·                                 Color: According to customer



·                                 Ratio: 9-87



·                                 Mounting position: Foot mounted or flange mounted



·                                 Material for box: cast iron



·                                 Packing: Strong wooden cases for exporting



·                                 Output shaft:Solid output shaft



.                                 Output shaft diameter: 25-130MM







Other name:





 Cyclo gearmotor



       cyclo gearbox



       inline gearmotor







Descriptions:





1) Structure: base-mounted, flange-mounted



2) Chief part material: bearing steel



3) Simultaneous multi teeth operation, strong capability for resisting overloading, reliable in operation and



   long life.



4) Input and output shafts in the same axis for small volume



5) Smooth and stable run and low noise



6) High speed ratio and efficiency



7) Single stage: 11,17, 23, 29, 35,43, 59,71,87



8) Double stage: 121, 187, 289, 385, 473, 595



9) Input power: 0.25-18.5Kw



10) Output torque: up to 5000N.m







Warranty:





HFT guarantees the products sold for one year from the date of delivery.



Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained



defect of material or manufacture. The parts replaced remain our property. All other compensation is



excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack



of use of the goods purchased.







Applications:





Ceramic, drinking, food, light industry, textile, mineral and metallurgical, lifting and transportation, printing



and dyeing industry etc.





Specifications:





Model	Ratio	Power	Max torque
HXL1	9-87	0.25-0.37kw	70N.m
HXL2	9-87	0.25-1.5kw	150N.m
HXL3	9-87	0.55-2.2kw	250N.m
HXL4	9-87	0.75-4kw	500N.m
HXL5	9-87	1.5-11kw	1000N.m
HXL6	9-87	2.2-15kw	2000N.m
HXL7	11-87	3-15kw	2700N.m
HXL8	11-87	4-18.5kw	4500N.m
HXL9	11-87	4-22kw	9000N.m
HXL10	11-87	11-45kw	12000N.m
HXL11	11-87	15-55kw	20000N.m





Main models of this kind of MB series cyclo gearbox :

MBW , MBWY

MBL(F),MBL(F)Y

MBW-C

MBL(F)-C,MBL(F)Y-C

MBWY-CT

MB-WJ and MBY-XW







Competitive Advantage:





      1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



      Industry Zone, covering area 50000 square meters and 350 staff so far.







2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are more



than 40 professional technical engineers. We had 49 items patents including 7 items of invention



patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent



and 5 items which are accepted by National SIPO wait for approval.







3.  According to the globalization strategy, we have established pre-sale,after-sale and whole-process



selling network. Relying on high quality products and perfect service, our products have been



successfully applied by more than 5000 customers.
