Synchronous belt Side Entry Agitator for crude oil storage tank
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | side entry mixers,industrial agitators |
||
|---|---|---|---|

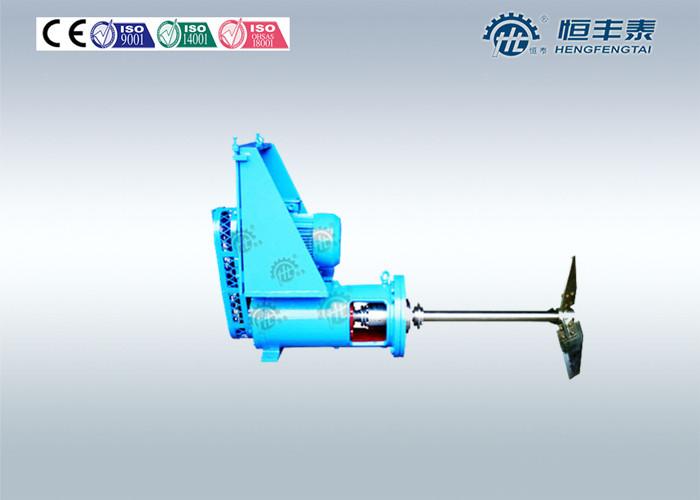

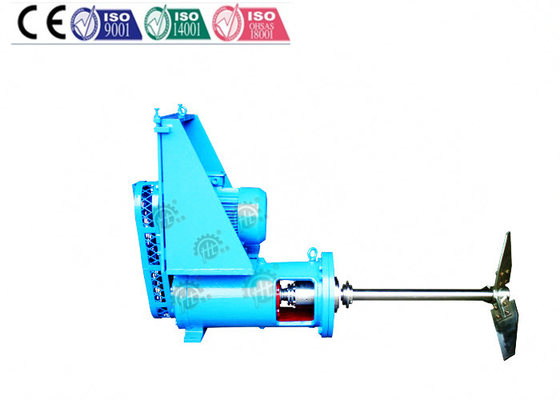

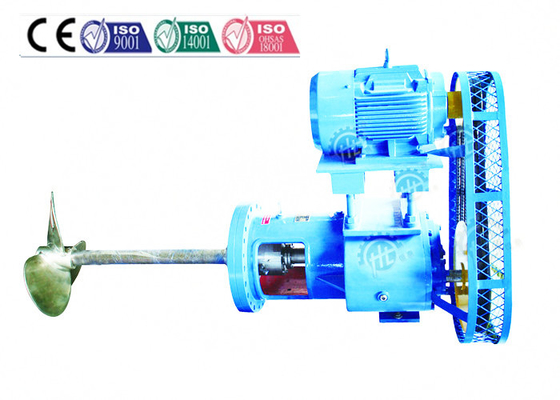

Synchronous belt Side Entry Agitator for crude oil storage tank
Quick Details:
|
Gearing Arrangement |
Helical |
|
Output Torque |
45 < M < 850N.m |
|
Rated Power |
0.55 < P< 22 KW |
|
Output Speed |
140 < n< 360 RPM |
|
Place of Origin |
Zhejiang, China (Mainland) |
|
Model Number |
TC series |
|
Brand Name |
HENGTAI |
|
Package |
Standard Fumigation Wooden |
|
Ratio |
4.17 < i < 7.5 |
|
Mounting position |
leaning mounted |
Descriptions:
The input part of TC series Side Entry Agitator is connected by synchronous belt,which is a loading
protection for the equipment and input part drives.TC series Side Entry Agitator has the large ratio range
because of the combination of the gear and synchronous belt.TC series Siede Entry Agitator is structure
compact and the efficiency of transmission can reach 95%.
Applications:
Mainly applied for :
1. FGD Industry
2. Chemical Industry
3. Machinery for Food Industry etc.
Other name:
Side enter agitator TC series reducer with synchronous belt
Leaning mounted agitator gear box for crude oil storage tank Industry
Side enter agitator reducer applied for Desulfurization
THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER
|
Breakdown |
Possible cause |
The way of settlement |
|
The motor does not run in case of loading |
Voltage is too low |
Check to see if the wire is too long or too thin |
|
Gear is damaged |
Repair it in special factory |
|
|
Work with overload |
Discharge load |
|
|
Very hot |
Work with overload |
Discharge load |
|
Start and stop too many |
Discharge load |
|
|
Bearing is damaged |
Reduce using frequency |
|
|
Voltage is too high or too low |
Repair or replace |
|
|
Loud noise |
If the noise is loud and continuous, the bearing is damaged or the gear damaged |
Repair it in special factory |
|
If the noise is loud occasionally, the gear must be damaged or something else block |
Contact with the service institution |
Warranty:
HFT guarantees the products sold for one year from the date of delivery.
Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained
defect of material or manufacture. The parts replaced remain our property. All other compensation is
excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack
of use of the goods purchased.
Competitive Advantage:
1. HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi
Industry Zone, covering area 50000 square meters and 350 staff so far.
2. As the leader in gear reducer domestically, we are committed to R&D all the time. There are more
than 40 professional technical engineers. We had 49 items patents including 7 items of invention
patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent
and 5 items which are accepted by National SIPO wait for approval.
3. According to the globalization strategy, we have established pre-sale,after-sale and whole-process
selling network. Relying on high quality products and perfect service, our products have been
successfully applied by more than 5000 customers.
