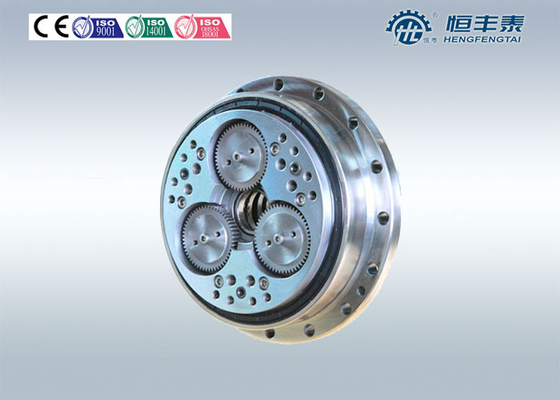

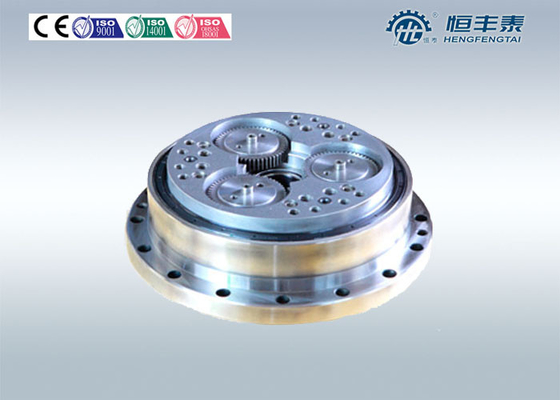

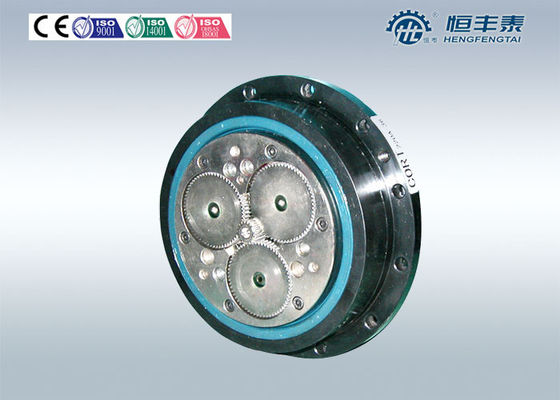

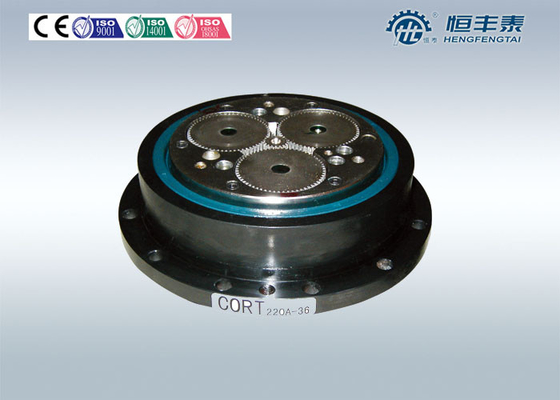

RV-C Cycloidal Hollow Shaft Gear Reducer Gearbox With Servo Motor , Low Backlash
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | speed reduction gearbox,cycloidal speed reducer |
||
|---|---|---|---|
RV-C Cycloidal Hollow Shaft Gear Reducer Gearbox With Servo Motor , Low Backlash
Quick Details:
The RV-C Hollow Shaft reducer provides a center thru-hole
with a component type configuration for more system design flexibility
and greater space saving options.
The unit incorporates rolling contact elements to provide high efficiency, long life and extremely low backlash as well as an off-center second stage reduction designed to limit vibration and inertia while increasing ratio options.
The reducer also incorporates a set of large, internal angular support bearings that provide large moment capacities and negate the need for external support devices – reducing design time and installation costs.
Specifications
| Performance Specifications | |
| Gear Ratio | 35.61 X : 1 |
| Rated Output Torque | 27775 In-lbs |
| Maximum Input Power | 8.40 HP |
| Backlash | 1.0000 arcmin |
| Efficiency | 85.00 % |
| Gearing | Spur; Planetary; Cycloidal |
| Reducer and Motor Mounting | |
| Reducer Style | Motor Mount / Gearhead |
| Flange(s) | Flange(s) |
| NEMA Mount | NEMA Mounting Flange |
| Input and Output Configuration | |
| Reducer Input | Coupling or Bushing; Gear |
| Reducer Output | Hollow shaft; 377 B.C. M6 |
| Shaft Alignment | Parallel Offset |
| Housing Dimensions | |
| Length | 3.90 inch |
| Height | 15.75 inch |
| Weight | 121 lbs |
RV-C SERIES GEARBOX :: DIMENSIONS
| Model | A Ø inch (mm) | B Ø inch (mm) | C Ø inch (mm) | D Ø inch (mm) | E Ø inch (mm) | F inch (mm) | G inch (mm) | H inch (mm) | I inch (mm) | J inch (mm) | K Ball Bearing |
| 10 | 5.79 (147) | 4.33 (110) | 1.34 (34) | 1.22 (31) | 5.75 (146) | 1.95 (49.5) | 0.16 (4) | 0.39 (10) | 0.67 (17) | 0.76 (19.2) | 6807 |
| 27 | 7.17 (182) | 5.51 (140) | 1.85 (47) | 1.69 (43) | 7.13 (181) | 2.26 (57.5) | 0.20 (5) | 0.39 (10) | 0.65 (16.6) | 0.77 (19.5) | 6810 |
| 50 | 8.76 (222.5) | 6.93 (176) | 2.60 (66) | 2.24 (57) | 8.74 (222) | 2.68 (68) | 0.20 (5) | 0.47 (12) | 0.80 (20.2) | 0.94 (23.8) | 6813 |
| 100 | 9.86 (250.5) | 7.83 (199) | 2.87 (73) | 2.80 (71) | 9.84 (250) | 2.86 (72.6) | 0.20 (5) | 0.47 (12) | 0.78 (19.9) | 0.83 (21.15) | 6816 |
| 200 | 13.66 (347) | 10.24 (260) | 3.94 (100) | 3.54 (90) | 1362 (346) | 4.02 (102) | 0.28 (7) | 0.39 (10) | 1.23 (31.2) | 1.31 (33.2) | 6820 |
| 320 | 17.24 (438) | 13.39 (340) | 5.51 (140) | 5.43 (138) | 17.32 (440) | 3.98 (101) | 0.22 (5.5) | --- | 1.46 (37) | 1.71 (43.5) | 6830 |
| 400 | 19.09 (485) | 13.78 (350) | 5.51 (140) | 5.43 (138) | --- | 4.35 (110.5) | 0.24 (6) | --- | 1.54 (39) | 1.71 (43.5) | 6830 |
| 500 | 18.70 (520) | 15.35 (390) | 5.91 (150) | 5.43 (138) | --- | 5.14 (130.5) | 0.30 (7.5) | --- | 1.87 (47.5) | 1.97 (50) | 6832 |
| 900 | 22.44 (570) | 15.35 (390) | 5.31 (135) | --- | --- | 6.50 (165) | 0.89 (22.5) | --- | --- | --- | --- |
-
Other name:
RV-E welding positioner gear reducer
RV-C industrial robot drive with servo motor
RV nabtesco Azimuth & Elevation can be precisely transmission reducer
