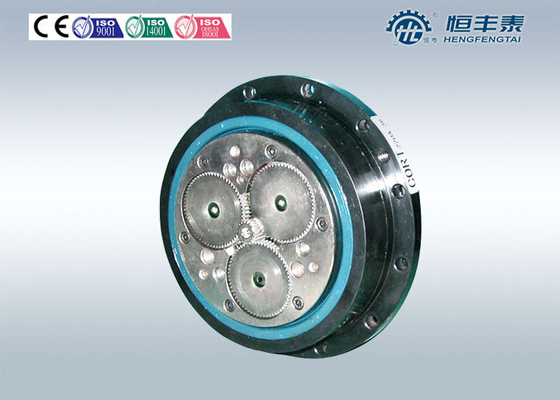

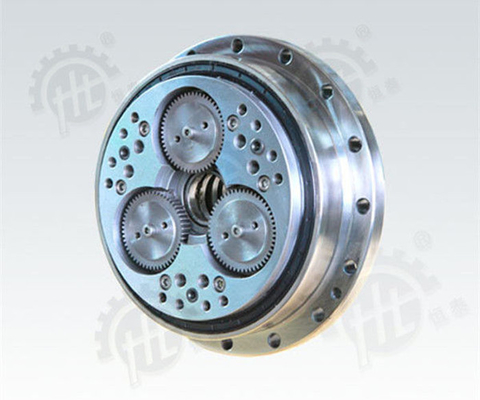

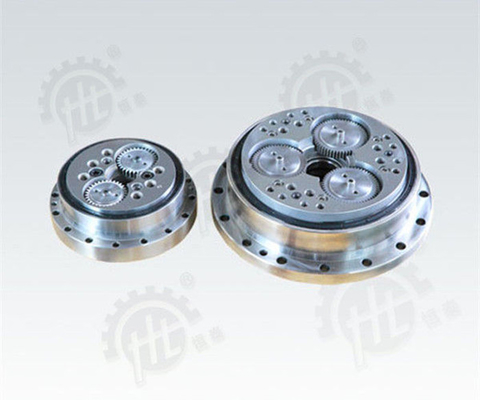

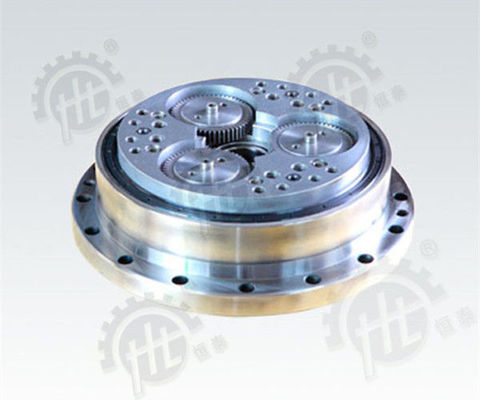

Low Backlash Reduction Gearbox Cyclo Gear Reducer Drive 2 Stage Gear Head

Low Backlash Reduction Gearbox Cyclo Gear Reducer Drive 2 Stage Gear Head

Quick Details:

• Zero-backlash reduction gears
• High-moment capacity
• Excellent positioning accuracy and positioning repeatibility
• High torsional and tilting stiffness
• Small dimensions and weight
• High reduction ratios
• High effeciency
• Long lifetime
• Easy assembly

• Other name:



  Rv-e nabotesco 6 axis drive robot arm

  Rv-c center thru hole drive gear head

  Spinea E series positioner drive reducer

Descriptions:

Case

Threaded and through holes in case

Input flange connection

Completely sealed reduction gear

Input shaft design

Input shaft offers following versions:

• a) hollow shaft
• b) according to special request

Installation and operation characteristics

Hollow shaft reduction gears.

Larger hole in input shaft allows the cables, tubes or additional shaft to pass through the reductiongear. Suitable for application where rotation of the input shaft is achieved by using a timing belt or similar arrangement.

Performance characteristics:

STANDARD REDUCTION RATIOS

Applications Field:

Factory capacity:
