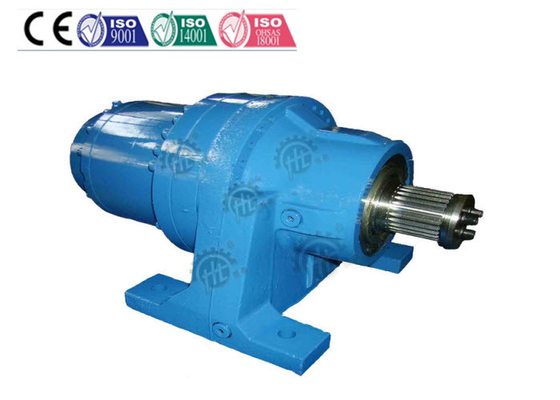

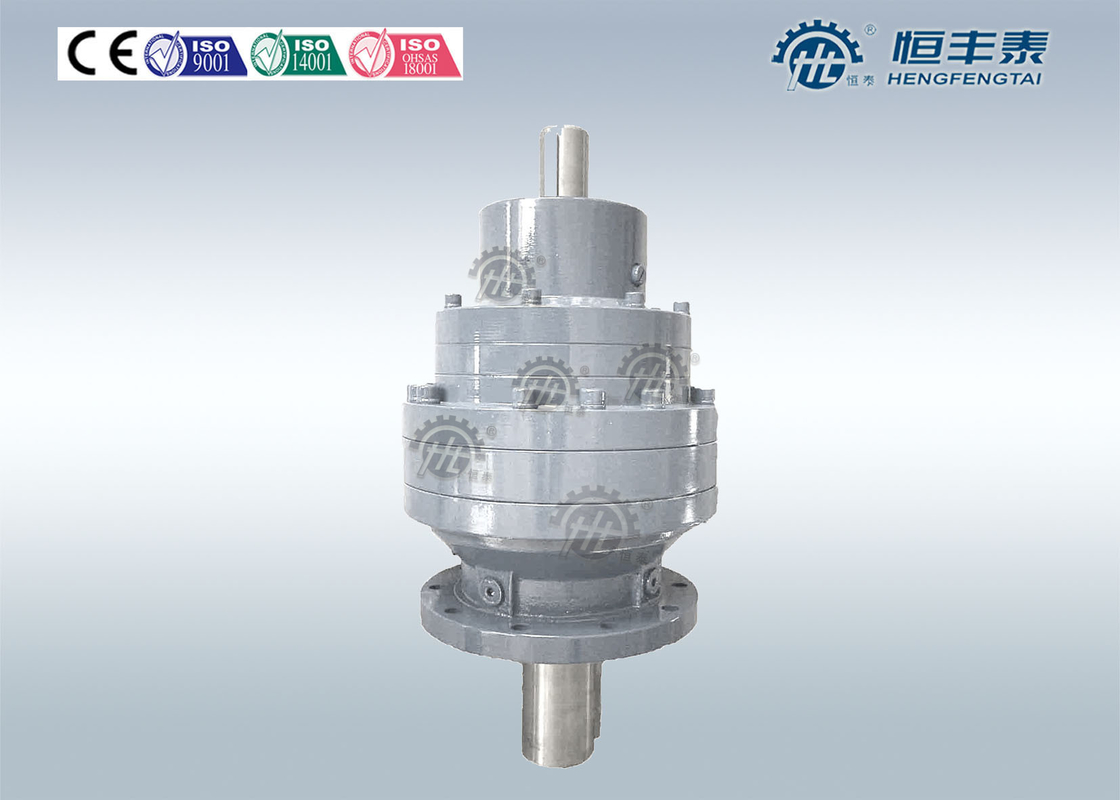

Structure Compact Planetary Reduction Gearbox 300 Series With High Torque Density

Structure Compact Planetary Reduction Gearbox 300 Series With High Torque Density







Quick Details



Input Speed	500rpm-1500rpm
Output Speed	0.17rpm-431rpm
Mounting position	Foot, Flange or Shaft mounted
Keyed Parallel	inch series
Splined solid, Splined hollow (metric series)
Hollow shaft with Shrink disc (metric series)





Descriptions:



Their planetary drive train makes them the ideal choice for all the severe duty applications where shock



loadings and impacts are more the rule than the exception. The product configuration is highly versatile,



due to several options as far as the mounting, the gear layout, the output shaft and the motor interface. All



the features are available for each of the 18 finely spaced frame sizes, spanning over the 1.000 -



1.400.000 Nm torque range.





Applicable AC motors:



Integral motors - M series - with or without brake



IEC-standard motors - BN series - with or without brake



NEMA-Motors up to frame size 624-365T

Input Options:



NEMA-Motor adaptor



IEC-normalized Motor adaptor



Parallel keyed shaft with or without fan cooling - inch dims.





Hydraulic Brake



Hydraulically released parking brake on request



Electric Brake



DC and AC type



Note: Same mounting install dimensions to Bonfiglioli 300 series shaft Planetary gear motors From 300-325





Applications:





 Wind Power Equipment:



Transportation facility, lifting equipment, and variable pitch), Coal Mine Machinery(Excavator), etc





Maintenance:



After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.



Pls do not mix the mineral oil and synthetic oil.



Pls check the oil level in regular time.





The cause for breakdown and settlement of reducer:



Breakdown	Possible cause	The way of settlement
The motor does not run in case of loading	Voltage is too low	Check to see if the wire is too long or too thin
	Gear is damaged	Repair it in special factory
	Work with overload	Discharge load
Very hot	Work with overload	Discharge load
	Start and stop too many	Discharge load
	Bearing is damaged	Reduce using frequency
	Voltage is too high or too low	Repair or replace
Loud noise	If the noise is loud and continuous, the bearing is damaged or the gear damaged	Repair it in special factory
	If the noise is loud occasionally, the gear must be damaged or something else block	Contact with the service institution





Warranty:



HFT guarantees the products sold for one year from the date of delivery. Warranty is limited to repair or



replacement, free at our plant, of defective parts due to an ascertained defect of material or manufacture.



The parts replaced remain our property. All other compensation is excluded, nor can any direct and/or



indirect damage be claimed of any nature, also for the temporary lack of use of the goods purchased.





Competitive Advantage:



       1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



      Industry Zone, covering area 50000 square meters and 350 staff so far.



  2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are



more than 40 professional technical engineers. We had 49 items patents including 7 items of



invention patent, 30 items of utility models, 1 item of appearance design, 2 items of international



invention patent and 5 items which are accepted by National SIPO wait for approval.



  3.  According to the globalization strategy, we have established pre-sale,after-sale and whole-



process selling network. Relying on high quality products and perfect service, our products have



been successfully applied by more than 5000 customers.
