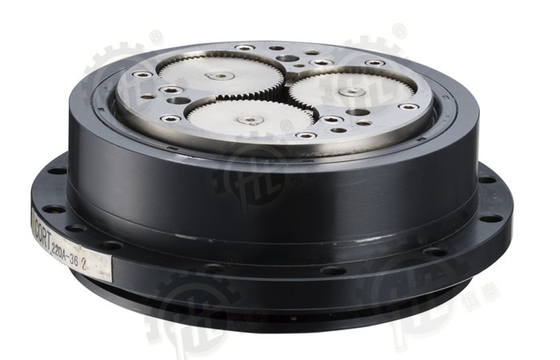

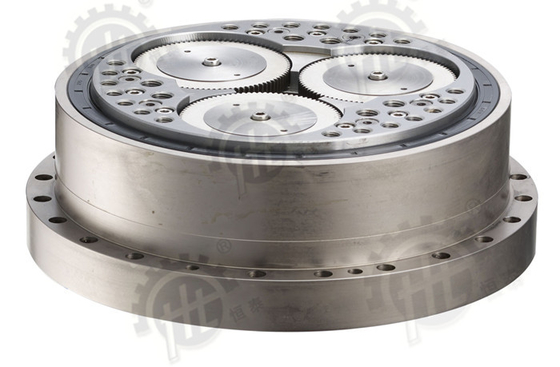

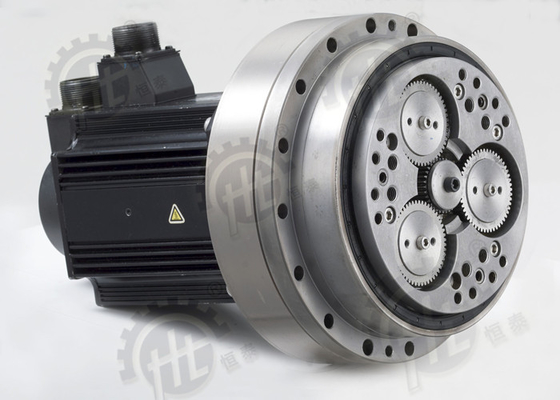

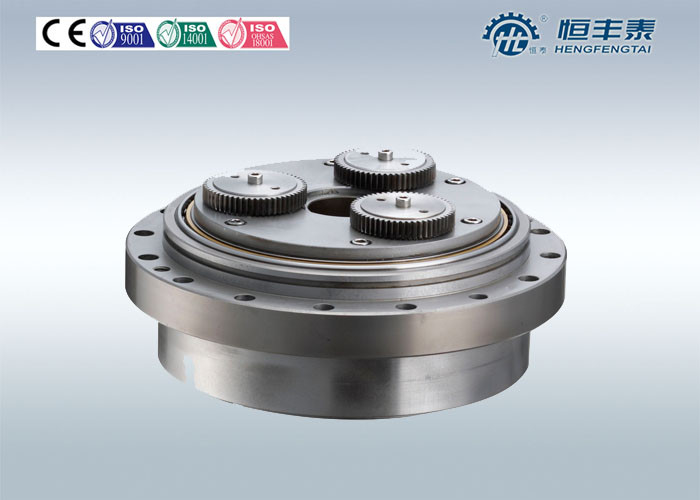

Solid Shaft Motor Cycloidal Gear Reducer Gearbox Spinea Twinspin Similar TS80

Solid Shaft Motor Cycloidal Gear Reducer Gearbox Spinea Twinspin Similar TS80

Quick Details:

Advantages

• Zero-backlash reduction gears
• High-moment capacity
• Excellent positioning accuracy and positioning repeatibility
• High torsional and tilting stiffness
• Small dimensions and weight
• High reduction ratios
• High effeciency
• Long lifetime
• Easy assembly

Case

• a) TB- threaded holes in case ¹⁾
• b) TC- threaded and through holes in case ²⁾

Input flange connection

Shaft sealing / adapter flange offers following versions:

• a) motor connection flange
• b) sealed input cover
• c) without flange

Input shaft design

Input shaft offers following versions:

• a) shaft with key-way
• b) according to special request

Installation and operation characteristics

A wider range of modular configurations

Other name:

Spinea T series robot transmission reducer

Spinea twinspin robot gear box

Spinea drive spin gearbox

Specifications:

Note:

This is preliminary series, and special dimension can be agreed by the customer.

Applications Field:

Industrial robots (welding, stowage, loading)

High-end CNC equipment (machine, pipe bending machine)

Turntable, displacement machine

The printer

Radar antenna positioning device

Solar power systems
