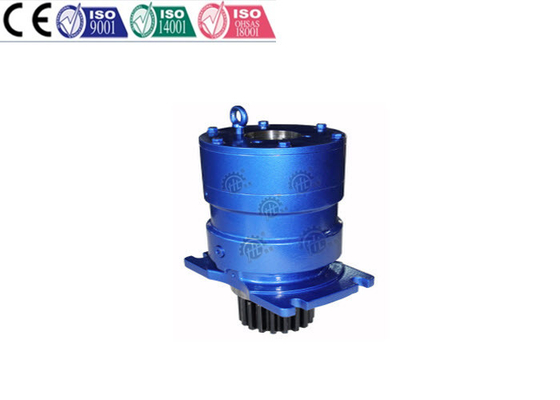

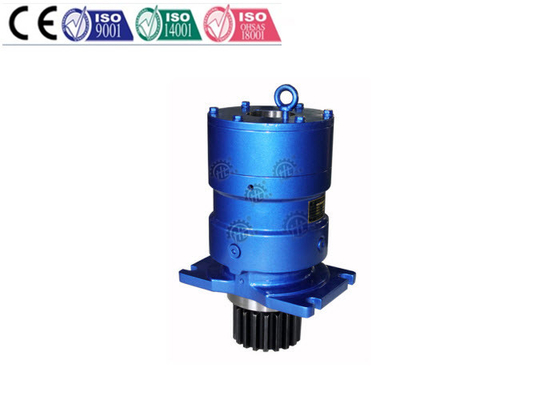

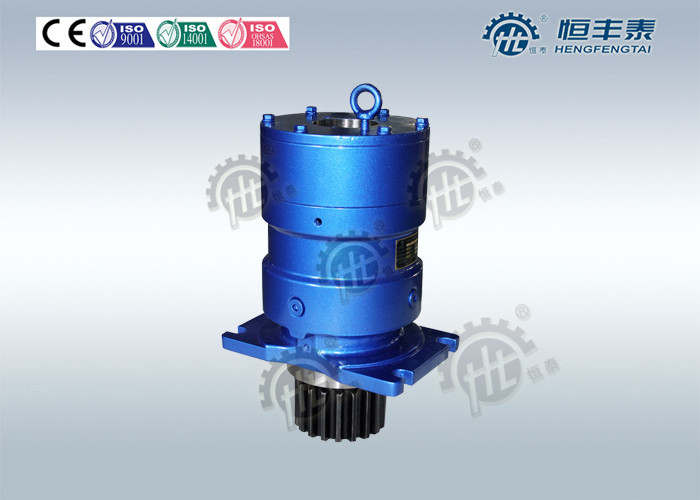

Low Speed Shaft Planetary Gear Reducer Power Transmission Gearbox

Large Image : Low Speed Shaft Planetary Gear Reducer Power Transmission Gearbox Get Best Price

Product Details:

Place of Origin:	Wenzhou City,Zhejiang,China
Brand Name:	Hengtai
Certification:	CE,ISO9001:2008,ISO14001,GB28001
Model Number:	NGW series

Payment & Shipping Terms:

Minimum Order Quantity:	FIVE PIECES
Price:	PLS REFER TO PRICE TABLE
Packaging Details:	1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time:	25-35 days
Payment Terms:	Paypal,T/T, L/C
Supply Ability:	TWO THOUSAND PCS PER MONTH

Contact Now

Detailed Product Description

High Light:

inline planetary gear reducer

planetary reduction gearbox

Low Speed Shaft Planetary Gear Reducer Power Transmission Gearbox

Quick Details:

Torque range:	≤354000N.m
Power range:	1~3000kw
Input Speed:	750,1000,1500RPM
Housing hardness:	HBS190-240

Descriptions:

300 series Planetary gear reducer is widely used in various kinds of industry transmissions such as vessels

harbor facilities, metallurgy, mine, engineering machinery etc. The product is designed according to modern

theory, which makes it simpler, smaller and more economical than traditional. There are many forms of

connection and output that can match the motors, hydraulic motors. Low speed shaft to install load bearing,

especially for applications where heavy shock loads.

Benefits:

1.several tooth drive ,high strengh and high credibility

2.the material of main parts is bearing steel

3.litter inertia adapts reducer intvertering

4.low noise high efficiency ,single stage efficiency are more than 92%.

5.input shaft and output shaft in the same axis,small volume

Applications:

Roller presses

Slewing gear drives

Bucket wheel drives

Apron conveyor drives

Agitator drives

Storage:

1: Pls do not store in outdoor.

2: Pls put cardboard, wood or other material between the products and floor. the gear box cannot directly

touch the floor.

WARRANTY:

HFT guarantees the products sold for one year from the date of delivery.

Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained

defect of material or manufacture. The parts replaced remain our property. All other compensation is

excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack

of use of the goods purchased.

THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER

Breakdown	Possible cause	The way of settlement
The motor does not run in case of loading	Voltage is too low	Check to see if the wire is too long or too thin
	Gear is damaged	Repair it in special factory
	Work with overload	Discharge load
Very hot	Work with overload	Discharge load
	Start and stop too many	Discharge load
	Bearing is damaged	Reduce using frequency
	Voltage is too high or too low	Repair or replace
Loud noise	If the noise is loud and continuous, the bearing is damaged or the gear damaged	Repair it in special factory
Loud noise	If the noise is loud occasionally, the gear must be damaged or something else block	Contact with the service institution

Competitive Advantage:

1. HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi

Industry Zone, covering area 50000 square meters and 350 staff so far.

2. As the leader in gear reducer domestically, we are committed to R&D all the time. There are more

than 40 professional technical engineers. We had 49 items patents including 7 items of invention

patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent

and 5 items which are accepted by National SIPO wait for approval

3. According to the globalization strategy, we have established pre-sale,after-sale and whole-process

selling network. Relying on high quality products and perfect service, our products have been

successfully applied by more than 5000 customers.
