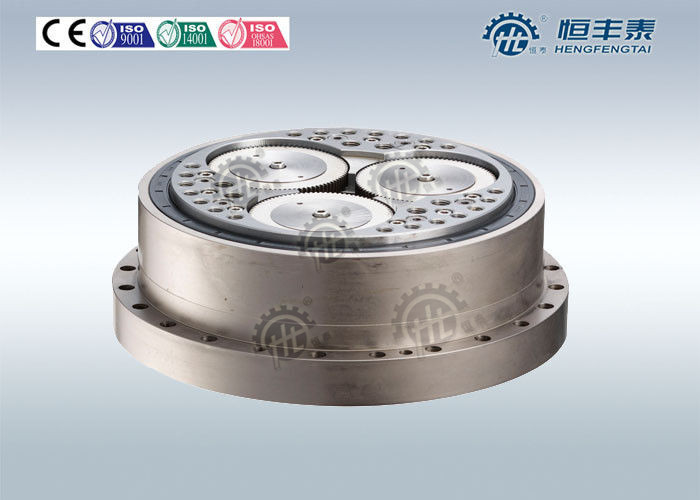

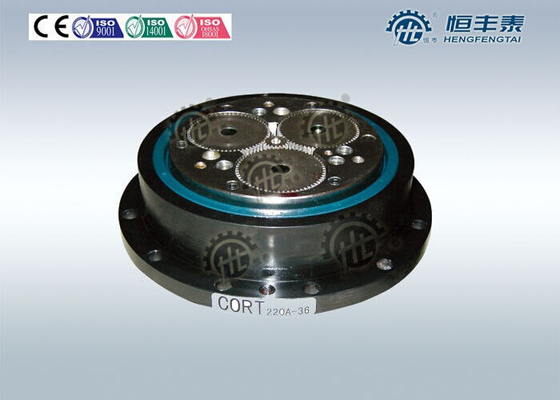

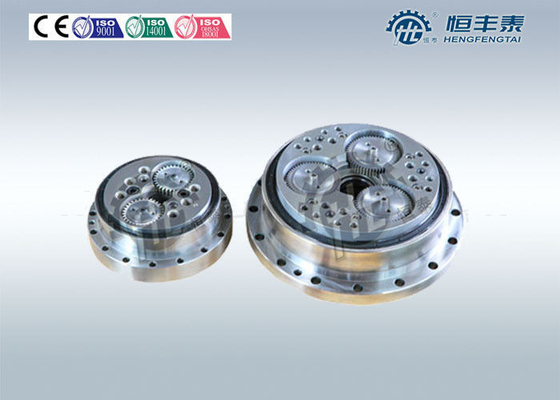

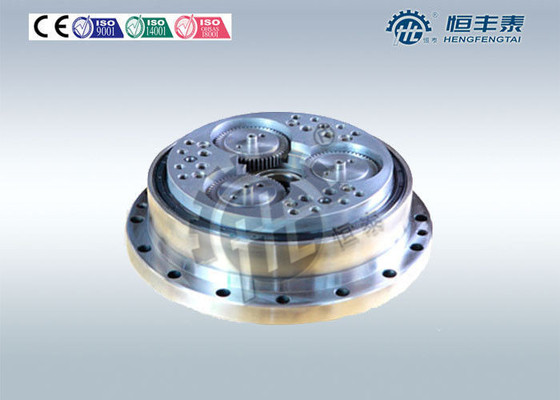

Mechanical Cycloidal Gear Reducer Unit Compressor Gearbox Of Oscillatory Transmission

Mechanical Cycloidal Gear Reducer Unit Compressor Gearbox Of Oscillatory Transmission





Quick Details:





Gearing Arrangement: CORT compound Oscillatory Roller Transmission



Output Torque: 150-3800Nm



Place of Origin: Zhejiang, China (Mainland)



Model Number: CORT130-CORT350



Brand Name: HENGTAI



Color: According to customer



Ratio: 40-180



Effiency at transmission: 80~90%



Packing: 1pcs packed in one small box, 7-8 small boxes packed in one wooden crate









Other name:



CORT compound robot oscillatory roller transmission reducer



CORT transmission industrial planetary gearbox



CORT compound oscillatory Roller transmission industrial planetary gearbox







Descriptions:





mechanical oscillatory transmission cycloidal gear reducer unit compressor gearbox is based on the



drive of oscillatory transmission, a seriesgear branch input multi-synchronous input shaft roller power



transmission to ensure that it covers a high-precision drive, high stiffness, high load characteristics. The



products were patents, patent No.:97100463.3 Because of its superior performance, roll tooth drive can



be widely used in petrochemical, metallurgical mine, light pharmaceutical, food oil, textile printing and



dyeing, overweight, such as transportation and construction machinery industry machinery used for



deceleration. If necessary, it can also be used with the growth rate, It is worth mentioning that the roll



transmission gear has extremely carrying capacity, can achieve high-precision, high-stiffness compound



rolling live transmission gear was developed and patents for invention was accessed. Such precision



reducer is particularly applicable to robots, CNC equipment, aerospace equipment, defense equipment



and weapons requirements of high-precision control of the transmission system.







Performance characteristics:





1. Multi-tooth meshing-High load capacity



2. Simple Structure. No indispensable output institutions as in cycloid reducer



3. High-speed motor can be connected to drive, and this would be benefit to the requirement of sensitivity



of intelligent control system



4. Basically can achieve rolling meshing, transmission with high efficiency. CORT reducer normally be



used in the speed ratio of (i=40~180),the mechanical efficiency of 80-90%



5. Bigger transmission ratio, compact structure



6. Big output rigidity, slight backlash



7. When do transmission, torque fluctuations less.





Specifications:



Model	Load torque	ratio	dimension
			D	d	c	L	A
CORT130	150	40-100	130	120	120	65	16
CORT160	350	40-120	160	130	130	75	20
CORT220	650	40-130	220	160	160	90	24
CORT250	1400	50-160	250	200	200	100	28
CORT300	2600	55-170	300	250	250	120	34
CORT350	3800	55-180	350	300	300	130	36





Note:



This is preliminary series, and special dimension can be agreed by the customer.





Applications Field:



Industrial robots (welding, stowage, loading)



High-end CNC equipment (machine, pipe bending machine)



Turntable, displacement machine



The printer



Radar antenna positioning device



Solar power systems













Product Test:





The CORT precision trasmission cycloidal gear reducer samples which is designed and developed by



our company have been rigorous performance tested. The test include: transmission characteristics



experimentation, precision and backlash testing, drive stiffness testing and testing.





The performance test commissioned by the :National Reseach Center of harmonic, the state keystone



industrial harmonic drive base, Beijing Zhongjikemei Harmonic Drive company LTD:responsible. It is



worthy to note that: The experimental results show that , CORT reducer precision and backlash are less



than 1 arcmin, and it has reached the international advanced standards.







We control every tiny aspect to maintain high quality:









Competitive Advantage:





1: Multitooth engagement



2: Large output, litter backlash



3: High ratio, compact structure





Storage:



1. Pls do not store in outdoor.



2. Pls put cardboard, wood or other material between the products and floor. the gear box cannot directly



touch the floor.







WARRANTY:



1. HFT guarantees cycloidal gear reducer sold for one year from the date of delivery.



2. Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained



defect of material or manufacture. The parts replaced remain our property. All other compensation is



excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack



of use of the goods purchased.
