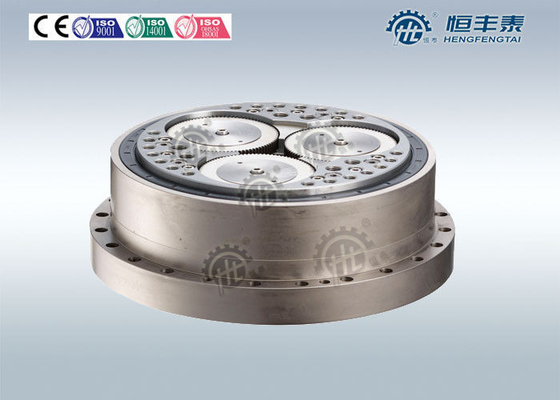

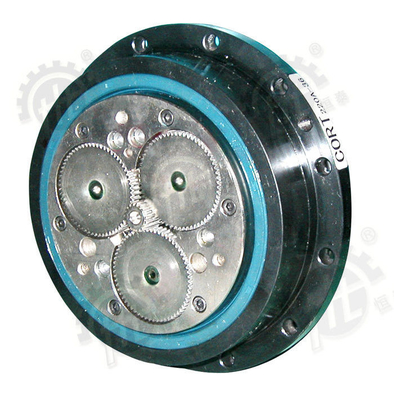

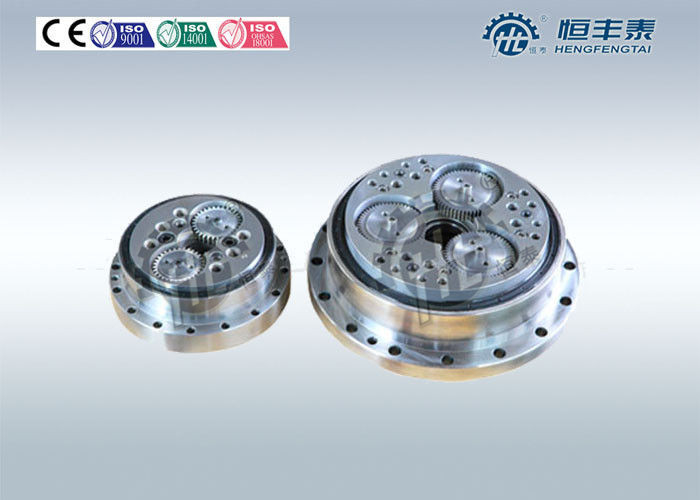

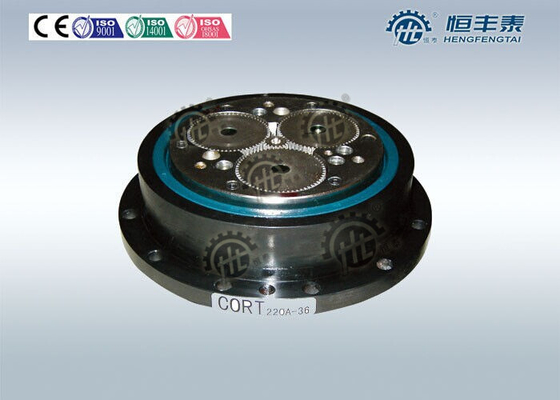

Precision Transmission Cycloidal Gear Reducer / Cyclo Gear Box For Industrial Robots

Precision Transmission Cycloidal Gear Reducer / Cyclo Gear Box For Industrial Robots





Quick Details:



• Gearing Arrangement: CORT compound Oscillatory Roller Transmission

• Output Torque: 150-3800Nm

• Place of Origin: Zhejiang, China (Mainland)

• Model Number: CORT130-CORT350

• Brand Name: HENGTAI

• Color: According to customer

• Ratio: 40-180

• Packing: Strong exporting wooden case and pallets

• Other name:



  CORT industrial robot arm gear reducer

  CORT transmission gear reducer

  CORT compound oscillatory Roller transmission reducer





Descriptions:





High precision transmission cycloidal gear reducer used for industrial robots is based on the drive of



oscillatory transmission, a series gear branch input multi-synchronous input shaft roller power



transmission to ensure that it covers a high-precision drive, high stiffness, high load characteristics. The



products were patents, patent No.:97100463.3





Because of its superior performance, roll tooth drive can be widely used in petrochemical, metallurgical



mine, light pharmaceutical, food oil, textile printing and dyeing, overweight, such as transportation and



construction machinery industry machinery used for deceleration. If necessary, it can also be used with the



growth rate, It is worth mentioning that the roll transmission gear has extremely carrying capacity, can



achieve high-precision, high-stiffness compound rolling live transmission gear was developed and patents



for invention was accessed. Such precision reducer is particularly applicable to robots, CNC equipment,



aerospace equipment, defense equipment and weapons requirements of high-precision control of the



transmission system.







Performance characteristics:





1. Multi-tooth meshing-High load capacity



2. Simple Structure. No indispensable output institutions as in cycloid reducer



3. High-speed motor can be connected to drive, and this would be benefit to the requirement of sensitivity



of intelligent control system



4. Basically can achieve rolling meshing, transmission with high efficiency. CORT reducer normally be used



in the speed ratio of (i=40~180),the mechanical efficiency of 80-90%



5. Bigger transmission ratio, compact structure



6. Big output rigidity, slight backlash



7. When do transmission, torque fluctuations less.





Specifications:



Model	Load torque	ratio	dimension
			D	d	c	L	A
CORT130	150	40-100	130	120	120	65	16
CORT160	350	40-120	160	130	130	75	20
CORT220	650	40-130	220	160	160	90	24
CORT250	1400	50-160	250	200	200	100	28
CORT300	2600	55-170	300	250	250	120	34
CORT350	3800	55-180	350	300	300	130	36





Note:



This is preliminary series, and special dimension can be agreed by the customer.





Competitive Advantage:





1: Multitooth engagement



2: Large output, litter backlash



3: High ratio, compact structure



Applications:













Product Test:





High precision transmission cycloidal gear reducer used for industrial robots samples which is designed



and developed by our company have been rigorous performance tested. The test include: transmission



characteristics experimentation, precisionand backlash testing, drive stiffness testing and testing.





The performance test commissioned by the :National Reseach Center of harmonic, the state keystone



industrial harmonic drive base, Beijing Zhongjikemei Harmonic Drive company LTD:responsible. It is worthy



to note that: The experimental results show that , CORT reducer precision and backlash are less than 1



arcmin, and it has reached the international advanced standards.
