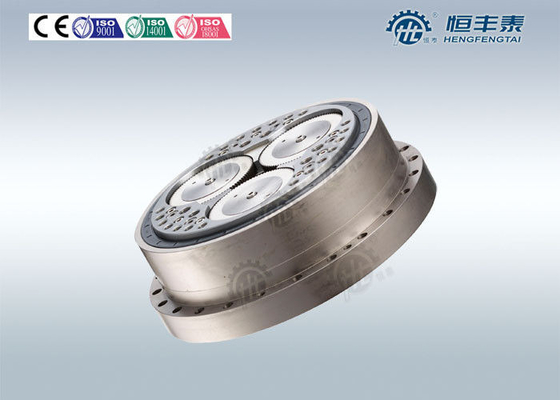

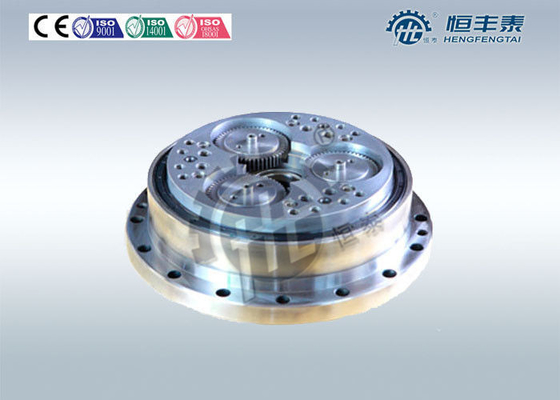

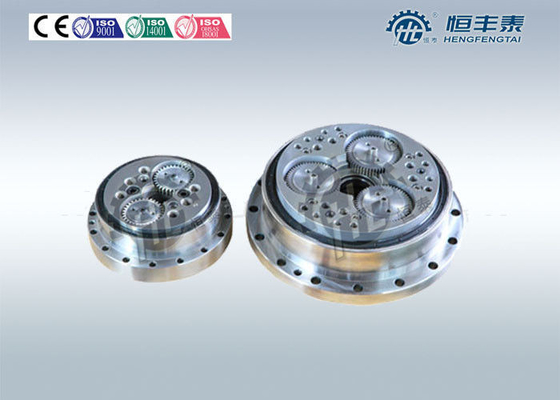

RV-320C-35.61 Nabtesco Cycloidal Hollow Shaft Gear Reducer With Servo Motor
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | speed reduction gearbox,cycloidal speed reducer |
||
|---|---|---|---|
RV-320C-35.61 Nabtesco Cycloidal Hollow Shaft Gear Reducer With Servo Motor
Quick Details:
- Less than 1 arc-min Backlash
- Hollow Shaft Thru Hole (up to 5" diameter) for space saving options
- Off-Set motor mounting for access to Hollow Shaft
- Very compact with high torsional rigidity
- Component version for more design flexibility
- Integrated Angular bearings for large thrust & overhung moment capacity
- High Ratio availability (up to 400:1) without increasing gearbox size
- Torque capacity up to 5X rated torque (E-Stop)
Other name:
Rv-e series compound robot oscillatory roller transmission reducer
Rv-c series robot arm precision gearbox

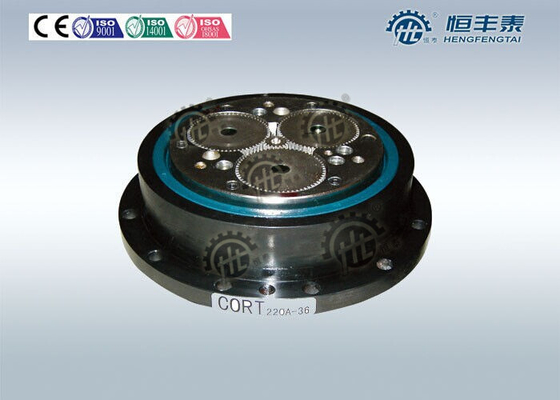

CORT series compound oscillatory Roller transmission industrial planetary gearbox
Specifications:
RV-C SERIES GEARBOX :: PERFORMANCE
| RV-C Model | Rated Torque | Allowable Acc./Dec. Torque | Max. Allowable Torque (E-Stop) | Rated Moment | Max. Moment | Thrust Load | Torsional Rigidity | Backlash | Rated Speed | Max. Output Speed | Weight |
| lb-in (Nm) | lb-in (Nm) | lb-in (Nm) | lb-in (Nm) | lb-in (Nm) | lb | lb-in/min (Nm/min) | Min | rpm | rpm | lb (kg) | |
| 10C | 868 (98) | 2,170 (245) | 4,340 (490) | 6,076 (686) | 12,151 (1,372) | 1,323 (5,880) | 416 (47) | 1 | 15 | 80 | 10.1 (4.6) |
| 27C | 2,343 (265) | 5,859 (662) | 11,717 (1,323) | 8,679 (980) | 17,359 (1,960) | 1,984 (8,820) | 1,337 (151) | 1 | 15 | 60 | 18.7 (8.5) |
| 50C | 4,340 (490) | 10,850 (1,225) | 21,699 (2,450) | 15,623 (1,764) | 31,246 (3,528) | 2,646 (11,760) | 2,258 (255) | 1 | 15 | 50 | 33.1 (15) |
| 100C | 8,680 (980) | 21,699 (2,450) | 43,398 (4,900) | 21,716 (2,452) | 43,397 (4,900) | 3,086 (13,720) | 4,517 (510) | 1 | 15 | 40 | 43.0 (19.5) |
| 200C | 17,359 (1,960) | 43,398 (4,900) | 86,796 (9,800) | 78,117 (8,820) | 156,230 (17,640) | 4,409 (19,600) | 8,679 (981) | 1 | 15 | 30 | 125.7 (57) |
| 320C | 27,775 (3,136) | 69,437 (7,840) | 138,874 (15,680) | 182,272 (20,580) | 347,179 (39,200) | 6,614 (29,400) | 17,359 (1,960) | 1 | 15 | 25 | 176.4 (80) |
| 400C | 34,692 (3,920) | 86,730 (9,800) | 173,460 (19,600) | 216,825 (24,500) | 520,380 (58,800) | 7,695 (34,300) | 21,683 (2,450) | 1 | 15 | 20 | 237.6 (108) |
| 500C | 43,398 (4,900) | 108,495 (12,250) | 216,991 (24,500) | 303,787 (34,300) | 694,358 (78,400) | 8,818 (39,200) | 30,379 (3,430) | 1 | 15 | 20 | 352.7 (160) |
| 900C | 78,057 (8,820) | 195,143 (22,050) | 390,285 (44,100) | 390,285 (44,100) | 780,570 (88,200) | 11,433 (50,960) | 43,365 (4,900) | 1 | 15 | 15 | 506 (230) |
