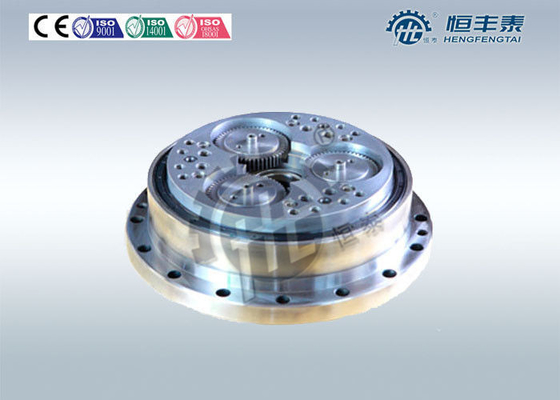

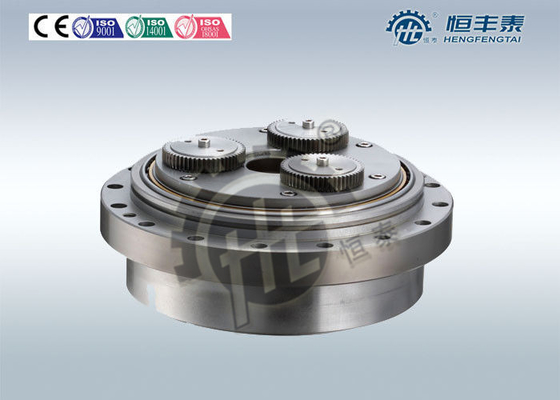

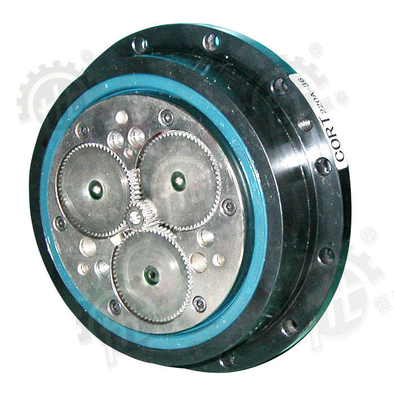

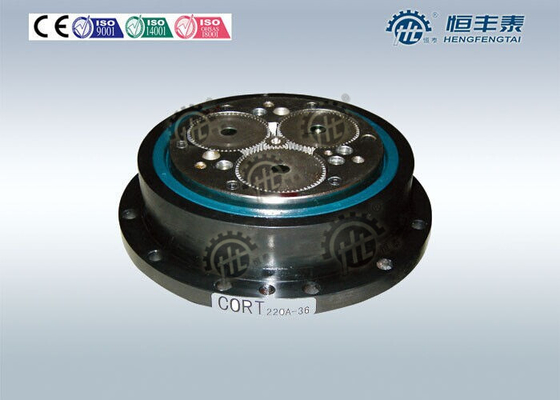

Robot Arm Cycloidal Gear Reducer Cort Transmission Gear Speed Reducer For Welding



Robot Arm Cycloidal Gear Reducer Cort Transmission Gear Speed Reducer For Welding





Quick Details:



• Gearing Arrangement: CORT compound Oscillatory Roller Transmission

• Output Torque: 150-3800Nm

• Place of Origin: Zhejiang, China (Mainland)

• Model Number: CORT130-CORT350

• Brand Name: HENGTAI

• Color: According to customer

• Ratio: 40-180

• Packing: Strong exporting wooden case and pallets

• Other name:

• CORT industrial robot arm gear reducer

• CORT transmission gear reducer

• CORT compound oscillatory Roller transmission reducer





Descriptions:





Robot arm cycloidal gear reducer Cort transmission gear reducer used for welding is based on the drive



of oscillatory transmission, a series gear branch input multi-synchronous input shaft roller power



transmission to ensure that it covers a high-precision drive, high stiffness, high load characteristics.







Performance characteristics:





1. Multi-tooth meshing-High load capacity



2. Simple Structure. No indispensable output institutions as in cycloid reducer



3. High-speed motor can be connected to drive, and this would be benefit to the requirement of sensitivity



of intelligent control system



4. Basically can achieve rolling meshing, transmission with high efficiency. CORT reducer normally be used



in the speed ratio of (i=40~180),the mechanical efficiency of 80-90%



5. Bigger transmission ratio, compact structure



6. Big output rigidity, slight backlash



7. When do transmission, torque fluctuations less.







Specifications:



Model	Load torque	ratio	dimension
			D	d	c	L	A
CORT130	150	40-100	130	120	120	65	16
CORT160	350	40-120	160	130	130	75	20
CORT220	650	40-130	220	160	160	90	24
CORT250	1400	50-160	250	200	200	100	28
CORT300	2600	55-170	300	250	250	120	34
CORT350	3800	55-180	350	300	300	130	36





Note:



This is preliminary series, and special dimension can be agreed by the customer.





Applications Field:



Robot arm cycloidal gear reducer Cort transmission gear reducer used for



Industrial robots Welding



Industrial robots (welding, stowage, loading)



High-end CNC equipment (machine, pipe bending machine)



Turntable, displacement machine



The printer



Radar antenna positioning device



Solar power systems













Product Test:





Robot arm cycloidal gear reducer Cort transmission gear reducer used for welding samples which is



designed and developed by our company have been rigorous performance tested. The test include:



transmission characteristics experimentation, precision and backlash testing, drive stiffness testing and



testing.





The performance test commissioned by the :National Reseach Center of harmonic, the state keystone



industrial harmonic drive base, Beijing Zhongjikemei Harmonic Drive company LTD:responsible. It is worthy



to note that: The experimental results show that , CORT reducer precision and backlash are less than 1



arcmin, and it has reached the international advanced standards.





We control every tiny aspect to maintain high quality:











Competitive Advantage:





1: Multitooth engagement



2: Large output, litter backlash



3: High ratio, compact structure
