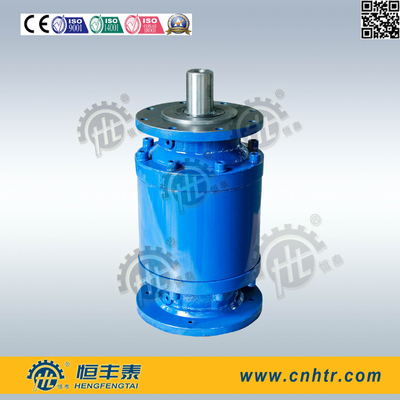

Large Torque Planetary Gear Reducer Shaft Mounted For Log Washer / Conveyor

Large Torque Planetary Gear Reducer Shaft Mounted For Log Washer / Conveyor

Quick Details:

Ratio: 3.4-5234

Power Range: up to 450 Kw

Torque Range: 1000-1400000 Nm

Output Shaft: Keyed Parallel, Spline Solid& Hollow

Input Options: NEMA Motor Adaptor,

                       IEC Motor Adaptor

Description:

The Large Torque Planetary Gear Reducer For Log Washer is the optimum proposal for all applications requiring

high torque with minimum dimensions, on conveyor equipment and also grinding machinery.

The epicyclic solution of Large Torque Planetary Gear Reducer For Log Washer is preferable to solutions with

traditional gear units as it offers an improvement of 40-60% in terms of space and weight.

With its output versions, numerous input possibilities and all the accessories supplied, the "Large Torque

Planetary Gear Reducer For Log Washer " extends the application possibilities of planetary gear units to all

industrial sectors:

Mixers for any type of material, extruders, all types of conveyors belts, industrial and port lifting equipment,

grinders and mills, large iron-making plants, sugar and food oil production, plants for quarries and mineral,

purification plants.


Ps: Scan QR code to connect me for more services.


Your Benifits:

1. Transmission ratio


Fine division, wide scope


2. Widely application


Planetary Gearmotors provide high efficiency, high precision and quiet operation in your toughest applications


3. Durable and Rugged


State-of-the-art materials and processes provide hardened, wear-resistant gearing that handles heavy-duty

applications and shock loads. A self-aligning gear train ensures equal load distribution. Components are spline-

connected to isolate the gear train from external forces.


4. Reliable Operation


Self-aligning planet carriers float radially and axially to provide perfect alignment of the drive train. Tapered roller

bearings on both input and output shafts provide high overhung and thrust load capacity.


5. Easy to Service for Increased Uptime


No special tools are required for changing wear items, and no shimming is required to set bearing clearances.


6. Short delivery times, Easy Ratio Changes


Planet gear uses standard sub-assemblies which allow fast gear ratio changes in the field. No bearing

adjustments are required— Just change and go.
