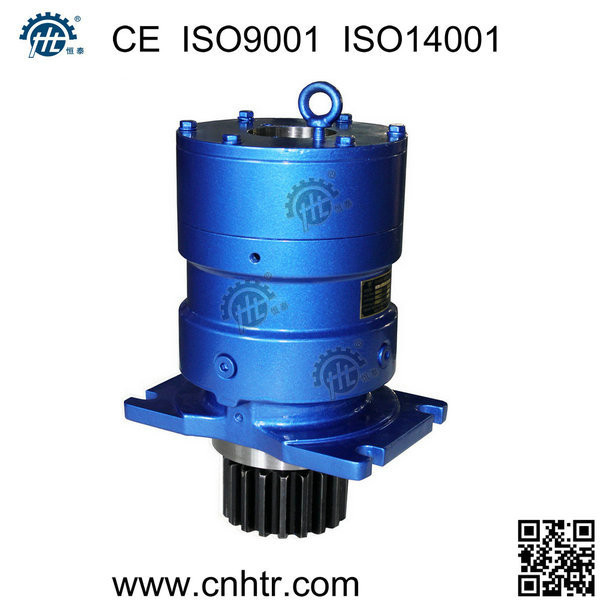

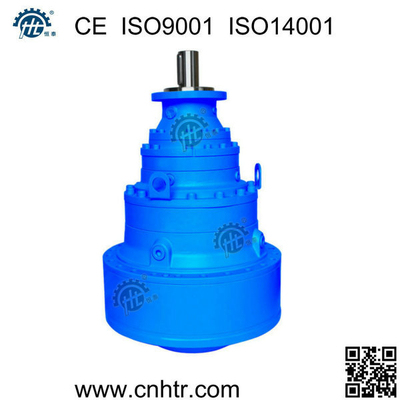

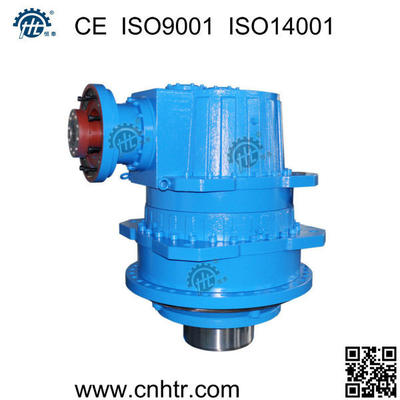

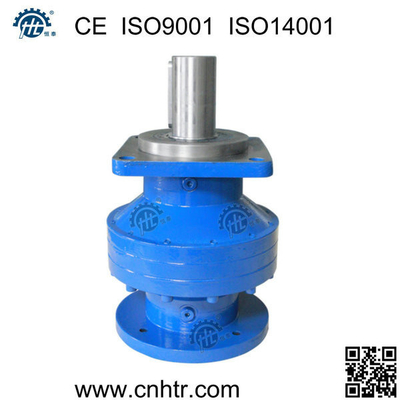

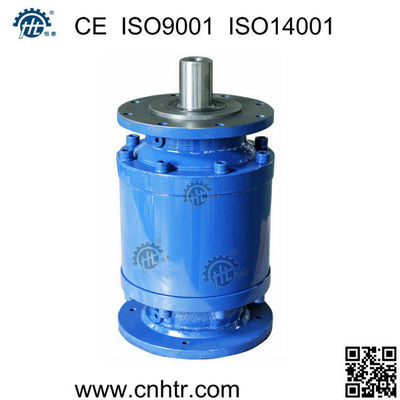

NGW P 300 Series Planetary Gear Reducer Right Angle High Torque Density

NGW P 300 Series Planetary Gear Reducer Right Angle High Torque Density


1. Descriptions:
1).CE, ISO9001, ISO14001
2). Models: 300 series, NGW series, P series
3). Types: Inline, right angle
4). Compact design, high torque density
5). Low backlash, high torsional stiffness
6). Low moment of inertia, high dynamics
7). High efficiency, low noise
8). Same with Bonfiglioli 300 series, similar to ROSSI,  Brevini, Bonfiglioli.

2.General technical data:
Power range: 0.37-1000 KW
Ratio rang: I = 3.5-4300
Torque rang: 450-11205000 N. M
Input Speed: 750rpm-1800 rpm
Output Speed: 0.4 rpm- 350 rpm
Mounting position: Foot mounted, hollow shaft mounted, solid shaft mounted
Output shaft: Hollow shaft, solid shaft
Gearcase housing: HT cast Iron Housing suitable for outdoor installation
Backstop: Available on all frame sizes With/without anti-back Backstop,


3. Models:

                  NGW  series                                                300 series                                                    P series



4. Maintenance:
1). After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.
2). Pls do not mix the mineral oil and synthetic oil.
3). Pls check the oil level in regular time.
5.Storage:
1). Pls do not store in outdoor.
2).Pls put cardboard, wood or other material between the products and floor. The gear box cannot directly touch the floor.

6. Warranty:
15 months

7. FAQS:
1). MOQ: 1 pcs
2). Delivery lead time: 25 -30 days.
3). Warranty: 15 months
4). Replace products: Bonfiglioli, Brevini, ROSSI···.
