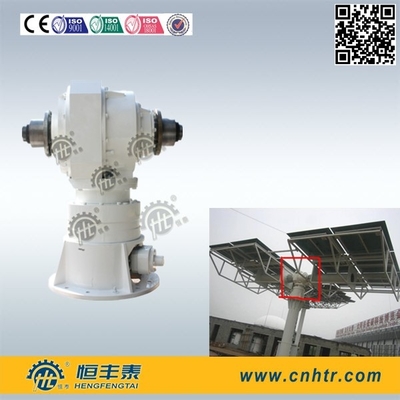

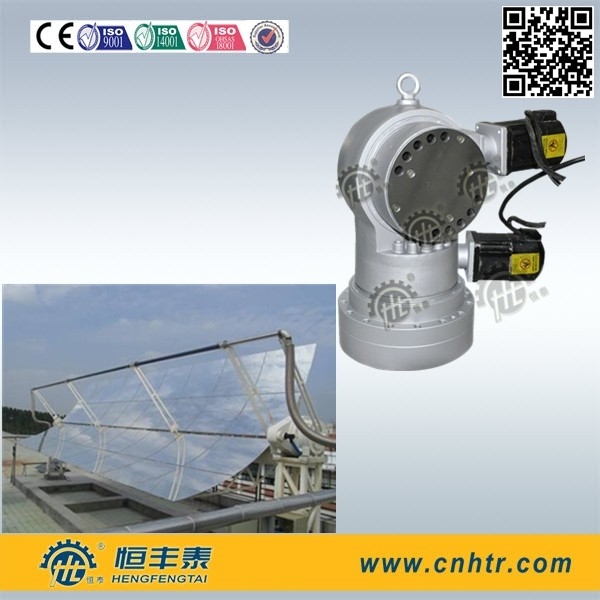

Dual Axis Tower Concentrate Heliostat Cycloidal Speed Reducer Precision 0.015 Degree

Large Image : Dual Axis Tower Concentrate Heliostat Cycloidal Speed Reducer Precision 0.015 Degree Get Best Price

Product Details:

Place of Origin:	Wenzhou City,Zhejiang,China
Brand Name:	HENGTAI
Certification:	CE,ISO9001:2008,ISO14001,GB28001
Model Number:	HDR series

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	US $ 3000 - 90000 / Piece
Packaging Details:	1 PCS packed in ONE WOODEN CRATE
Delivery Time:	40 days
Payment Terms:	Paypal,T/T, L/C
Supply Ability:	100pcs/month

Contact Now

Detailed Product Description

Backlash:	0.015 Degree	Model:	HDR470
Torque:	3000Nm	Mirror Volume:	30 Square Meters
Ratio:	43000:1	Weight:	250Kg
High Light:	speed reduction gearbox , cyclo gear reducer

Dual Axis Tower Concentrate Heliostat Cycloidal Speed Reducer Precision 0.015 Degree

Features:

Gearing Arrangement: Dual drive transmission device
Ratio: 35000-50000
Allowable torque:
Horizontal torque 1030-67600
Elevation torque 1360Nm-75800Nm
Place of Origin: Zhejiang, China (Mainland)
Model Number: HJR01-HJR09
Brand Name: HENGTAI
Color: According to customer
Packing: Strong wooden cases for exporting

HJR04 Performance index
Performance	Unit	(Fx shaft)	(Fz shaft)
MotorPower	(w)	400	200
Ratio	——	43711.01	45035.586
Mechanical Efficiency	——	≥40%	≥40%
backlash	(°)	0.05°	0.05°
Service life	year	≥25	≥25
Nominal output torque	(Nm)	7060	5680
Max output torque	Nm	17650	14200
Static load	(N)	25000	20000
Dynamic load	(N)	25000	20000
Service environment	(℃)	-20~50	-20~50
Noise	(db)	≤70db	≤70db
Maximum strength
Torsional strength (Nm/rad)		11.4×10e6
Bending strength (Nm/rad)		16.2×10e6

Performance Model	Ratio	Rotate range (^o)	Horizontal allowable maximum dynamic torque (N.m)	Horizontal allowable maximum static torque (N.m)	Elevation allowable maximum dynamic torque (N.m)	Elevation allowable maximum static torque (N.m)	Maximum torsional stiffness (N.m/rad)	Backlash (^o)
HJR01	35000 ~ 50000	360	5578	9296	5132	8553	15.7×10e6	0.015
HJR02	35000 ~ 50000	360	5976	9960	5756	9593	18.4×10e6	0.015
HJR03	35000 ~ 50000	360	10160	16933	9865	16442	36.0×10e6	0.015
HJR04	35000 ~ 50000	360	15216	25360	14512	23587	38.0×10e6	0.015
HJR05	35000 ~ 50000	360	27430	45717	26381	43968	10.5×10e7	0.015
HJR06	35000 ~ 50000	360	36887	61479	35785	59642	14.4×10e7	0.015
HJR07	35000 ~ 50000	360	48285	80474	47665	79442	19.0×10e7	0.015
HJR08	35000 ~ 50000	360	62595	104325	61758	102930	33.3×10e7	0.015

Competitive Advantage:

Hengfentai was established in 1991, with the development of more than 20 years, we have accomplished the following achievements:
Main product: reducer, Mixing equipments, settle tank, aluminum process equipments High&New Solar Thermal reducer, industrial robot reducer.

R&D: participated in 863 National Plan, mainly responsible for industrial robot joint reducer, as well as solar tracking reducer.
Factory Scale: Currently 2 factory plants: Sanxi industry zone and Binhai industry zone, with totally 400 personnel, and advanced equipments & machines.
Turnover of last year: 60m USD
