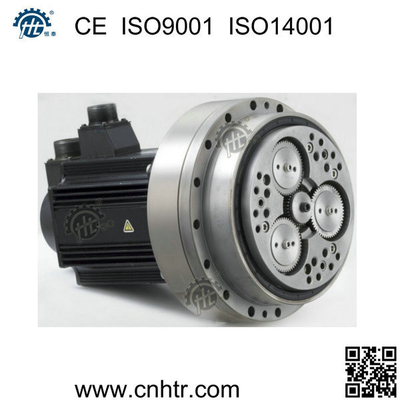

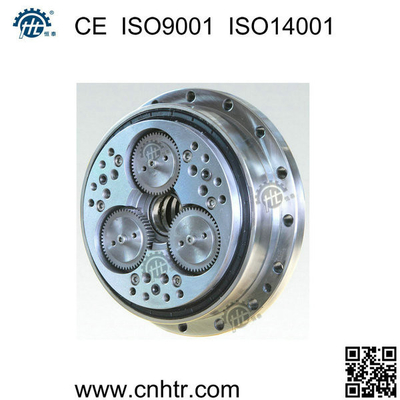

CORT High Precision Planetary Gear Reducer , Low Backlash Robot Arm Gearbox

Large Image : CORT High Precision Planetary Gear Reducer , Low Backlash Robot Arm Gearbox Get Best Price

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Hengtai Reducer
Certification:	ISO9001, ISO14001, CE
Model Number:	CORT-E, CORT-C

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	USD500.00~USD3000.00
Packaging Details:	Each pcs with a inner package, 8-12 pcs/pallet.
Delivery Time:	35-50 days
Payment Terms:	Paypal,T/T, L/C
Supply Ability:	200 pcs/month

Contact Now

Detailed Product Description

Backlash:	1 Arcminutes	Motor:	Servo Motor
Ratio:	30-200	Power:	0.09-4.75 Kw
Rorque:	130-6800 N.m	Place Of Original:	Zhejiang, China
High Light:	inline planetary gear reducer , planetary reduction gearbox

CORT High Precision Planetary Gear Reducer , Low Backlash Robot Arm Gearbox

1.Descriptions:

1). CE, ISO9001,ISO14001
2). Little backlash
3). Used in welding, stowage, loading, handling,cutting machine

4). Same with Nabtesco RV

CORT High Precision Planetary Gear Reducer , Low Backlash Robot Arm Gearbox

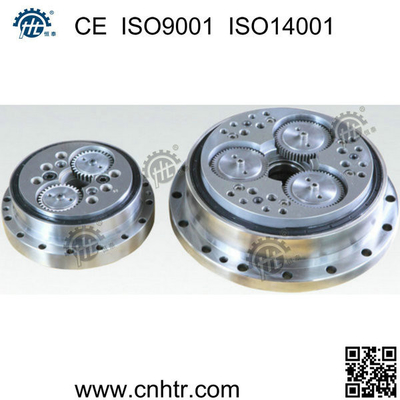

2.Types:

CORT-E

CORT-C

3.Models and technical datails:

CORT (RV-E)	Ratio	Rated Tor que	Allowable Acc./Dec. Torque	Max. Allowable Torque (E-Stop)	Rated Mo ment	Max. Mo ment	Thrust Load	Torsional Rigidity	Back lash	Rated Sp eed	Max. Out put Sp eed	Wei ght
CORT (RV-E)	1:R	lb-in	lb-in (Nm)	lb-in (Nm)	lb-in (Nm)	lb-in (Nm)	lb (N)	lb-in/min (Nm/min)	Min	rpm	r/min	lb
6E	31-103	514 (58)	1,036 (117)	2,604 (294)	1,736 (196)	3,472 (392)	331 (1,470)	177 (20)	1.5	30	100	5.5 (2.5)
20E	57-161	1,479 (167)	3,649 (412)	7,378 (833)	7,812 (882)	15,623 (1,764)	882 (3,920)	434 (49)	1	15	75	9.7 (4.4)
40E	57-153	3,649 (412)	9,113 (1,029)	18,227 (2,058)	14,755 (1,666)	29,510 (3,332)	1,168 (5,194)	957 (108)	1	15	70	20.9 (9.5)
80E	57-153	6,944 (784)	17,359 (1,960)	34,718 (3,920)	19,095 (2,156)	38,190 (4,312)	1,764 (7,840)	1,736 (196)	1	15	70	28.0 (12.7)
110E	81-175.28	9,547 (1,078)	23,869 (2,695)	47,737 (5,390)	26,038 (2,940)	52,077 (5,880)	2,425 (10,780)	2,604 (294)	1	5	50	39.7 (18)
160E	81-171	13,887 (1,568)	34,718 (3,920)	69,436 (7,840)	34,718 (3,920)	67,436 (7,840)	3,307 (14,700)	3,472 (392)	1	15	45	61.6 (28)
320E	81-185	27,774 (3,136)	69,436 (7,840)	138,872 (15,680)	62,492 (7,056)	124,984 (14,112)	4,409 (19,600)	8,679 (980)	1	15	35	103.4 (47)
450E	81-192.4	39,058 (4,410)	97,644 (11,025)	195,288 (22,050)	78,115 (8,820)	156,230 (17,640)	5,511 (24,500)	10,415 (1,176)	1	15	25	151.8 (69)
