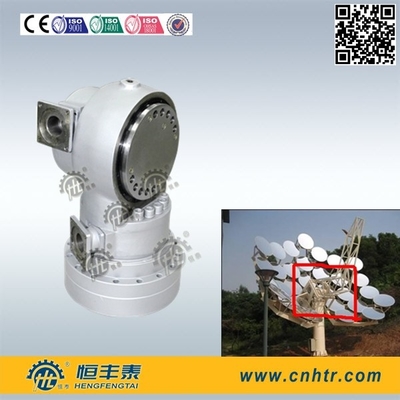

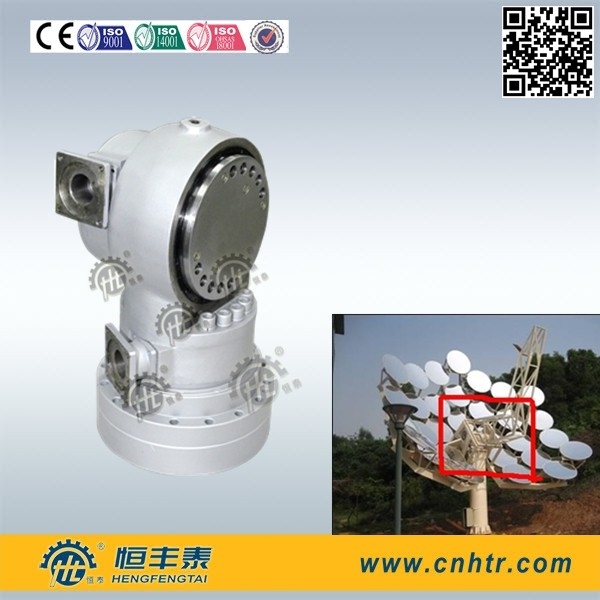

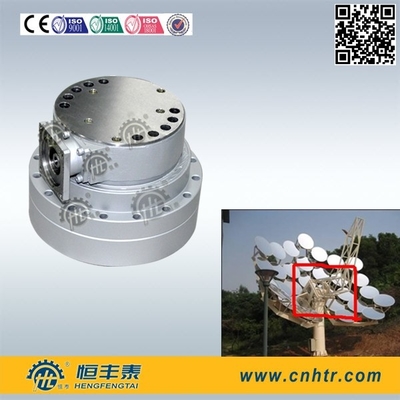

Disc Csp Cycloidal Gear Reducer Solar Thermal Heat 360 Precision Degree Ratio 42000

Large Image : Disc Csp Cycloidal Gear Reducer Solar Thermal Heat 360 Precision Degree Ratio 42000 Get Best Price

Product Details:

Place of Origin:	Wenzhou City,Zhejiang,China
Brand Name:	HENGTAI
Certification:	CE,ISO9001:2008,ISO14001,GB28001
Model Number:	HJR series

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	US $ 3000 - 90000 / Piece
Packaging Details:	1 PCS packed in ONE WOODEN CRATE
Delivery Time:	40 days
Payment Terms:	Paypal,T/T, L/C
Supply Ability:	100pcs/month

Contact Now

Detailed Product Description

Backlash:	0.01 Degree	Model:	HJR Disc Model
Torque:	78500Nm	Mirror Volume:	90 Square Meters
Ratio:	42000	Weight:	220Kg
High Light:	speed reduction gearbox , cycloidal speed reducer

Disc Csp Cycloidal Gear Reducer Solar Thermal Heat 360 Precision Degree Ratio 42000

Features:

Gearing Arrangement: Dual drive transmission device
Ratio: 35000-50000
Allowable torque:
Horizontal torque 1030-67600
Elevation torque 1360Nm-75800Nm
Place of Origin: Zhejiang, China (Mainland)
Model Number: HJR01-HJR09
Brand Name: HENGTAI
Color: According to customer
Packing: Strong wooden cases for exporting

Type	Torque Nm
Type	Horizontal torque	Elevation torque
HJR01	1030	1360
HJR02	5590	6650
HJR03	10700	13250
HJR04	21350	25500
HJR05	38950	44500
HJR06	47800	55700
HJR07	59600	68500
HJR08	67600	75800

Performance Model	Ratio	Rotate range (^o)	Horizontal allowable maximum dynamic torque (N.m)	Horizontal allowable maximum static torque (N.m)	Elevation allowable maximum dynamic torque (N.m)	Elevation allowable maximum static torque (N.m)	Maximum torsional stiffness (N.m/rad)	Backlash (^o)
HJR01	35000 ~ 50000	360	5578	9296	5132	8553	15.7×10e6	0.015
HJR02	35000 ~ 50000	360	5976	9960	5756	9593	18.4×10e6	0.015
HJR03	35000 ~ 50000	360	10160	16933	9865	16442	36.0×10e6	0.015
HJR04	35000 ~ 50000	360	15216	25360	14512	23587	38.0×10e6	0.015
HJR05	35000 ~ 50000	360	27430	45717	26381	43968	10.5×10e7	0.015
HJR06	35000 ~ 50000	360	36887	61479	35785	59642	14.4×10e7	0.015
HJR07	35000 ~ 50000	360	48285	80474	47665	79442	19.0×10e7	0.015
HJR08	35000 ~ 50000	360	62595	104325	61758	102930	33.3×10e7	0.015

Maximum radial load (N)	Maximum axial load (N)	Maximum bending stiffness (N.m/rad)	Normal speed (^o/min)	Maximum driving speed (^o/min)	Weight (kg)	Tilting moment (N.m)	Environment temperature (℃)
39000	25300	89.2×10e8	0.14	12	100	11000	-10 ~ +50
40000	26667	90.4×10e8	0.14	12	220	12000	-10 ~ +50
45000	30000	17.8×10e9	0.14	12	320	28000	-10 ~ +50
50000	33333	23.5×10e9	0.14	12	490	35000	-10 ~ +50
60000	40000	65.4×10e9	0.14	12	850	60000	-10 ~ +50
64000	42667	85.9×10e9	0.14	12	1050	68000	-10 ~ +50
70000	46667	10.5×10e10	0.14	12	1400	75000	-10 ~ +50
75000	50000	13.6×10e10	0.14	12	1700	80000	-10 ~ +50
