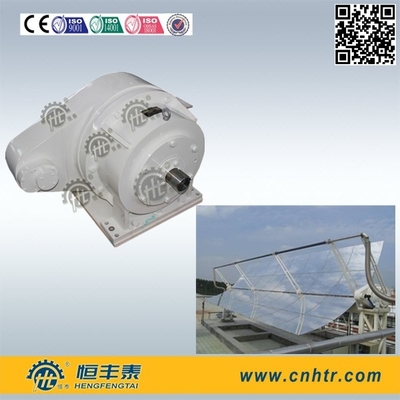

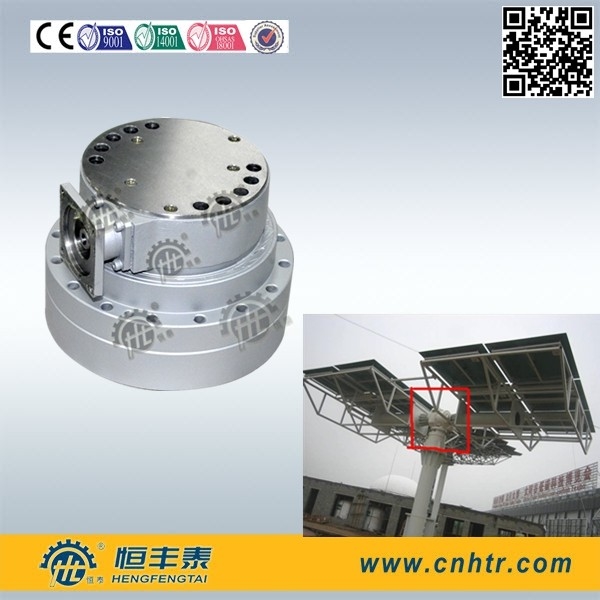

Multi Teeth 60 Mesh Cycloidal Gear Reducer Life 25 Years Large Output Stiffness

Large Image : Multi Teeth 60 Mesh Cycloidal Gear Reducer Life 25 Years Large Output Stiffness Get Best Price

Product Details:

Place of Origin:	Wenzhou City,Zhejiang,China
Brand Name:	HENGTAI
Certification:	CE,ISO9001:2008,ISO14001,GB28001
Model Number:	HJR series

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	US $ 3000 - 90000 / Piece
Packaging Details:	1 PCS packed in ONE WOODEN CRATE
Delivery Time:	40 days
Payment Terms:	Paypal,T/T, L/C
Supply Ability:	100pcs/month

Contact Now

Detailed Product Description

Backlash:	0.01 Degree	Model:	HJR Tower Model
Torque:	50000Nm	Mirror Volume:	100 Square Meters
Ratio:	42000	Weight:	320Kg
High Light:	cycloidal speed reducer , cyclo gear reducer

Multi Teeth 60 Mesh Cycloidal Gear Reducer Life 25 Years Large Output Stiffness

Features:

Gearing Arrangement: Dual drive transmission device
Ratio: 35000-50000
Allowable torque:
Horizontal torque 1030-67600
Elevation torque 1360Nm-75800Nm
Place of Origin: Zhejiang, China (Mainland)
Model Number: HJR01-HJR09
Brand Name: HENGTAI
Color: According to customer
Packing: Strong wooden cases for exporting

Type	Torque Nm
Type	Horizontal torque	Elevation torque
HJR01	1030	1360
HJR02	5590	6650
HJR03	10700	13250
HJR04	21350	25500
HJR05	38950	44500
HJR06	47800	55700
HJR07	59600	68500
HJR08	67600	75800

Maximum radial load (N)	Maximum axial load (N)	Maximum bending stiffness (N.m/rad)	Normal speed (^o/min)	Maximum driving speed (^o/min)	Weight (kg)	Tilting moment (N.m)	Environment temperature (℃)
39000	25300	89.2×10e8	0.14	12	100	11000	-10 ~ +50
40000	26667	90.4×10e8	0.14	12	220	12000	-10 ~ +50
45000	30000	17.8×10e9	0.14	12	320	28000	-10 ~ +50
50000	33333	23.5×10e9	0.14	12	490	35000	-10 ~ +50
60000	40000	65.4×10e9	0.14	12	850	60000	-10 ~ +50
64000	42667	85.9×10e9	0.14	12	1050	68000	-10 ~ +50
70000	46667	10.5×10e10	0.14	12	1400	75000	-10 ~ +50
75000	50000	13.6×10e10	0.14	12	1700	80000	-10 ~ +50

Competitive Advantage:

Hengfentai was established in 1991, with the development of more than 20 years, we have accomplished the following achievements:
Main product: reducer, Mixing equipments, settle tank, aluminum process equipments High&New Solar Thermal reducer, industrial robot reducer.
