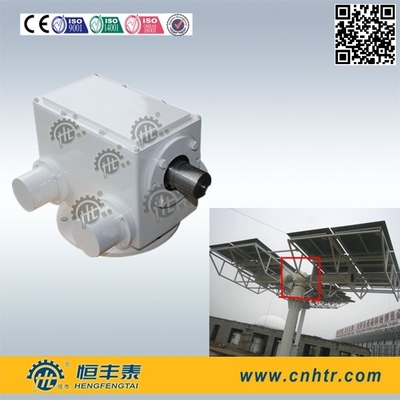

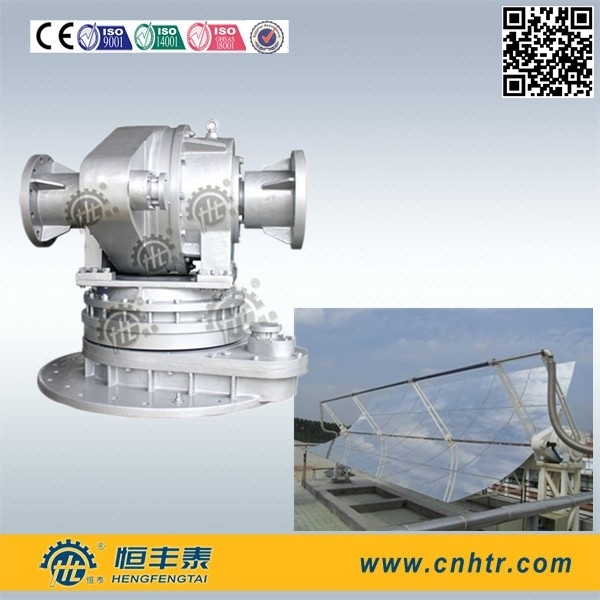

Horizontal Cycloidal Speed Reducer Solar Tracking Gearbox Tilting Moment 68000Nm

Large Image : Horizontal Cycloidal Speed Reducer Solar Tracking Gearbox Tilting Moment 68000Nm Get Best Price

Product Details:

Place of Origin:	Wenzhou City,Zhejiang,China
Brand Name:	HENGTAI
Certification:	CE,ISO9001:2008,ISO14001,GB28001
Model Number:	HJR series

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	US $ 3000 - 90000 / Piece
Packaging Details:	1 PCS packed in ONE WOODEN CRATE
Delivery Time:	40 days
Payment Terms:	Paypal,T/T, L/C
Supply Ability:	100pcs/month

Contact Now

Detailed Product Description

Temperatue:	-10 To +50 Degree	Model:	HJR Tower Model
Torque:	68000Nm	Mirror Volume:	144 Square Meters
Ratio:	42000	Weight:	320Kg
High Light:	cycloidal speed reducer , cyclo gear reducer

Horizontal Cycloidal Speed Reducer Solar Tracking Gearbox Tilting Moment 68000Nm

Features:

Gearing Arrangement: Dual drive transmission device
Ratio: 35000-50000
Allowable torque:
Horizontal torque 1030-67600
Elevation torque 1360Nm-75800Nm
Place of Origin: Zhejiang, China (Mainland)
Model Number: HJR01-HJR09
Brand Name: HENGTAI
Color: According to customer
Packing: Strong wooden cases for exporting

Performance Model	Ratio	Rotate range (^o)	Horizontal allowable maximum dynamic torque (N.m)	Horizontal allowable maximum static torque (N.m)	Elevation allowable maximum dynamic torque (N.m)	Elevation allowable maximum static torque (N.m)	Maximum torsional stiffness (N.m/rad)	Backlash (^o)
HJR01	35000 ~ 50000	360	5578	9296	5132	8553	15.7×10e6	0.015
HJR02	35000 ~ 50000	360	5976	9960	5756	9593	18.4×10e6	0.015
HJR03	35000 ~ 50000	360	10160	16933	9865	16442	36.0×10e6	0.015
HJR04	35000 ~ 50000	360	15216	25360	14512	23587	38.0×10e6	0.015
HJR05	35000 ~ 50000	360	27430	45717	26381	43968	10.5×10e7	0.015
HJR06	35000 ~ 50000	360	36887	61479	35785	59642	14.4×10e7	0.015
HJR07	35000 ~ 50000	360	48285	80474	47665	79442	19.0×10e7	0.015
HJR08	35000 ~ 50000	360	62595	104325	61758	102930	33.3×10e7	0.015

Maximum radial load (N)	Maximum axial load (N)	Maximum bending stiffness (N.m/rad)	Normal speed (^o/min)	Maximum driving speed (^o/min)	Weight (kg)	Tilting moment (N.m)	Environment temperature (℃)
39000	25300	89.2×10e8	0.14	12	100	11000	-10 ~ +50
40000	26667	90.4×10e8	0.14	12	220	12000	-10 ~ +50
45000	30000	17.8×10e9	0.14	12	320	28000	-10 ~ +50
50000	33333	23.5×10e9	0.14	12	490	35000	-10 ~ +50
60000	40000	65.4×10e9	0.14	12	850	60000	-10 ~ +50
64000	42667	85.9×10e9	0.14	12	1050	68000	-10 ~ +50
70000	46667	10.5×10e10	0.14	12	1400	75000	-10 ~ +50
75000	50000	13.6×10e10	0.14	12	1700	80000	-10 ~ +50
