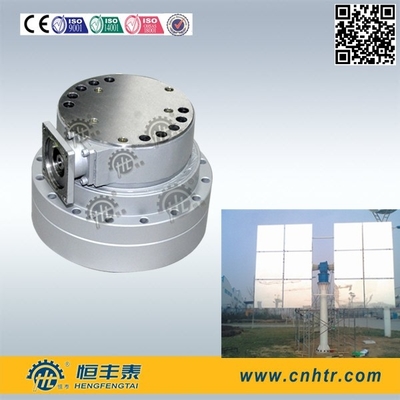

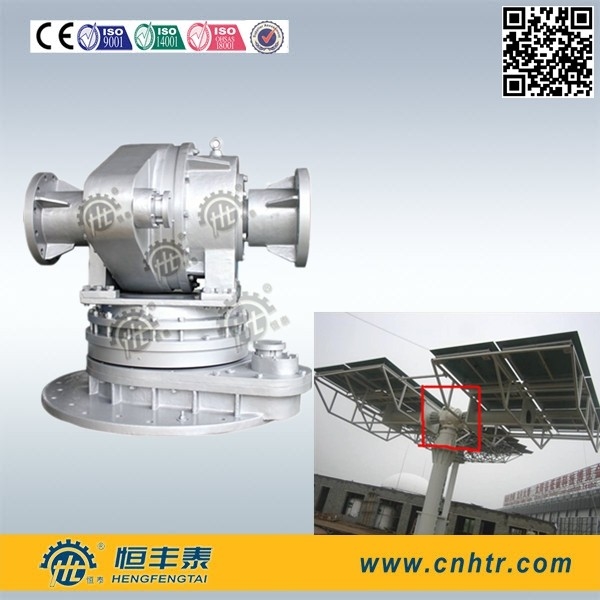

90m2 Tower Heliostat Cycloidal Gear Reducer Solar Tracking Drive Backlash 0.3mrad

Large Image : 90m2 Tower Heliostat Cycloidal Gear Reducer Solar Tracking Drive Backlash 0.3mrad Get Best Price

Product Details:

Place of Origin:	Wenzhou City,Zhejiang,China
Brand Name:	HENGTAI
Certification:	CE,ISO9001:2008,ISO14001,GB28001
Model Number:	HJR series

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	US $ 3000 - 90000 / Piece
Packaging Details:	1 PCS packed in ONE WOODEN CRATE
Delivery Time:	40 days
Payment Terms:	Paypal,T/T, L/C
Supply Ability:	100pcs/month

Contact Now

Detailed Product Description

Temperatue:	-10 To +50 Degree	Tracking Speed:	0.12
Self Locking:	Yes	Pitch Angle:	100
Axial Load:	15000	Weight:	320Kg
High Light:	speed reduction gearbox , cycloidal speed reducer

90m2 Tower Heliostat Cycloidal Gear Reducer Solar Tracking Drive Backlash 0.3mrad

Features:

Gearing Arrangement: Dual drive transmission device
Ratio: 35000-50000
Allowable torque:
Horizontal torque 1030-67600
Elevation torque 1360Nm-75800Nm
Place of Origin: Zhejiang, China (Mainland)
Model Number: HJR01-HJR09
Brand Name: HENGTAI
Color: According to customer
Packing: Strong wooden cases for exporting

Performance Model	Ratio	Rotate range (^o)	Horizontal allowable maximum dynamic torque (N.m)	Horizontal allowable maximum static torque (N.m)	Elevation allowable maximum dynamic torque (N.m)	Elevation allowable maximum static torque (N.m)	Maximum torsional stiffness (N.m/rad)	Backlash (^o)
HJR01	35000 ~ 50000	360	5578	9296	5132	8553	15.7×10e6	0.015
HJR02	35000 ~ 50000	360	5976	9960	5756	9593	18.4×10e6	0.015
HJR03	35000 ~ 50000	360	10160	16933	9865	16442	36.0×10e6	0.015
HJR04	35000 ~ 50000	360	15216	25360	14512	23587	38.0×10e6	0.015
HJR05	35000 ~ 50000	360	27430	45717	26381	43968	10.5×10e7	0.015
HJR06	35000 ~ 50000	360	36887	61479	35785	59642	14.4×10e7	0.015
HJR07	35000 ~ 50000	360	48285	80474	47665	79442	19.0×10e7	0.015
HJR08	35000 ~ 50000	360	62595	104325	61758	102930	33.3×10e7	0.015

Performance	Pitch direction	Horizontal direction
Ratio	40800
Backlash	0.01°	0.01°
Max speed(°/min)	15	12
required torque of normal work(Nm)	6900	774
Momentary max torque (Nm)	32700	21600
Static overturning force Fx(N)	-5500	15800
Dynamic overturning force Fy(N)	15000	22800
