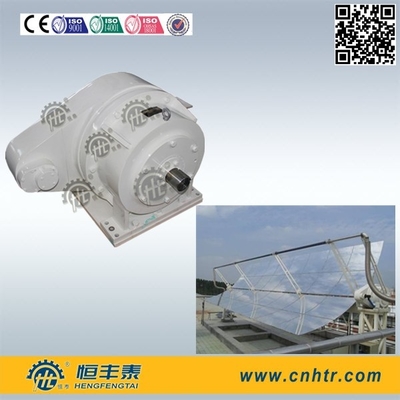

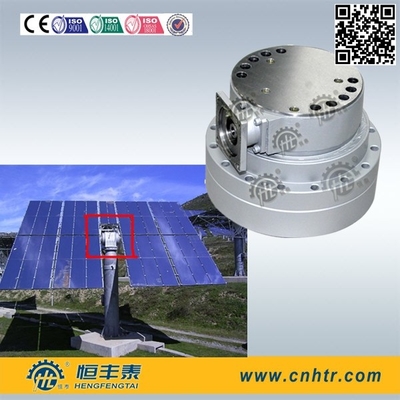

Torsional Stiffness 1.9 × 10e6 Cycloidal Speed Reducer 0.05 Arm-Min Backlash Positioner

Large Image : Torsional Stiffness 1.9 × 10e6 Cycloidal Speed Reducer 0.05 Arm-Min Backlash Positioner Get Best Price

Product Details:

Place of Origin:	Wenzhou City,Zhejiang,China
Brand Name:	HENGTAI
Certification:	CE,ISO9001:2008,ISO14001,GB28001
Model Number:	HJR series

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	US $ 3000 - 90000 / Piece
Packaging Details:	1 PCS packed in ONE WOODEN CRATE
Delivery Time:	40 days
Payment Terms:	Paypal,T/T, L/C
Supply Ability:	100pcs/month

Contact Now

Detailed Product Description

Temperatue:	-10 To +50 Degree	Tracking Speed:	0.12
Self Locking:	Yes	Pitch Angle:	100
Axial Load:	15000	Weight:	320Kg
High Light:	cycloidal speed reducer , cyclo gear reducer

Torsional Stiffness 1.9 × 10e6 Cycloidal Speed Reducer 0.05 Arm-Min Backlash Positioner

Features:

Gearing Arrangement: Dual drive transmission device
Ratio: 35000-50000
Allowable torque:
Horizontal torque 1030-67600
Elevation torque 1360Nm-75800Nm
Place of Origin: Zhejiang, China (Mainland)
Model Number: HJR01-HJR09
Brand Name: HENGTAI
Color: According to customer
Packing: Strong wooden cases for exporting

Performance	Pitch direction	Horizontal direction
Ratio	40800
Backlash	0.01°	0.01°
Max speed(°/min)	15	12
required torque of normal work(Nm)	6900	774
Momentary max torque (Nm)	32700	21600
Static overturning force Fx(N)	-5500	15800
Dynamic overturning force Fy(N)	15000	22800

Performance Model		ratio	output torque(Nm)	/Per missible acc eleration / decele ration torque (Nm)	Mom entary maxi mum allo wable torque (Nm)	Allowable torque (Nm)	Instan taneous maximum allowable load	Back lash arc. min.	Torsional Stiffness Nm/arc. min.	Moment Rigidity Nm/ arc.min
HJR01	Horizontal	450~ 50000	540	1350	2025	4000	9000	0.05	1.9× 10e6	3.6× 10e6
HJR01	Pitching		940	2350	3525	3500	12000	0.05	1.9× 10e6	3.6× 10e6
HJR02	Horizontal		1372	3430	5145	6000	11000	0.05	3.2×10e6	4.5× 10e6
HJR02	Pitching		1940	4850	7275	4500	15000	0.05	3.2×10e6	4.5× 10e6
HJR03	Horizontal		3300	8250	12375	7500	16000	0.05	6.1×10e6	8.3× 10e6
HJR03	Pitching		4640	11600	17400	5500	19000	0.05	6.1×10e6	8.3× 10e6
HJR04	Horizontal		5680	14200	23870	9500	20000	0.05	11.4×10e6	16.2× 10e6
HJR04	Pitching		7060	17650	34375	8000	25000	0.05	11.4×10e6	16.2× 10e6
HJR05	Horizontal		9056	22640	40960	12500	23000	0.05	19.2×10e6	25.4× 10e6
HJR05	Pitching		12680	31700	47550	10000	30000	0.05	19.2×10e6	25.4× 10e6
HJR06	Horizontal		15440	38600	57900	15000	25000	0.05	30.3×10e6	34.5× 10e6
HJR06	Pitching		18160	45400	68100	10500	33000	0.05	30.3×10e6	34.5× 10e6
HJR07	Horizontal		16704	41760	62640	11500	28000	0.05	40.6×10e6	45.7× 10e6
HJR07	Pitching		23348	58370	87555	12500	36000	0.05	40.6×10e6	45.7× 10e6
HJR08	Horizontal		24500	61250	91875	18000	32000	0.05	50.7×10e6	60．5× 10e6
HJR08	Pitching		25200	63000	94500	14000	54000	0.05	50.7×10e6	60．5× 10e6
