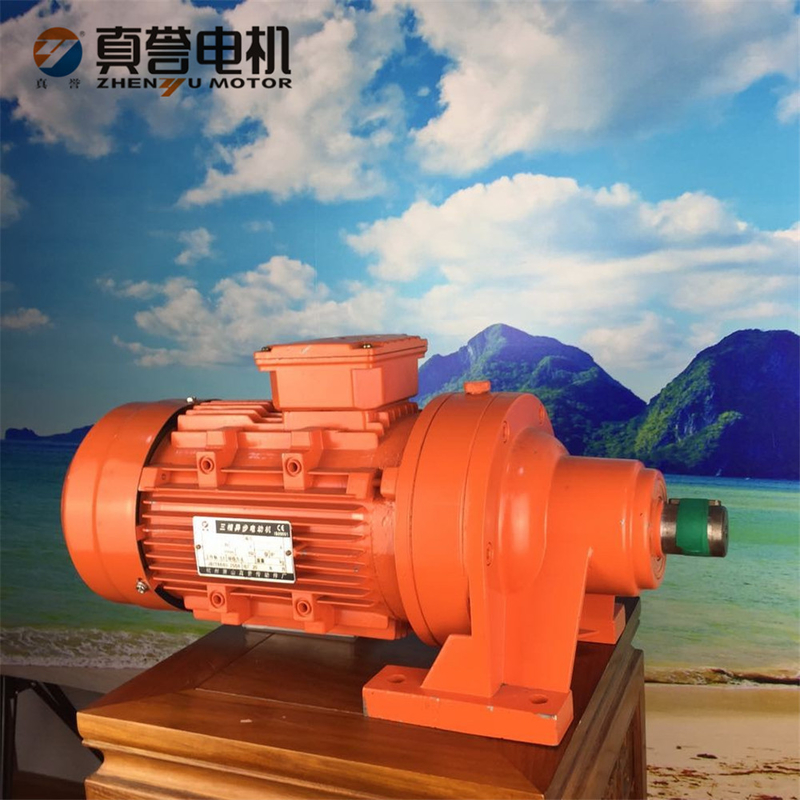

Smooth and stable Cycloidal Gear Reducer small volume 90kw , Cast iron gearbox

Smooth and stable Cycloidal Gear Reducer small volume 90kw , Cast iron gearbox

Cycloidal-Pin Gear Speed Reducer:

1. High speed ratio and efficiency
2. Single stage transmission can reach to 1: 87 of speed-down ratio and the efficiency is more than 90%. If use multi-speed drive the speed-down ratio is bigger.
3. Compact Being adapted epicyclic transmission principle, the input and output shaft are at same axis center, it is compact.
4. Smooth and stable run and low noise
The cycloidal pinwheel has more meshed teeth, the overlapping coefficient id big and the machine part is stable, the vibration and noise is limited at the minimum content.
5. Reliable in operation and long life
Because the main parts are made of bearing steel through quenching treatmentHRC58-62, it got high strength. Meanwhile the transmission contact of part adapts rolling friction, so it is durable and long life.

Range of Ratio for Single Stage:
11, 17, 23, 29, 35, 43, 59, 71, 87

Range of Ratio for Multi-Speed Drive:
121, 187, 289, 391, 473, 595, 731, 841, 1003, 1225, 1505, 1849, 2065, 2537, 3481, 4189, 5133, 7569

Cyclodal reducer, cycloid gear reducer, cycloid speed reducer:

1. High speed ratio and high efficiency;

2. Compact structure and small volume;

3. A small moment of inertia;

4. Available as geared units and geared motors;

5. Ideal for operating under difficult conditions;

6. Long service life and low noise.

Technical data:

Torque: top to 22920N.m

Output speed: 0.011-161r/min

Power: 0.25-90kw
