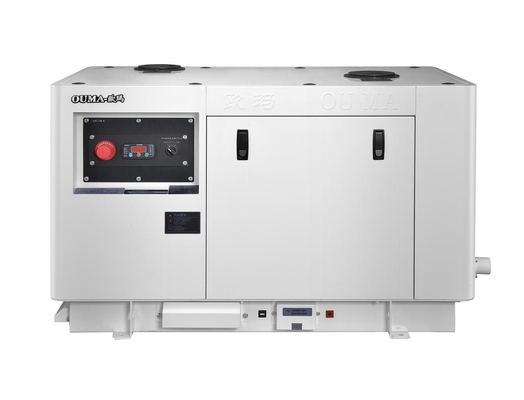

Water Cooled OUMA 6KW / 6KVA Marine Diesel Generator with 12m Cable Remote Control

Large Image : Water Cooled OUMA 6KW / 6KVA Marine Diesel Generator with 12m Cable Remote Control Get Best Price

Product Details:

Place of Origin:	Wuxi,Jiangsu,China
Brand Name:	OUMA
Certification:	ISO,CE
Model Number:	OM6CYZ

Payment & Shipping Terms:

Minimum Order Quantity:	5 units
Price:	To be negotiated
Packaging Details:	Plastic film and veneer case
Delivery Time:	15 working days
Payment Terms:	T/T or L/C at sight
Supply Ability:	50 units / day

Contact Now

Detailed Product Description

High Light:

portable marine generator

3 phase diesel generator

Water Cooled OUMA 6KW Marine Diesel Generator with 12m cable Remote Control

Quick Detail:

Single phase Marine Generator.
6KW/ 50Hz, 9KW/ 60Hz. Single or dual AC voltage
Three cylinder, 10kw/1500rpm, 12kw/1800rpm 1.2L diesel engine powered.
None fuel tank installed.

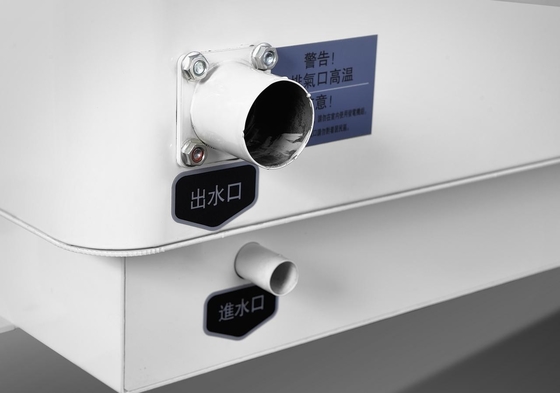

External cycling sea water or river water cooling.
Sea water pump.
Equipped with 9L heat exchanger.

Description:

Small overal dimension, lightweighed, quick and easy installation and connection.

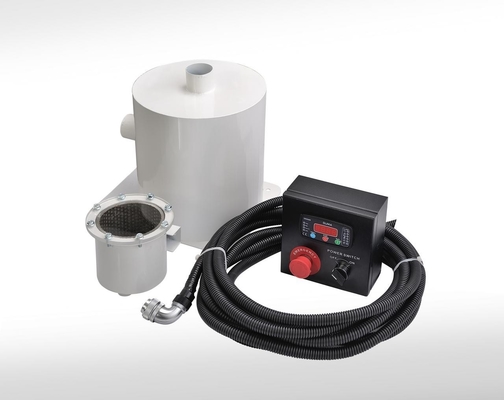

Remote control panel can be built in the driving cabinet for remot control.
Low noise running, leaving the boat a silent place.
Reliable and durable mechanical governing.
Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm.

Applications:

Nominated supplier and over 50% market share in China in fields of excursion boats, yachts, China Marine Bureau, China Fishery Administration, etc.

Specifications:

Generator Set	Model	OM6CYZ
	Brand	OUMA
	Rated power(KW)	6 9
	Rated voltage(V)	115/230 120/240
	Rated current(A)	52.1/26 75/37.5
	Rated frequency(Hz)	50 60
	Waveform distortion	Sinewave, distortion ≤5%
	Noise level(dB@7m)	62
	Battery(12V-Ah)	None
	Overall dimension (L×W×H)(mm)	≤ 1070x680x750
	Overall weight(kg)	≤480
	Fuel tank capacity(L)	None
Diesel Engine	Model	OM385
	Brand	OUMA
	Power output(KW)	10 12
	Type	Three cylinder, direct injection, four stroke
	Displacement(L)	1.2
	Bore×Stroke(mm)	85×95
	Rotation speed(r/m)	1500 1800
	Governor system	Mechanical
	Starting mode	12V DC
	Filter system	Dry air filter, fuel filter, oil filter
	Cooling type	External cycling sea water or river water
	Exhaust muffler	Water cooled
	Heat exchanger(L)	9
	Sea water pump suction(M)	1
	Sea water filter	Available
	Fuel consumption(g/kw.h)	≤220
	Oil capacity(L)	8.3
Alternator	Model	OM164CZ
	Brand	OUMA
	Rated power(KW)	8.5 10
	Excitation mode	Brushless, self-excitation
	Voltage regulation	Auto regulation
	Number of phase	Single phase,three wire
	Number of pole	4
	Rotation speed(R/M)	1500 1800
	Temperature rise(℃)	125
	Insulation grade(stator/rotor)	H/H
	Voltage regulation range w/o load	≥95%～105%
	Steady-state voltage deviation	Less ±1%
	Interference factor	TIF＜50,THF＜2%
	IP grade	IP22
Control panel	Model	OM588
	Manufacturer	OUMA
	Power output	Terminal post
	Installation	In-built and remote cable connected
	Remote conrol w/ cable(M)	12
	Manufacturer	OUMA
	Auto function	Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm
	Parameter display	AC voltage, frequency, running hour, charging voltage

Competitive Advantage:

Powerful engine, high efficent brushless alternator.
Corrosion-resistant cover of assembling bolts.
2.0mm cold-rolled steel housing, rigid and corrosion resistant
Above 50% market share in marine industry in China.
Smallest size and most compact structure, maximum loading and installation space.
ISO and CE certificated.
15 months or 1200 running hours warranty, whichever comes first.
Competitive price and fast delivery within 20 working days
