10KW 50Hz / 12KW 60Hz Durable Marine Diesel Generator by 4 Cylinder Diesel Engine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | portable marine generator,single phase diesel generator |
||
|---|---|---|---|

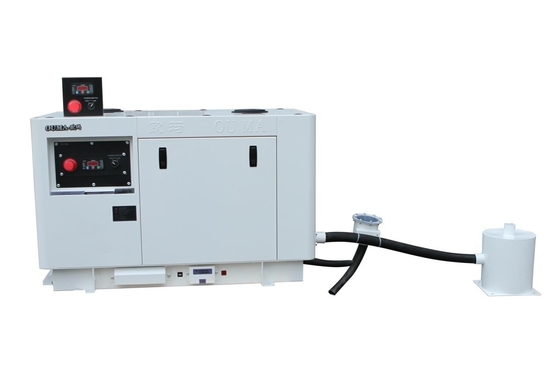

Durable and Portable Marine Diesel Generator 10KW 50Hz / 12KW 60Hz 4 Cylinder Diesel Engine
Quick Detail:
| Product name: |
Marine Diesel Generator
|
Brand Name: |
OUMA
|
Model Number: |
OM10CYZ3
|
| Output Type: |
AC Three Phase |
Speed: |
1500RPM
|
Frequency: |
50HZ,60hz
|
| Rated Power: |
10KW-12KW
|
Rated Voltage: |
400V/230V 416V/240V
|
Rated Current: |
18A - 20.8A
|
Description:
- 6-25kW powered by first top Chinese engine OUMA FAWDE or international brand Kubota.
- Patent design of housing with perfect aesthetic,cooling and noise reduction effect.
- Unique noise reduction technology, noise of silent gensets is within 62dBa.
- Standard configuration of sea water filter, water-cooled silencer, wire remote controller, heat exchanger, sea water pump.
- External cooling of engine by sea water or river water.
- 60℃ radiator is used on all gensets so they can be used in all weather conditions
- 2.0mm cold-rolled steel for the genset canopy, rigid and corrosion resistant. Painting is by electrostatic spraying, no color difference or fading within 5 years.
- Sinewave output with distortion ≤5%; Brushless self-excited alternator with auto voltage regulation, H insulation grate, 125℃ temperature rise, less ±1% steady-state voltage fluctuation, TIF＜50, THF＜2%, IP22.
- Complete display of main parameters and protections on the control panel.
Specifications:
| Generator Set | Model | OM10CYZ3 |
| Brand | OUMA | |
| Rated power(KW) | 10 12 | |
| Rated voltage(V) | 400/230 416/240 | |
| Rated current(A) | 18 20.8 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) | 62 | |
| Battery(12V-Ah) | None | |
| Overall dimension (L×W×H)(mm) |
≤1232x680x750 | |
| Overall weight(kg) | ≤480 | |
| Fuel tank capacity(L) | None | |
| Diesel Engine | Model | OM488 |
| Brand | OUMA | |
| Power output(KW) | 15 17.6 | |
| Type | 4 cylinder, direct injection, four stroke | |
| Displacement(L) | 1.5 | |
| Bore×Stroke(mm) | 88×95 | |
| Rotation speed(r/m) | 1500 1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC | |
| Filter system | Dry air filter, fuel filter, oil filter | |
| Cooling type | External cycling sea water or river water | |
| Exhaust muffler | Water cooled | |
| Heat exchanger(L) | 9 | |
| Sea water pump suction(M) | 1 | |
| Sea water filter | Available | |
| Fuel consumption(g/kw.h) | ≤220 | |
| Oil capacity(L) | 8.3 | |
| Alternator | Model | OM164CZ3 |
| Brand | OUMA | |
| Rated power(KW) | 10 12 | |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Three phase,four wire | |
| Number of pole | 4 | |
| Rotation speed(R/M) | 1500 1800 | |
| Temperature rise(℃) | 125 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%～105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF＜50,THF＜2% | |
| IP grade | IP22 | |
| Control panel | Model | OM588 |
| Manufacturer | OUMA | |
| Power output | Terminal post | |
| Installation | In-built and remote cable connected | |
| Remote conrol w/ cable(M) | 12 | |
| Manufacturer | OUMA | |
| Auto function |
Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm |
|
| Parameter display |
AC voltage, frequency, running hour, |
Competitive Advantage:
- Easy installation and connection.
- Low noise running within 62dBA at 7meters.
- Stable and reliable output.
- Removable service doors.
- Smallest size compared with counterparts of the same capacity.
- Compact and attractive aesthetic outlooking.
- ISO and CE certificated.
