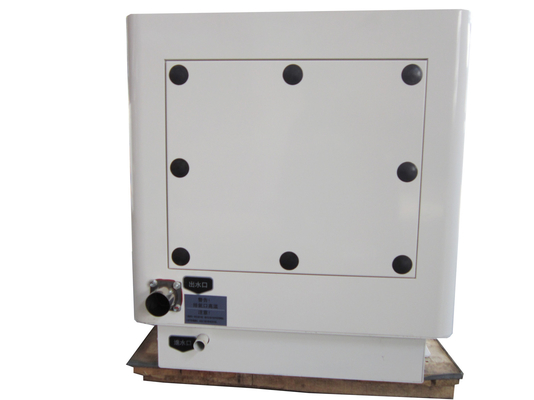

Durable Quiet Marine Diesel Generator for Fish Boats and Marine Offshore 20KW - 24KW

Large Image : Durable Quiet Marine Diesel Generator for Fish Boats and Marine Offshore 20KW - 24KW Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	OUMA
Certification:	ISO,CE
Model Number:	OM20CYZ3

Payment & Shipping Terms:

Minimum Order Quantity:	5 units
Price:	To be negotiated
Packaging Details:	Plastic film and veneer case
Delivery Time:	15 working days
Payment Terms:	T/T or L/C at sight
Supply Ability:	50 units / day

Contact Now

Detailed Product Description

High Light:

portable marine generator

single phase diesel generator

Durable Quiet Marine Diesel Generator for Fish Boats and Marine Offshore 20KW - 24KW

Quick Detail:

Product Name:	Marine Diesel Generator	Brand Name:	OUMA	Model Number:	OM20CYZ3
Output Type:	AC Three Phase	Speed:	1500RPM	Frequency:	50Hz
Rated Power:	20KW - 24KW	Rated Voltage:	400V/230V 416V/240V	Rated Current:	36A - 41.6A

Description:

Excellent power rating 20KW generators with Chinese first top FAWDE engine. This engine manufacturer is engine supplier of China First Auto Works who are producing popular automobile models such as Auti.

This generator is standard configured with sea water filter, water-cooled silencer, wire remote controller, heat exchanger, sea water pump, which ensure its smooth and reliable operation in the boat or ship.

The features of sinewave output, little vibration, low noise and low emission run all the electric applicances in the boat/ship without worrying of possible damages.

Specifications:

Generator Set	Model	OM20CYZ3
	Brand	OUMA
	Rated power(KW)	20 24
	Rated voltage(V)	400/230 416/240
	Rated current(A)	36 41.6
	Rated frequency(Hz)	50 60
	Waveform distortion	Sinewave, distortion ≤5%
	Noise level(dB@7m)	62
	Battery(12V-Ah)	None
	Overall dimension (L×W×H)(mm)	≤ 1430x700x800
	Overall weight(kg)	≤690
	Fuel tank capacity(L)	None

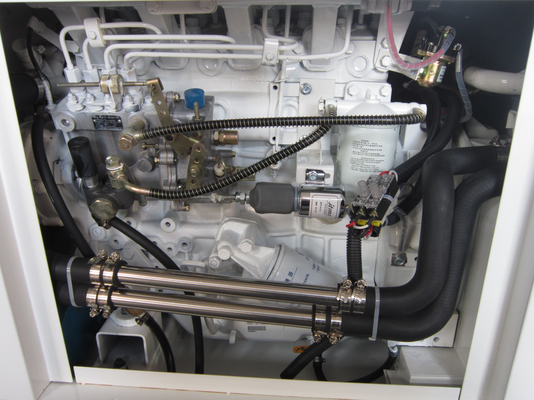

Diesel Engine	Model	OM495
	Brand	OUMA
	Power output(KW)	25 30
	Type	4 cylinder, direct injection, four stroke
	Displacement(L)	2.6
	Bore×Stroke(mm)	95×95
	Rotation speed(r/m)	1500 1800
	Governor system	Mechanical
	Starting mode	12V DC
	Filter system	Dry air filter, fuel filter, oil filter
	Cooling type	External cycling sea water or river water
	Exhaust muffler	Water cooled
	Heat exchanger(L)	9
	Sea water pump suction(M)	1
	Sea water filter	Available
	Fuel consumption(g/kw.h)	≤220
	Oil capacity(L)	8.3
Alternator	Model	OM184CZ3
	Brand	OUMA
	Rated power(KW)	20 24
	Excitation mode	Brushless, self-excitation
	Voltage regulation	Auto regulation
	Number of phase	Three phase,four wire
	Number of pole	4
	Rotation speed(R/M)	1500 1800
	Temperature rise(℃)	125
	Insulation grade(stator/rotor)	H/H
	Voltage regulation range w/o load	≥95%～105%
	Steady-state voltage deviation	Less ±1%
	Interference factor	TIF＜50,THF＜2%
	IP grade	IP22
Control panel	Model	OM588
	Manufacturer	OUMA
	Power output	Terminal post
	Installation	In-built and remote cable connected
	Remote conrol w/ cable(M)	12
	Manufacturer	OUMA
	Auto function	Manual/auto protection/shutdown, water temperature alarm,oil pressure alarm
	Parameter display	AC voltage, frequency, running hour, charging voltage

Competitive Advantage:

Easy installation and connection.
Low noise running within 62dBA at 7meters.
Stable and reliable output.
Removable service doors.
Smallest size compared with counterparts of the same capacity.
Compact and attractive aesthetic outlooking.
2.0mm cold-rolled steel genset canopy: rigid and corrosion resistant.

Advanced painting and finishing, no painting colour fade within 5 years.
15 months or 1200 running hours warranty, whichever comes first.
